PRT® (S-7200)

A wrap-around heat shrink made from MIL-SPEC tubing and a non-magnetic EMI shielding cloth adhered on the inside to protect against EMI, RFI, and EMF.

Drawing Number(s): ZT14-04-005

PRT® (S-7200)
RoHS Military Grade

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT14-04-005-0-B-X600.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

PRT® (S-7200)
  • Abrasion, chemical, and fluid resistant tubing
  • Heat shrink material meets military specification SAE-AMS-DTL-23053/5
  • EMI shielding cloth is halogen free and hypoallergenic

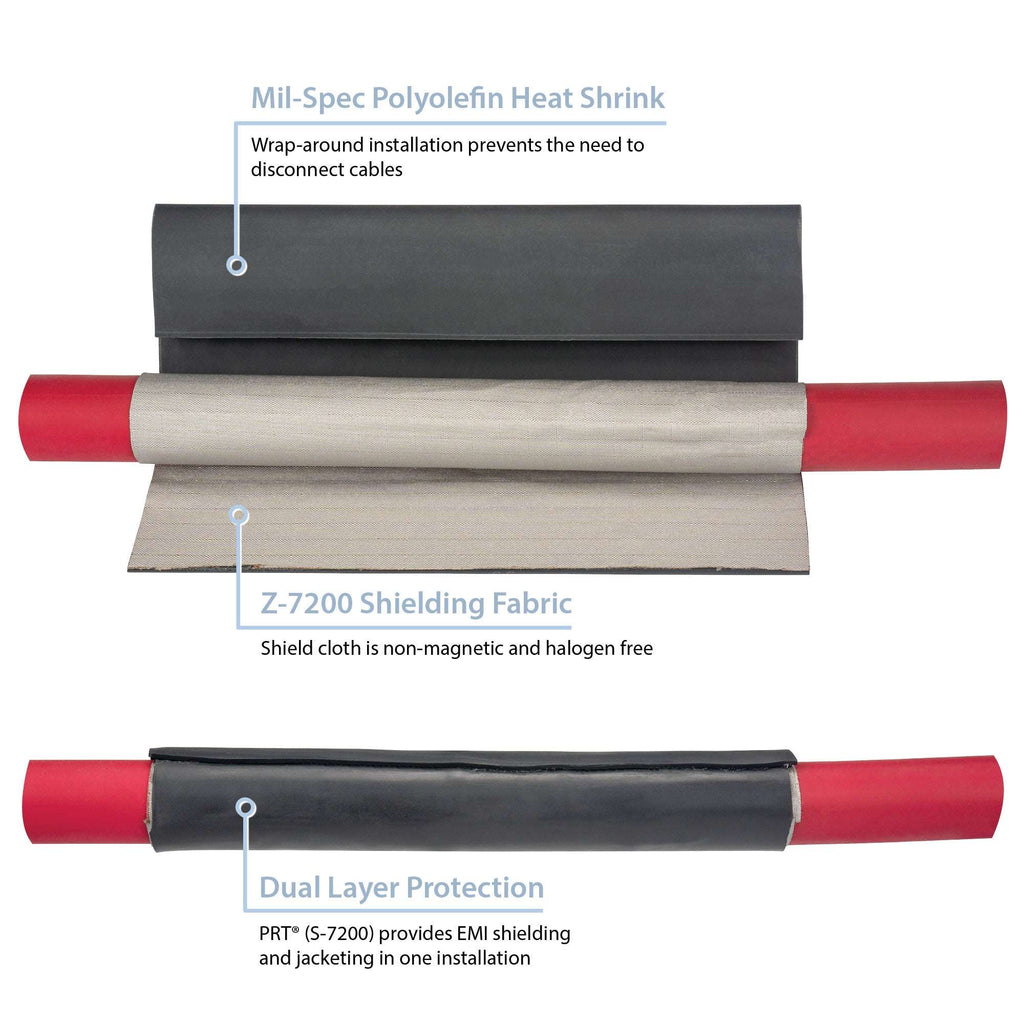

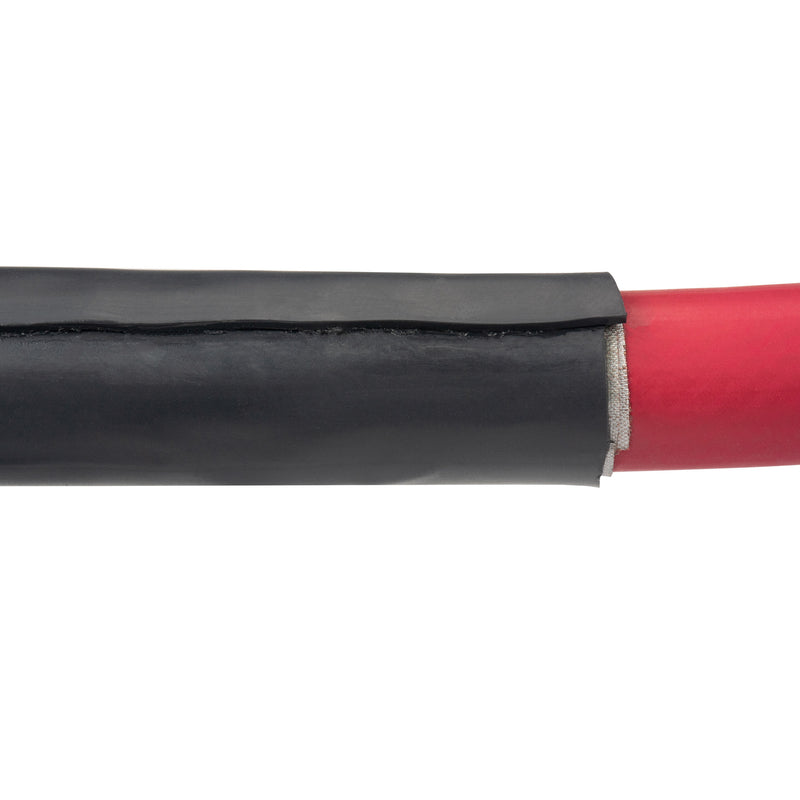

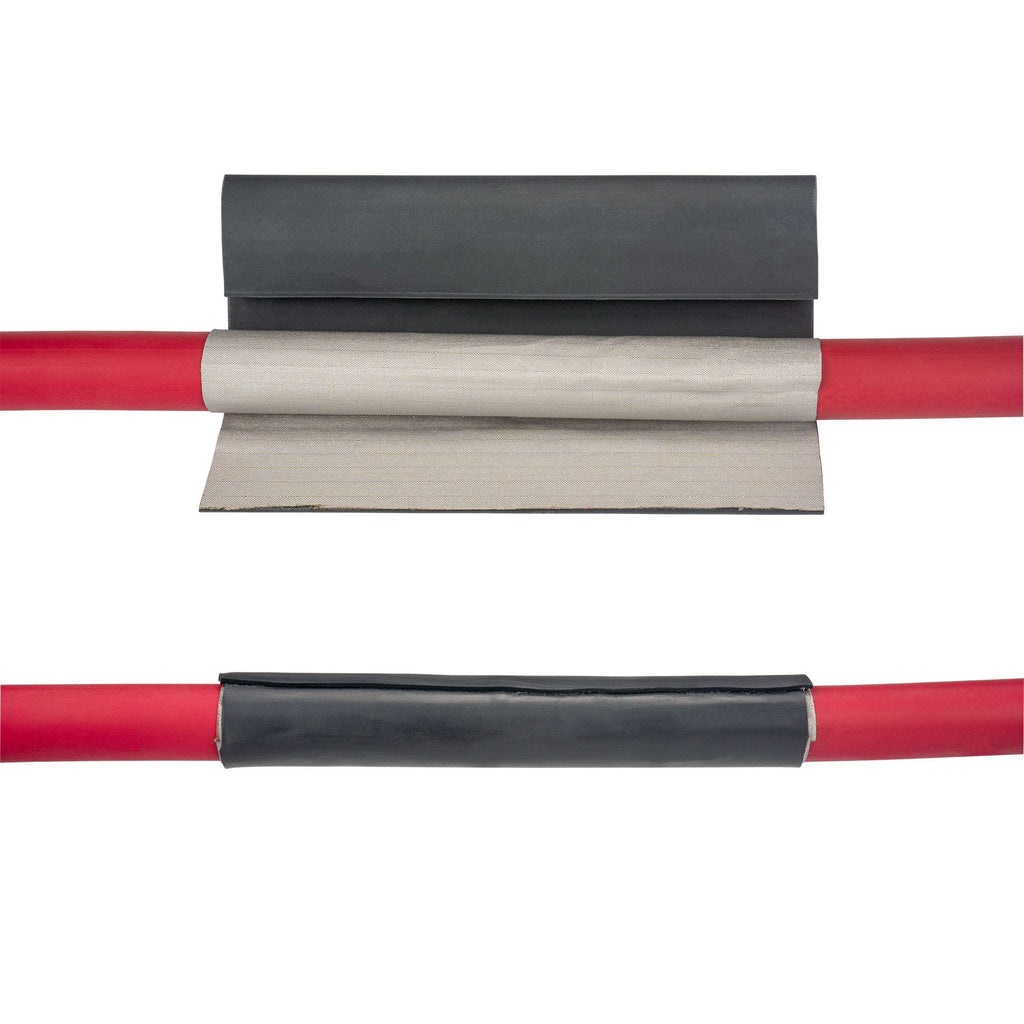

PRT® (S-7200) is a wrap-around, MIL-SPEC polyolefin heat shrink tubing paired with our Z-7200 shielding cloth. The heat shrink is flame retardant, abrasion resistant, chemical resistant and fluid resistant, including resistance to jet fuel and Skydrol. The polyolefin tubing is RoHS compliant and UL-rated for flammability, meeting UL224, VW-1.

The Z-7200 shielding cloth is a nylon rip-stop fabric plated with copper and a proprietary corrosion and fray-resistant coating. The cloth is nickel free, halogen free, and hypoallergenic. The 7200 shielding cloth also has the unique quality of being non-magnetic. Thus, making PRT® (S-7200) the perfect choice for applications dealing with sensitive magnetic instrumentation. The 7200 shielding cloth will outlast harsh conditions; it will not flake or rub off overtime.

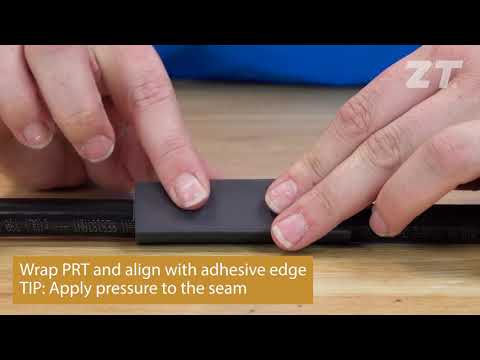

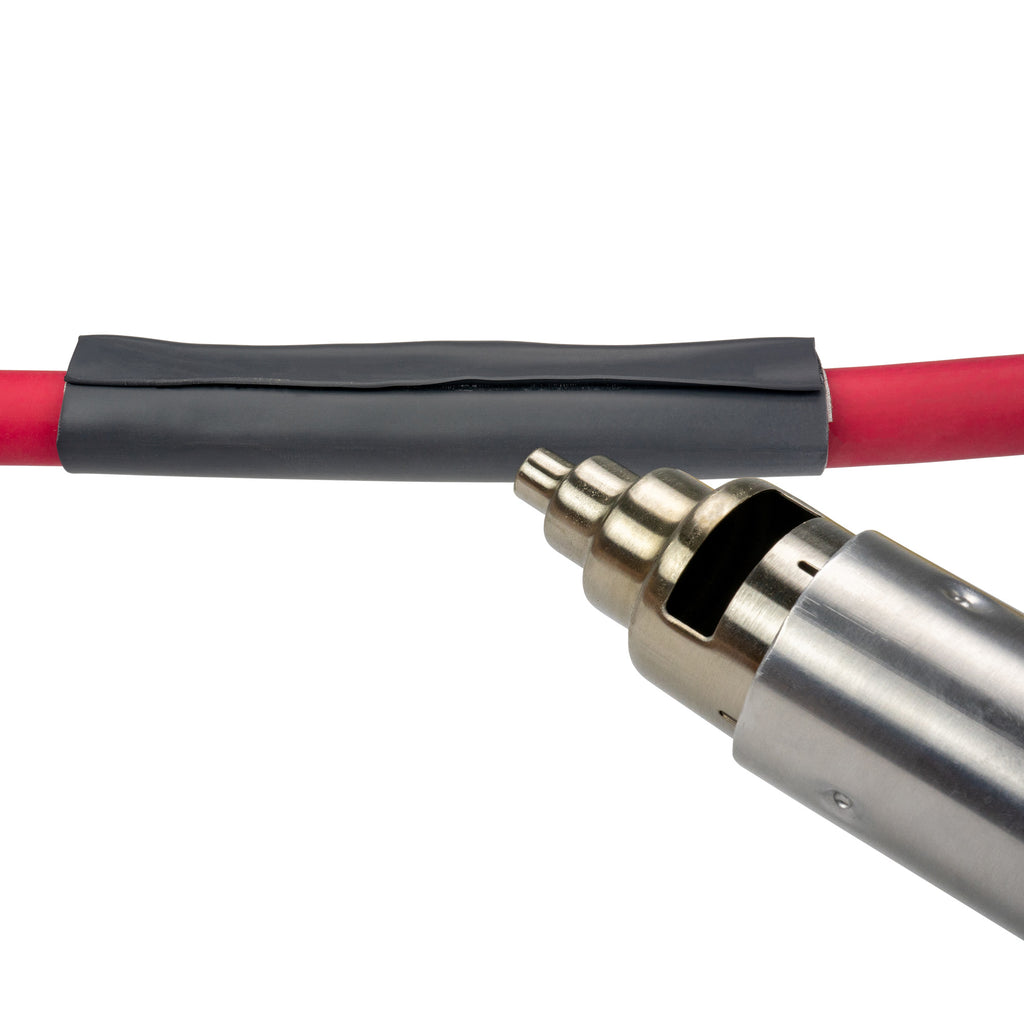

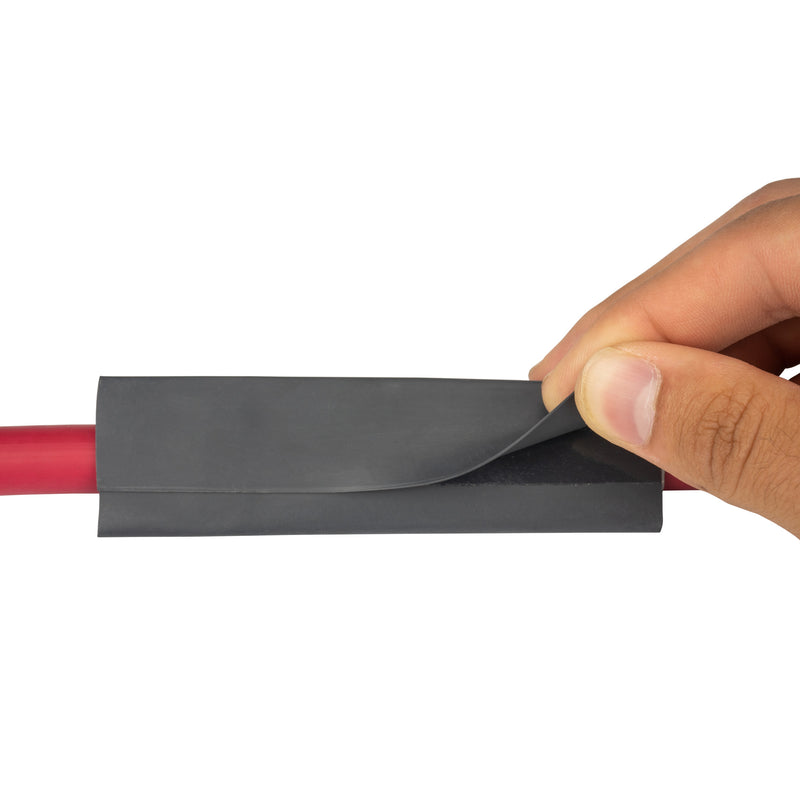

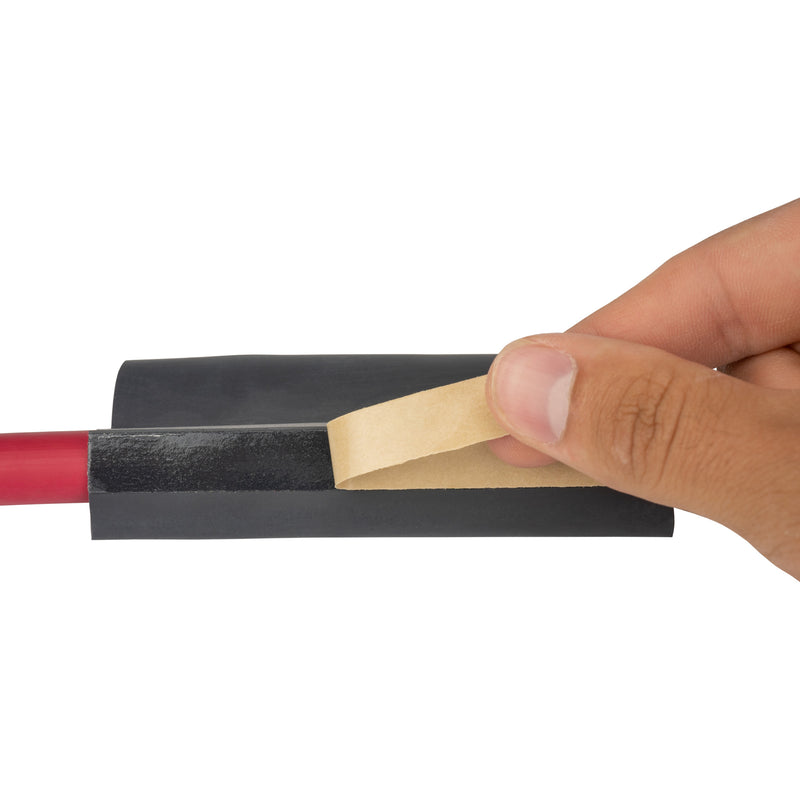

PRT® (S-7200) can be cut to any desired length for versatility in applications. PRT® (S-7200) also only requires a standard heat gun for installation. PRT® (S-7200) is perfect for any industry, including the automotive, military, and aerospace industries due to the high temperature range, resistance to abrasion, chemicals and fluids, and exceptional EMI shielding performance.

PRT® (S-7200) is offered in size ranges for diameters from 0.09” to 1.87”, as well as custom diameters upon request. The operational temperature range is -67°F to 275°F (-55°C to 135°C).

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Product Data

Diameter - After Shrink
0.090" - 0.124" (#0) 0.38" - 0.49" (#4) 0.88" - 0.99" (#8) 1.38" - 1.49" (#12)
0.125" - 0.187" (#1) 0.50" - 0.62" (#5) 1.0" - 1.12" (#9) 1.50" - 1.62" (#13)
0.188" - 0.249" (#2) 0.63" - 0.74" (#6) 1.13" - 1.24" (#10) 1.63" - 1.74" (#14)
0.25" - 0.37" (#3) 0.75" - 0.87" (#7) 1.25" - 1.37" (#11) 1.75" - 1.87" (#15)

Specifications

Overall Performance

  • Cable Diameter After Shrinkage: 0.090" - 0.124" (#0)
  • Closure: Tape (Specialty Surface)
  • Material: Polyolefin
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shielding: Z-7200
  • Shielding Material: Copper Plated
  • Shrink Ratio: 2:1

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35 (max.)
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)

  • Shear Strength: >200 grams @ 200 C (1/2" overlap)
  • REACH: Compliant
  • Release Liner: Polycoated Paper Liner
  • Humidity Resistance: Excellent
  • Adhesion: 140 oz-in. (to steel) 136 oz-in. (to Polyproylene)
  • Chemical Resistance: Good
  • Flame Retardant: Fire Retardant
  • Material: Acrylic
  • Thickness: 0.005"
  • Maximum Operating Temperature: 199°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded

Z-7200

  • Ratings: Commercial
  • Coating: Copper Plated
  • Break Strength: 25 x 50 lbs/in
  • REACH: Compliant
  • Chemical Resistance: Good
  • Dielectric Volts/Mil: Conductive <0.1 ohm/sq
  • Material: Cloth
  • Thickness: 0.005"
  • Material: Copper-Plated Nylon Rip-Stop
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shielding: Z-7200

No Ground

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
