PRT® (Clear) Military-Grade Wrap-Around Heat Shrink

A clear, military-grade, wrap-around heat shrink ideal for applications that need a durable repair and the ability to see through to the wire labels.

Drawing Number(s): ZT05-04-004

PRT® (Clear) Military-Grade Wrap-Around Heat Shrink
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT05-04-004-3-C-X600.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

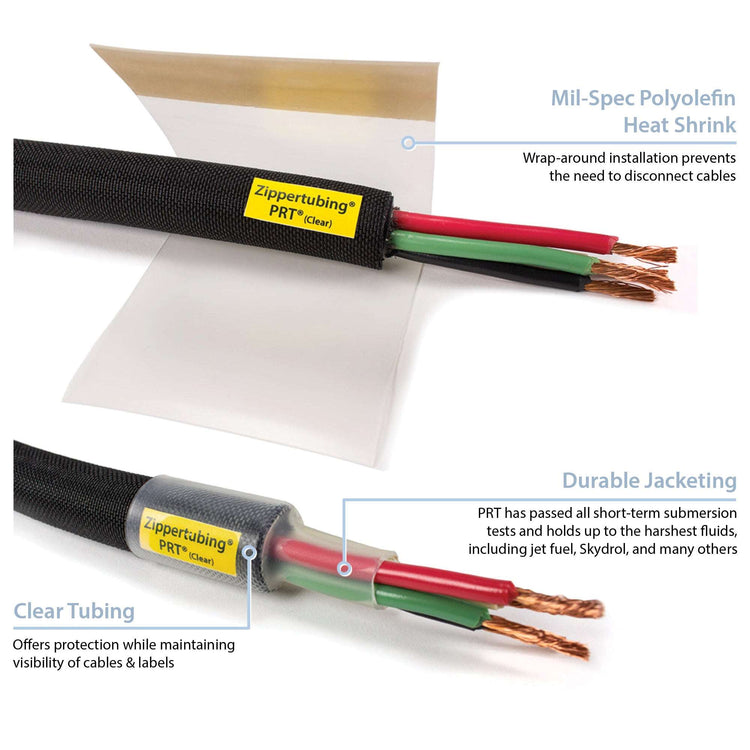

PRT (Clear) Infographic
  • Abrasion-resistant, fluid-resistant, and fungus-resistant polyolefin
  • Offers superior component repair or a secondary insulation jacket
  • Wrap-around heat shrink allows for installation without disconnection or disassembly

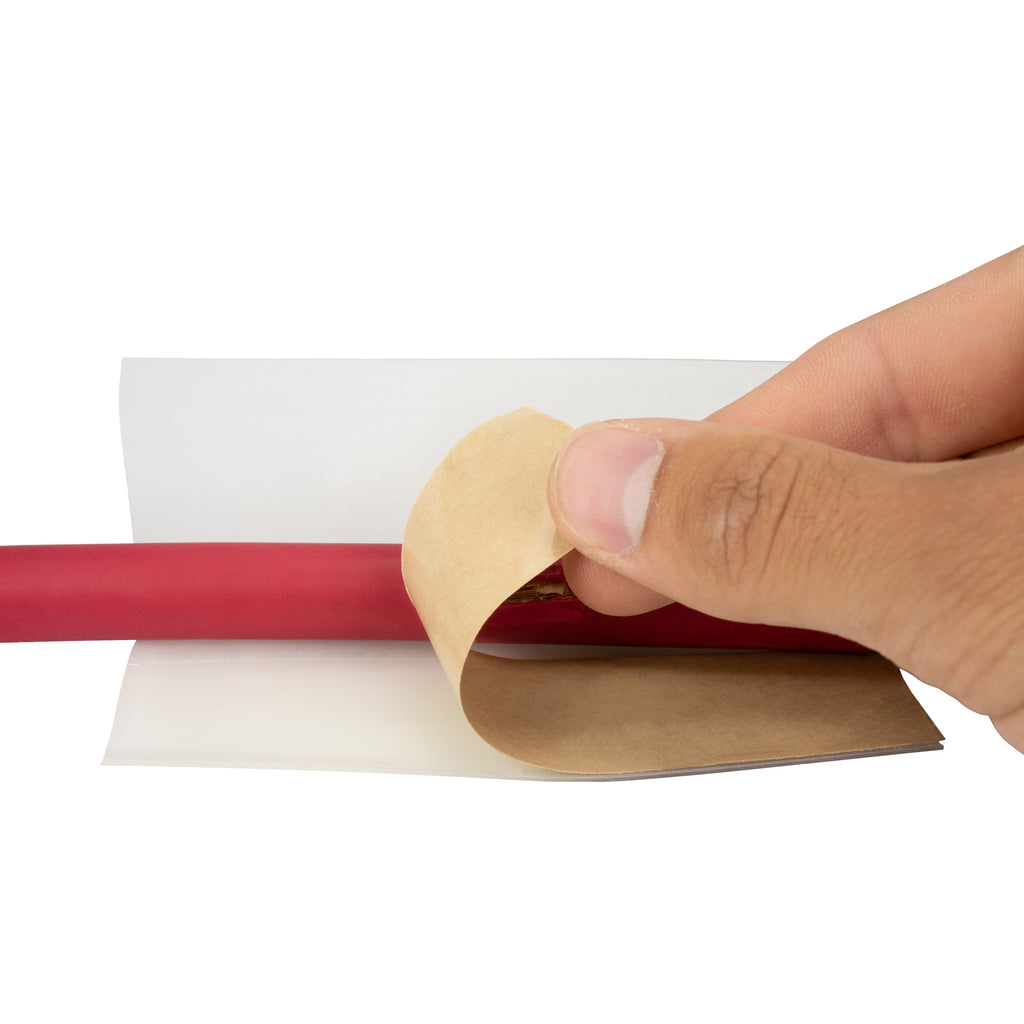

PRT® (Clear) is a clear, wrap-around heat shrink ideal for repairs and adding secondary insulation to wires or cables. The polyolefin heat shrink has a 2:1 shrink ratio, and meets specification MIL-DTL-23053/5C, as well as being abrasion resistant and fungus resistant. Additionally, PRT® (Clear) is resistant to the harshest fluids, including jet fuel and Skydrol. The adhesive is a clear acrylic-based transfer adhesive with a high-bond strength. The adhesive is equipped with a paper release liner for quick and clean installation.

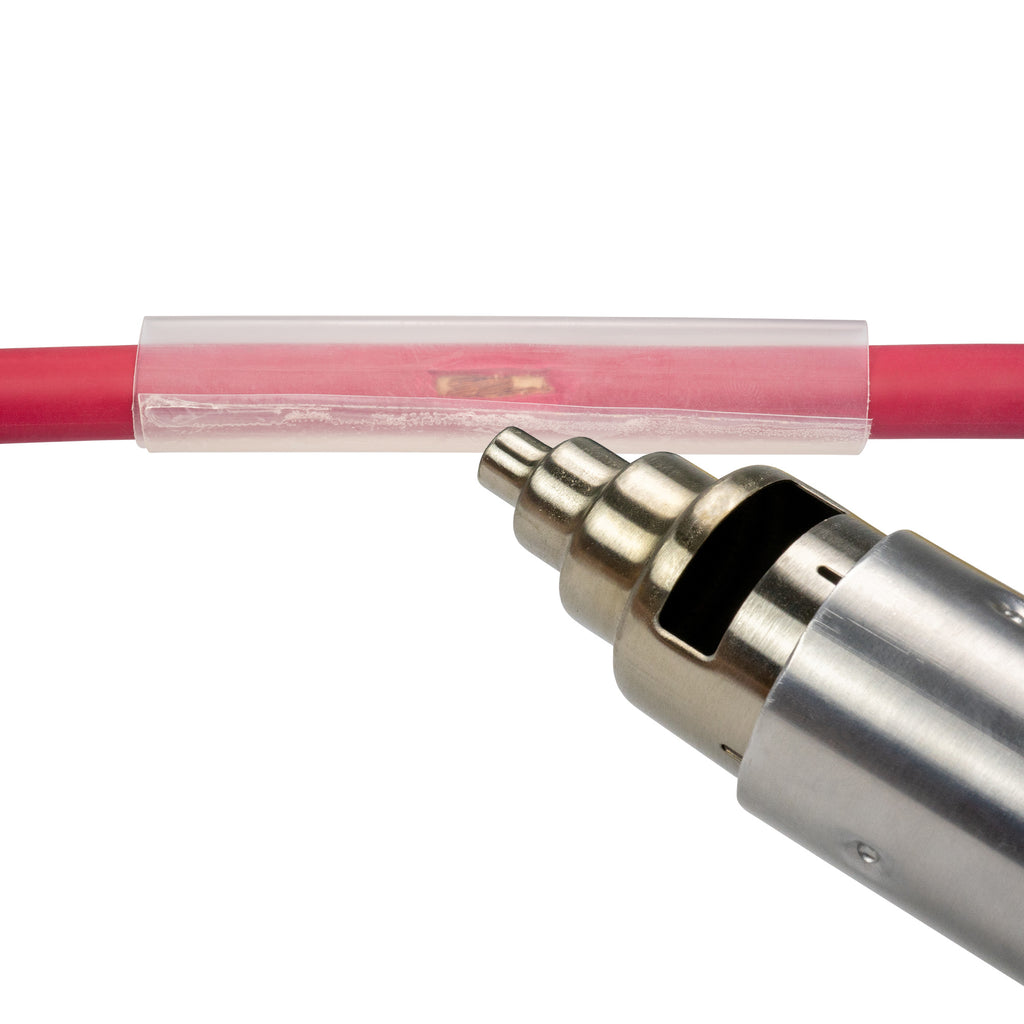

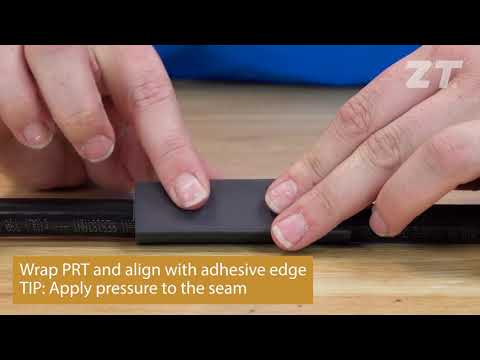

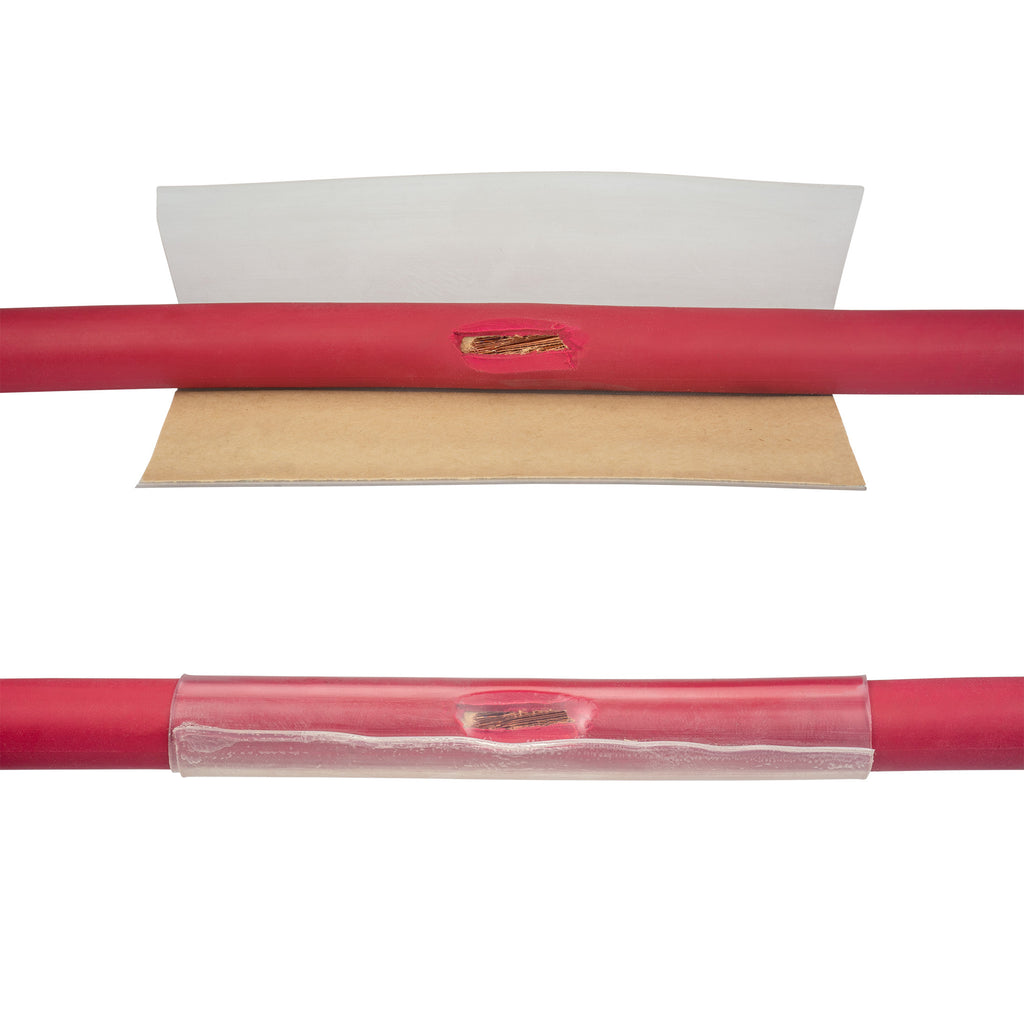

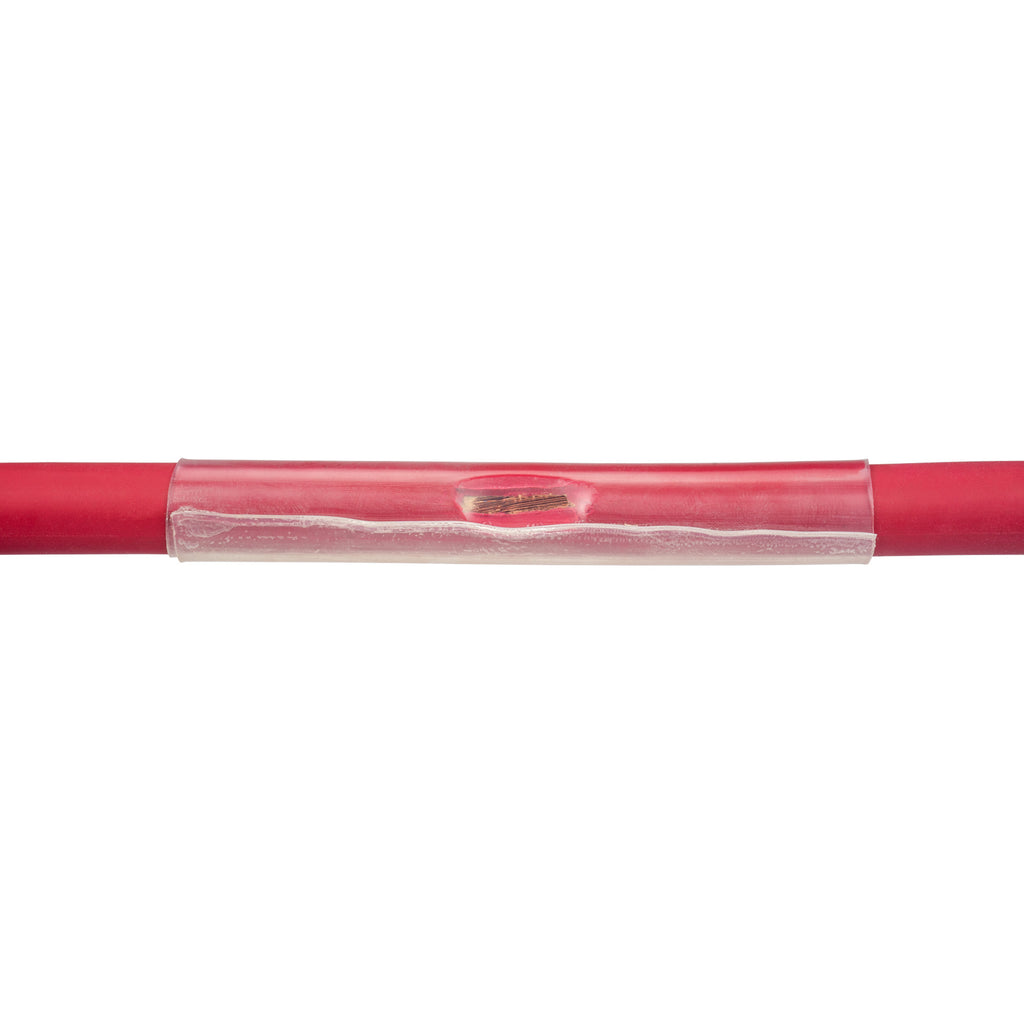

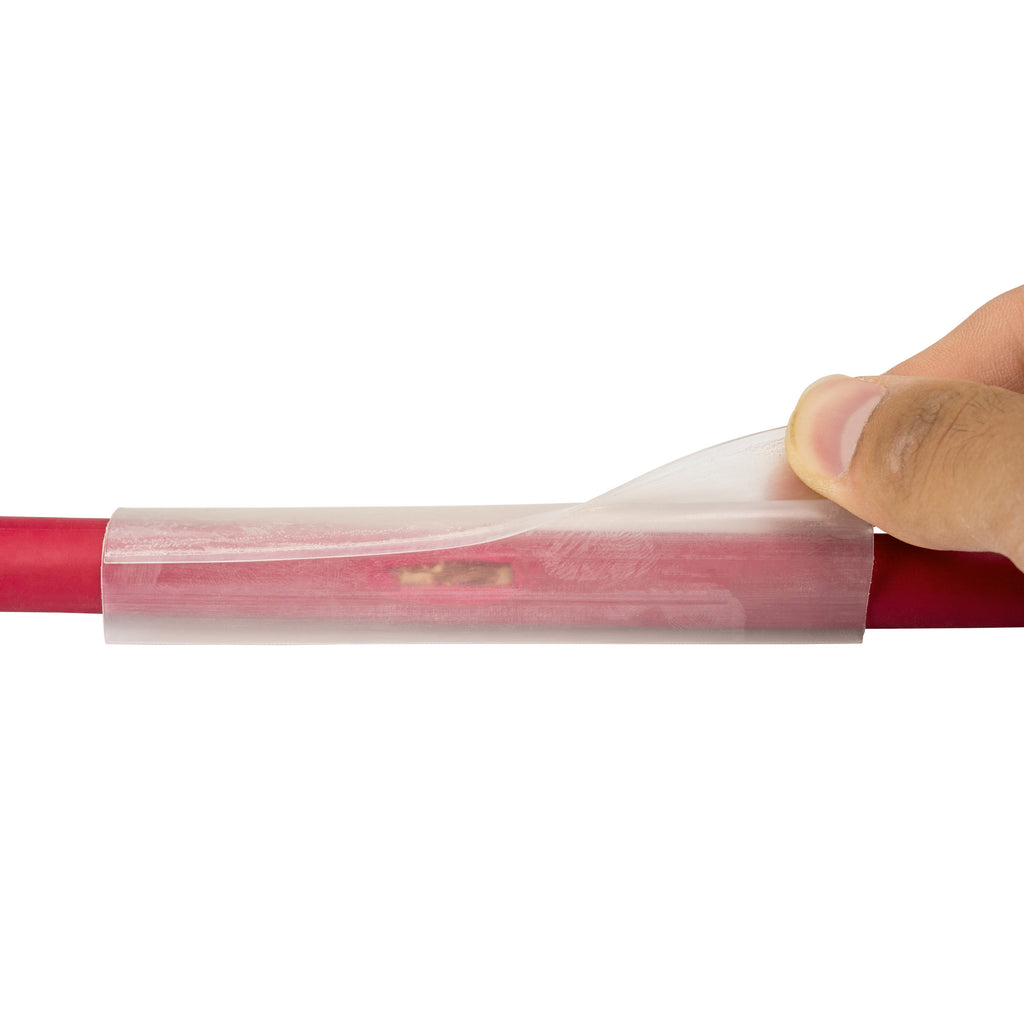

If your application calls for different lengths, PRT® (Clear) can be easily cut for versatility in uses. Because of the wrap-around construction, installing PRT® (Clear) can be done without needing to disconnect or re-wire components. Simply wrap PRT® (Clear) around the damaged area of the wire, or where additional insulation is desired, and heat evenly with a standard heat gun.

PRT® (Clear) is offered in 13 diameter ranges, for wires as small as 0.25” to as large as 1.87”, with custom sizes available upon request. The operational temperature range is -67°F to 275°F (-55°C to 135°C).

Diameter - After Shrink
0.25" - 0.37" (#3) 0.75" - 0.87" (#7) 1.25" - 1.37" (#11) 1.75" - 1.87" (#15)
0.38" - 0.49" (#4) 0.88" - 0.99" (#8) 1.38" - 1.49" (#12)
0.50" - 0.62" (#5) 1.0" - 1.12" (#9) 1.50" - 1.62" (#13)
0.63" - 0.74" (#6) 1.13" - 1.24" (#10) 1.63" - 1.74" (#14)

Overall Performance

  • Cable Diameter After Shrinkage: 1.13" - 1.24" (#10)
  • Closure: Tape (Specialty Surface)
  • Material: Polyolefin
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shrink Ratio: 2:1

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing  Shrink-N-Repair® (M) Wrap-Around Heat Shrink  PRT® (ES-135) Water-Blocking Wrap-Around Heat Shrink
    NAME PRT® MIL-SPEC WRAP-AROUND HEAT SHRINK TUBING  SHRINK-N-REPAIR® (M) WRAP-AROUND HEAT SHRINK  PRT® (ES-135) WATER-BLOCKING WRAP-AROUND HEAT SHRINK
    DESCRIPTION A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals.  A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs wires or cables with diameters up to 0.5”.  A wrap-around, military-grade heat shrink paired with a high-temperature water blocking, hot-melt adhesive that protects against harsh environmental conditions.
    Closure Tape (Specialty Surface)  Tape (Specialty Surface)  Tape (Specialty Surface)
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Best
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Wire Repair  Wire Repair  Water Blocking
    Min Temperature Extreme  Moderate  Extreme
    Minimum Operating Temperature -67°F  -67°F  -67°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 275°F  275°F  275°F
    Flexibility
    View  View  View
    Zippertubing
    PRT (Clear) Infographic

    PRT® (Clear) Military-Grade Wrap-Around Heat Shrink

    A clear, military-grade, wrap-around heat shrink ideal for applications that need a durable repair and the ability to see through to the wire labels.

    Drawing Number(s): ZT05-04-004

    Selected Part Number: ZT05-04-004-3-C-X600.0

  • Abrasion-resistant, fluid-resistant, and fungus-resistant polyolefin
  • Offers superior component repair or a secondary insulation jacket
  • Wrap-around heat shrink allows for installation without disconnection or disassembly
  • Military
    Shrink-N-Repair (Clear)
    Shrink-N-Repair (Clear) Clear Wrap Around Heat Shrink for Cable Repair
    Shrink-N-Repair (Clear) Wrap Around Heat Shrink
    Shrink-N-Repair (Clear) Wrap Around Heat Shrinkable Wire Repair

    Features

  • Can be cut to desired length
  • Paper release liner provides a cleaner installation process
  • Operational temperature range is -67°F to 275°F (-55°C to 135°C)
  • Benefits

  • Clear heat shrink allows for visibility of wire label
  • Resistant to abrasion, fungus, and fluids such as jet fuel and Skydrol
  • No re-wiring needing; just wrap around wire and heat evenly
  • PRT® (Clear) Military-Grade Wrap-Around Heat Shrink

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    PRODUCT DATA

    Diameter - After Shrink
    0.25" - 0.37" (#3) 0.75" - 0.87" (#7) 1.25" - 1.37" (#11) 1.75" - 1.87" (#15)
    0.38" - 0.49" (#4) 0.88" - 0.99" (#8) 1.38" - 1.49" (#12)
    0.50" - 0.62" (#5) 1.0" - 1.12" (#9) 1.50" - 1.62" (#13)
    0.63" - 0.74" (#6) 1.13" - 1.24" (#10) 1.63" - 1.74" (#14)

    PRT® (Clear) Military-Grade Wrap-Around Heat Shrink

    MATERIAL SPECIFICATIONS
