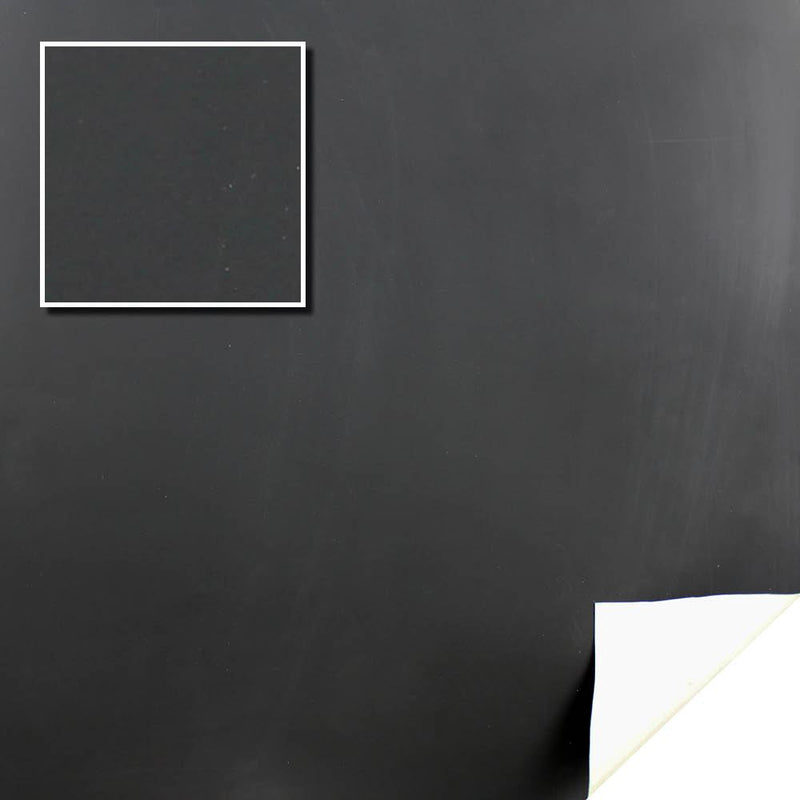

PFR-8235 Polyurethane Film with Adhesive Backing

Polyurethane Film w/ Adhesive backing, 7 Mil

Material Specification: 5001 RoHS Military Grade

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Adhesive backed 7 mil material
  • Lightweight & flexible
  • Great abrasion resistance
  • Can be combined with shielding options

PFR-8235 is a versatile light weight material that has good abrasion resistance and is an extremely flexible, flame retardant polyurethane material that has a soft rubber-like texture. The PFR-8235 is made of 7 mil PFR-18 material backed with adhesive that allows easy lamination of cloth, foil and mesh materials such as our SH1 and Foil Shielding. The PFR-8235 has an operating temperature range of -53°C to +80°C. The material is a good choice for many nuclear, aerospace and military applications where PVC materials are not permitted. PFR-8235 can be cut to any desired widths up to 36". The PFR-8235 is used primarily to produce our ZT-Tape, Shielded-ZT-Tape and the Z-Shield family of products.

Specifications

  • Dielectric Strength: 800 volts/mil
  • Elongation: 636% at break
  • Flame Retardant: UL-510
  • Thickness: 0.007"
  • Maximum Operating Temperature: 250°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months
  • Flexibility: Best
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    PFR-10 Polyurethane Film - 10 Mil PFR-18 Polyurethane Film - 18 Mil FSR-16 Flourinated Synthetic Rubber Film - 16 Mil
    NAME PFR-10 POLYURETHANE FILM - 10 MIL PFR-18 POLYURETHANE FILM - 18 MIL FSR-16 FLOURINATED SYNTHETIC RUBBER FILM - 16 MIL
    DESCRIPTION The most flexible, abrasion-resistant, polyurethane film, 10 Mil Extremely Flexible, Abrasion-Resistant, Polyurethane Film, 18 Mil Viton®, High Performance , Fluorinated Synthetic Rubber Film, 16 Mil
    RoHS RoHS-10 RoHS-10 RoHS-6
    Abrasion Resistance Better
    Min Temperature Extreme Extreme Moderate
    Minimum Operating Temperature -67°F -67°F -20°F
    Max Temperature Moderate Moderate Moderate
    Maximum Operating Temperature 225°F 225°F 392°F
    Flexibility Best
    View View View
    ZT-Zippertubing

    PFR-8235 Polyurethane Film with Adhesive Backing

    Polyurethane Film w/ Adhesive backing, 7 Mil

    Material Sprcification: 5001

    • Adhesive backed 7 mil material
    • Lightweight & flexible
    • Great abrasion resistance
    • Can be combined with shielding options
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Dielectric Strength: 800 volts/mil
  • Elongation: 636% at break
  • Flame Retardant: UL-510
  • Thickness: 0.007"
  • Maximum Operating Temperature: 250°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months
  • Flexibility: Best
  • DESCRIPTION

    PFR-8235 is a versatile light weight material that has good abrasion resistance and is an extremely flexible, flame retardant polyurethane material that has a soft rubber-like texture. The PFR-8235 is made of 7 mil PFR-18 material backed with adhesive that allows easy lamination of cloth, foil and mesh materials such as our SH1 and Foil Shielding. The PFR-8235 has an operating temperature range of -53°C to +80°C. The material is a good choice for many nuclear, aerospace and military applications where PVC materials are not permitted. PFR-8235 can be cut to any desired widths up to 36". The PFR-8235 is used primarily to produce our ZT-Tape, Shielded-ZT-Tape and the Z-Shield family of products.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
