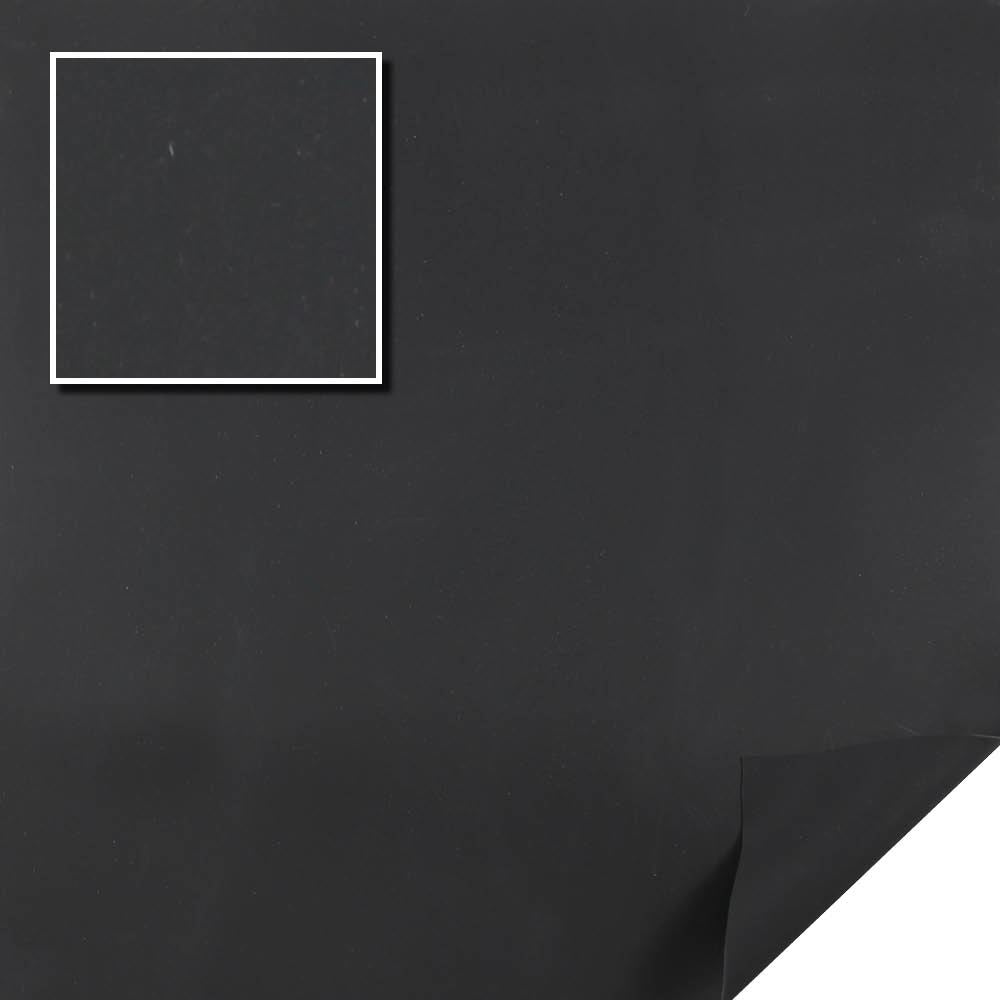

PFR-10 Polyurethane Film - 10 Mil

The most flexible, abrasion-resistant, polyurethane film, 10 Mil

Material Specification: 1005 UL Recognized RoHS Military Grade

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • A flame-retardant jacketing material that is also fungus resistant
  • Excellent in abrasion, environmental, chemical and electrical protection properties
  • Because of its NON-PVC properties is perfect for nuclear, aerospace and military applications

Similar to our very popular PFR-18 jacketing material, PFR-10 offers the same attributes excluding its thickness. This material is .010" thick which provides even more flexibility than the PFR-18 material. PFR-10 is an extremely flexible, flame-retardant polyether urethane material that has a soft rubber-like texture and feel. The material does have some give, which gives it some stretch and perfect for form fit applications. The material is perfect for demanding environments where ruggedness, resistance to abrasion and most fluids is a requirement.

The PFR materials have been utilized in the nuclear, aerospace and military applications for many years because it is a NON-PVC material, and it meets MIL-I-3930/21 specifications. The PFR jacketing materials are polyether based polyurethane films that meet the MIL-C27072, MIL-C-13777 and MIL-I-3930/21 for electrical cable insulation. The materials are fungus resistant per MIL-STD-810, flame retardant to specification UL94 V-O and is not only heat sealable using Zippertubing's RF Welding machine, but can be sewn, attach hook-and-loop, our track closures also using the PFR material, a zipper with pre-installed EMI shielding and so much more!

Specifications

  • Copper Corrosion: Mil-C-27072 & 13777
  • Dielectric Volts/Mil: 5.0 - 6.0
  • Dielectric Strength: 900 volts/mil
  • Elongation: 650%
  • Flammability: UL94 V-0
  • Durometer: Shore A - 85
  • Fungus Resistance: Mil-Std-810, Method 508.3
  • Color: Black
  • Thickness: 0.010"
  • Thickness Variance: +/- .001
  • Maximum Operating Temperature: 225°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Tensile Strength: 4,000 psi.
  • Ozone Resistance: No Cracks
  • Specific Gravity: 1.25
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    PFR-18 Polyurethane Film - 18 Mil PFR-8235 Polyurethane Film with Adhesive Backing FSR-16 Flourinated Synthetic Rubber Film - 16 Mil
    NAME PFR-18 POLYURETHANE FILM - 18 MIL PFR-8235 POLYURETHANE FILM WITH ADHESIVE BACKING FSR-16 FLOURINATED SYNTHETIC RUBBER FILM - 16 MIL
    DESCRIPTION Extremely Flexible, Abrasion-Resistant, Polyurethane Film, 18 Mil Polyurethane Film w/ Adhesive backing, 7 Mil Viton®, High Performance , Fluorinated Synthetic Rubber Film, 16 Mil
    RoHS RoHS-10 RoHS-10 RoHS-6
    Abrasion Resistance Better Better
    Min Temperature Extreme Extreme Moderate
    Minimum Operating Temperature -67°F -65°F -20°F
    Max Temperature Moderate Moderate Moderate
    Maximum Operating Temperature 225°F 250°F 392°F
    Flexibility Best Best
    View View View
    ZT-Zippertubing

    PFR-10 Polyurethane Film - 10 Mil

    The most flexible, abrasion-resistant, polyurethane film, 10 Mil

    Material Sprcification: 1005

    • A flame-retardant jacketing material that is also fungus resistant
    • Excellent in abrasion, environmental, chemical and electrical protection properties
    • Because of its NON-PVC properties is perfect for nuclear, aerospace and military applications
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Copper Corrosion: Mil-C-27072 & 13777
  • Dielectric Volts/Mil: 5.0 - 6.0
  • Dielectric Strength: 900 volts/mil
  • Elongation: 650%
  • Flammability: UL94 V-0
  • Durometer: Shore A - 85
  • Fungus Resistance: Mil-Std-810, Method 508.3
  • Color: Black
  • Thickness: 0.010"
  • Thickness Variance: +/- .001
  • Maximum Operating Temperature: 225°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Tensile Strength: 4,000 psi.
  • Ozone Resistance: No Cracks
  • Specific Gravity: 1.25
  • DESCRIPTION

    Similar to our very popular PFR-18 jacketing material, PFR-10 offers the same attributes excluding its thickness. This material is .010" thick which provides even more flexibility than the PFR-18 material. PFR-10 is an extremely flexible, flame-retardant polyether urethane material that has a soft rubber-like texture and feel. The material does have some give, which gives it some stretch and perfect for form fit applications. The material is perfect for demanding environments where ruggedness, resistance to abrasion and most fluids is a requirement.

    The PFR materials have been utilized in the nuclear, aerospace and military applications for many years because it is a NON-PVC material, and it meets MIL-I-3930/21 specifications. The PFR jacketing materials are polyether based polyurethane films that meet the MIL-C27072, MIL-C-13777 and MIL-I-3930/21 for electrical cable insulation. The materials are fungus resistant per MIL-STD-810, flame retardant to specification UL94 V-O and is not only heat sealable using Zippertubing's RF Welding machine, but can be sewn, attach hook-and-loop, our track closures also using the PFR material, a zipper with pre-installed EMI shielding and so much more!

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
