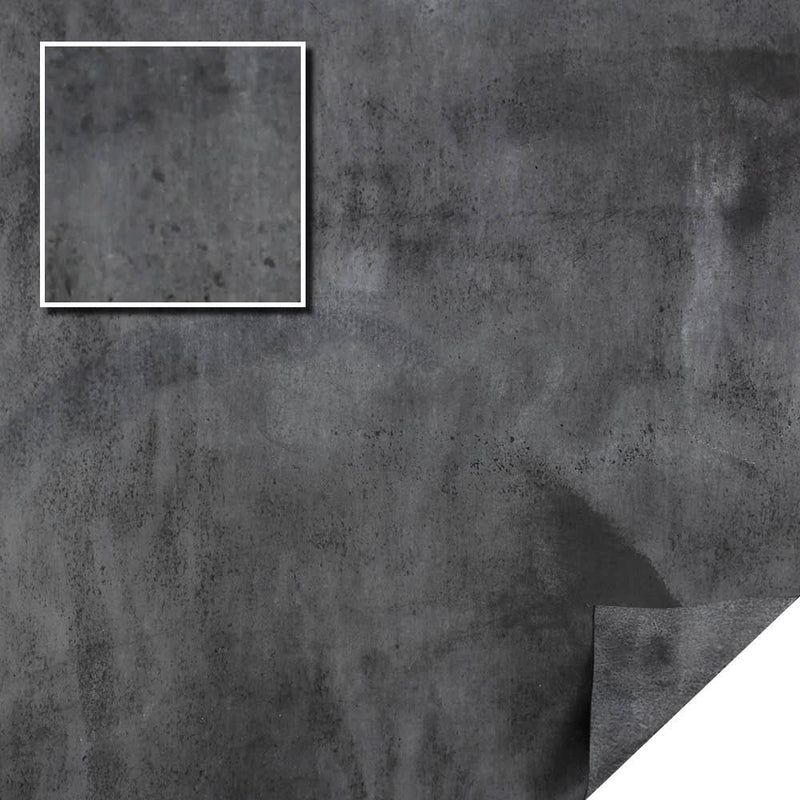

FSR-16 Flourinated Synthetic Rubber Film - 16 Mil

Viton®, High Performance , Fluorinated Synthetic Rubber Film, 16 Mil

Material Specification: 1008 RoHS

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Extremly Flexible, Rubber-Like Jacket
  • High Temperature (200 C)
  • Outstanding Fluid Resistance
  • Flame Retardant, Self-Extinguishing
  • Meets Mil-R-83248C, Type II, Class 1
  • -29° To 200°C Operational Limit

FSR-16 is manufactured under the name Viton®. An extremely flexible Fluorinated Synthetic Rubber jacket material that has a soft rubber-like texture, outstanding fluid resistance and an operational temperature range from -29° to 200°C. Viton® is an extremely rugged material that meets the requirements of Mil-R83248C, Type II, Class 1. A FSR-16 jacket is ideal for severe duty aerospace and military applications and can be configured for round, flat and rectangular cable configurations with a variety of closure options. FSR-16 can be combined with most Zippertubing EMI Shielding materials to create flexible cable jackets that will meet the toughest environmental requirements.

Specifications

  • Mil-Spec: Mil-R-83248C, Type II, Class 1
  • Dielectric Volts/Mil: 300 volt/mil
  • Elongation: 125% (min)
  • Flammability: Self-extinguishing
  • Color: Black
  • Thickness: 0.016"
  • Maximum Operating Temperature: 392°F
  • Minimum Operating Temperature: -20°F
  • RoHS: RoHS-6
  • Shelf Life: 60 Months
  • Tensile Strength: 1,200 psi/min
  • Flexibility: Best
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
