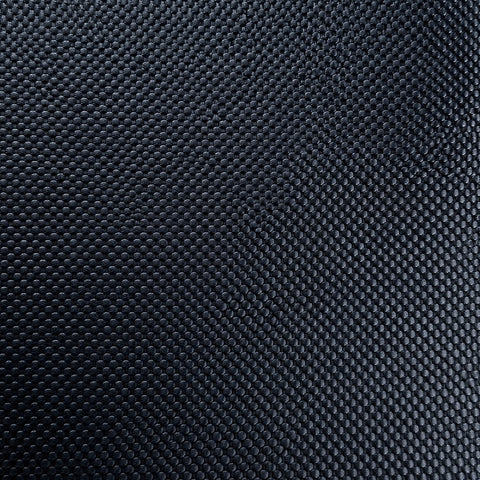

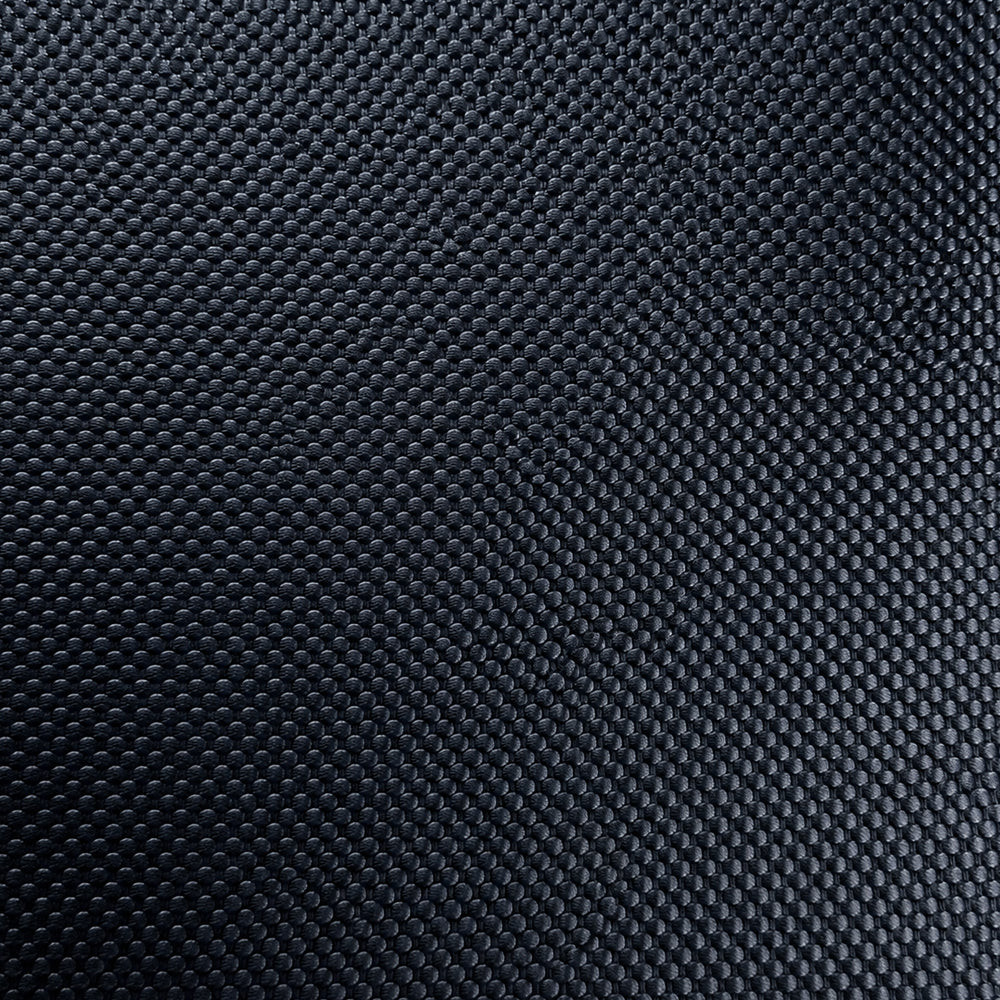

NHU-22 – Nylon Reinforced Halogen Free Polyurethane

High-performance TPU coated fabric that is fire retardant and Halogen free.

Material Specification: 1157 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Print Datasheet Print Datasheet
EMI Shielding
Cable Bundling
Heat Shrink
Heat Shielding
Custom Covers

Overview

  • Halogen-free, flame-retardant construction
  • Excellent abrasion and chemical resistance
  • Nylon scrim reinforcement provides excellent tear resistance and durability

NHU-22 is a medium weight (.022") nylon-reinforced polyurethane-coated fabric designed for demanding protective applications where durability, abrasion resistance, and flame performance are important. A strong nylon scrim provides reinforcement and excellent resistance to tearing, while the thermoplastic polyurethane (TPU) coating provides excellent abrasion and chemical resistance for long-lasting performance in harsh environments.

Unlike many conventional flame-retardant coated fabrics, NHU-22 is halogen free, making it an excellent material choice for applications where reduced-halogen construction is required or preferred. The material meets UL94 V-0 flammability requirements and maintains reliable performance across an operating temperature range of -40°F to 248°F (-40°C to 120°C). Available in black, NHU-22 is well suited for custom protective jackets, covers, wraps, and other applications requiring a tough, flexible, high-performance material.

Specifications

  • REACH: Compliant
  • Flame Retardant: UL94 V-0
  • Color: Black
  • Maximum Operating Temperature: 248°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Thickness: 0.022”
    • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
