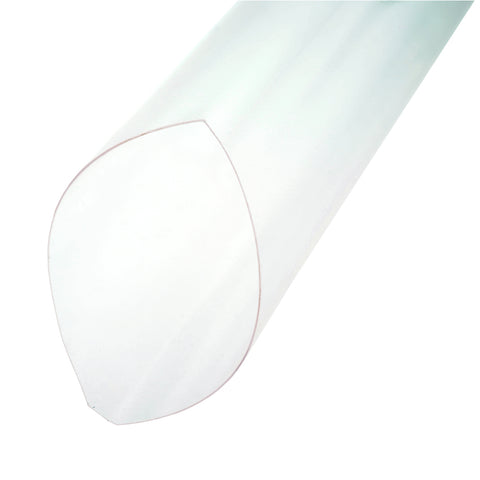

Kynar Polyvinylidene Floride (PVDF) Heat Shrink Tubing

Material Specification: 6004 UL Recognized RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Meets MIL-DTL-23053/18 Class 3
  • Flame retardant; UL224, VW-1
  • Excellent fluid resistance

Kynar® is a polyvinylidene fluoride heat shrink tubing. The flexible material has excellent fluid resistance and copper corrosion resistance. This material meets MIL-DTL-23053/18 Class 3, making this heat shrink perfect for the military. The heat shrink tubing is also flame retardant with meeting UL224, VW-1. Kynar® is used for our Shrink-N-Shield® (PVDF) EMI shielding heat shrink, which is the ideal solution for severe-duty applications. Kynar® has an operational temperature range of -67°F to 302°F (-55°C to 150°C).

Specifications

  • REACH: Compliant
  • Copper Corrosion: Mil-DTL-23053
  • Dielectric Volts/Mil: 500 (after shrink)
  • Elongation: 200% (after shrink)
  • Flammability: UL 224, VW-1
  • Longitudinal Shrinkage: +/- 10% maximum (after heat recovery)
  • Material: Cross-linked Polyvinlidene Fluoride (Kynar®)
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -67°F
  • Water Absorption: 0.5 maximum
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Flexibility: Good
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    PTFE Clear Teflon Heat Shrink Tubing Viton Cross-Linked Fluoroelastomer Heat Shrink Tubing Polyolefin Heat Shrink Tubing
    NAME PTFE CLEAR TEFLON HEAT SHRINK TUBING VITON CROSS-LINKED FLUOROELASTOMER HEAT SHRINK TUBING POLYOLEFIN HEAT SHRINK TUBING
    DESCRIPTION
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best Best Best
    Min Temperature Extreme Extreme Extreme
    Minimum Operating Temperature -85°F -67°F -67°F
    Max Temperature Extreme Moderate Moderate
    Maximum Operating Temperature 500°F 392°F 275°F
    Flexibility Better Best Better
