Hook-It® (Trevira) Highly Flexible Cable Jacketing

A lightweight, flexible wrap-around cable management solution utilizing patented Trevira jacketing paired with a Velcro-style hook-and-loop closure system.

Drawing Number(s): ZT00-13-008

Hook-It® (Trevira) Highly Flexible Cable Jacketing
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT00-13-008-0.5
Get A Quote

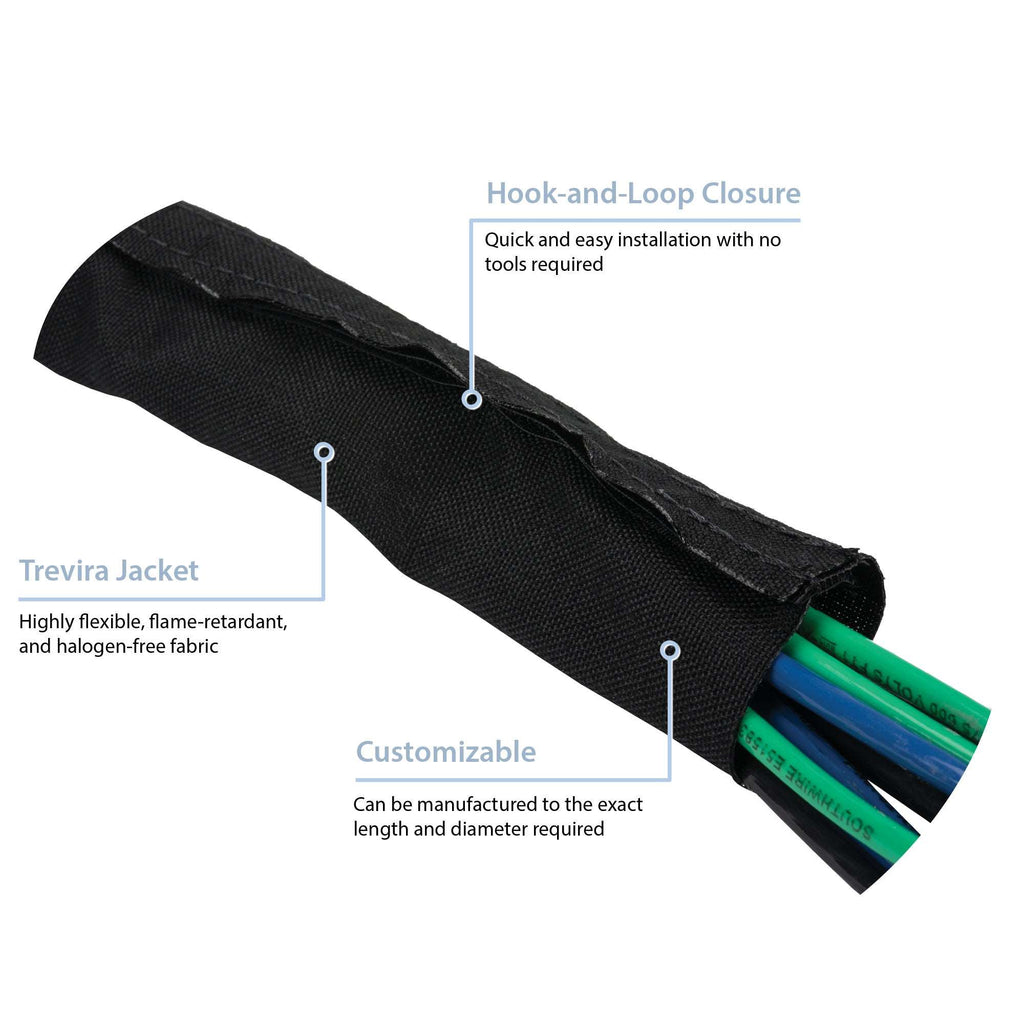

Hook-It (Trevira) infographic
  • Self-extinguishing and cadmium-free
  • UV and ozone stabilized Trevira fabric
  • Hook-and-loop closure for easy installation

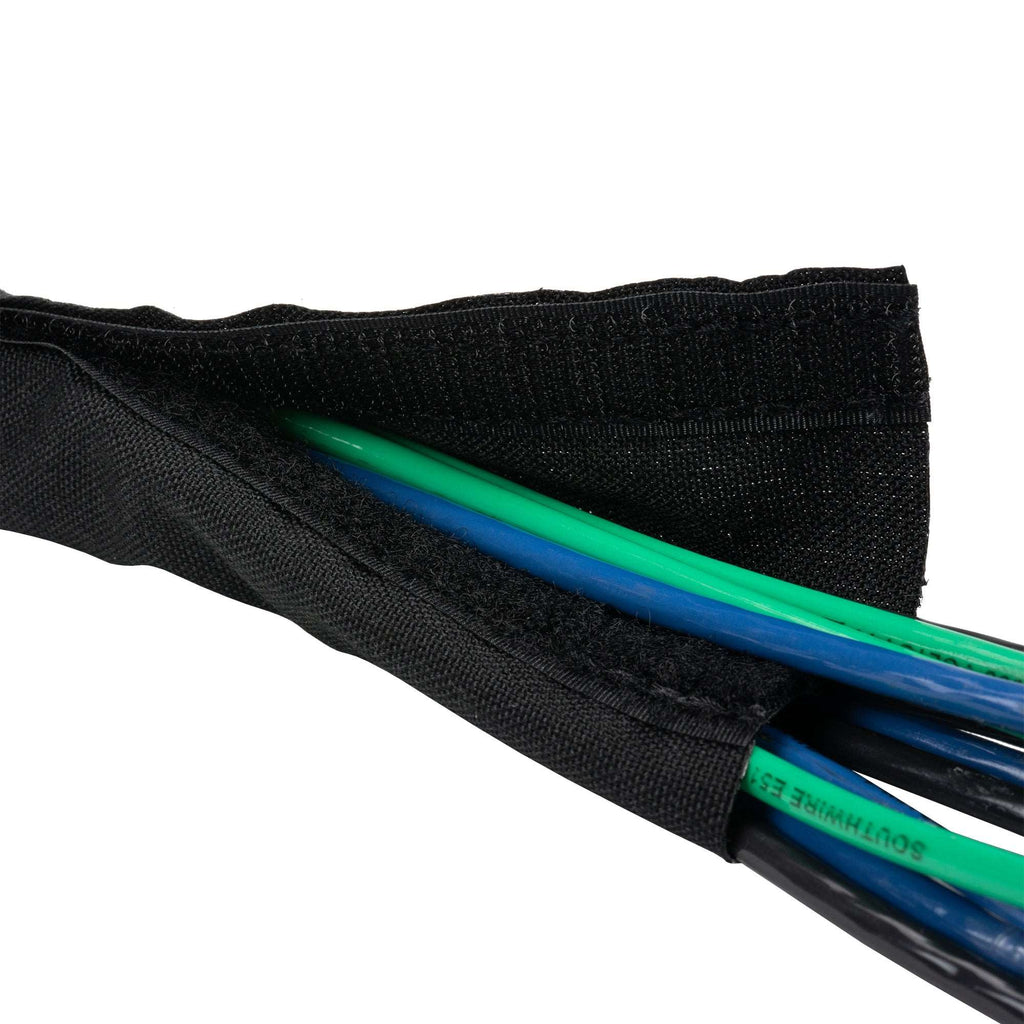

Hook-It® (Trevira) combines patented Trevira jacketing with a Velcro-style hook-and-loop closure system. The jacketing is RoHS compliant, self-extinguishing per FMVSS 302 and DIN 75200, meets ASTM E 662 for smoke generation and Bombardier SMP 800-C for toxic gas generation. The Trevira fabric is UV and ozone stabilized, as well as contains no halogen or cadmium. This material is engineered for applications with stringent requirements and restrictions that demand a lightweight, flexible cable management solution.

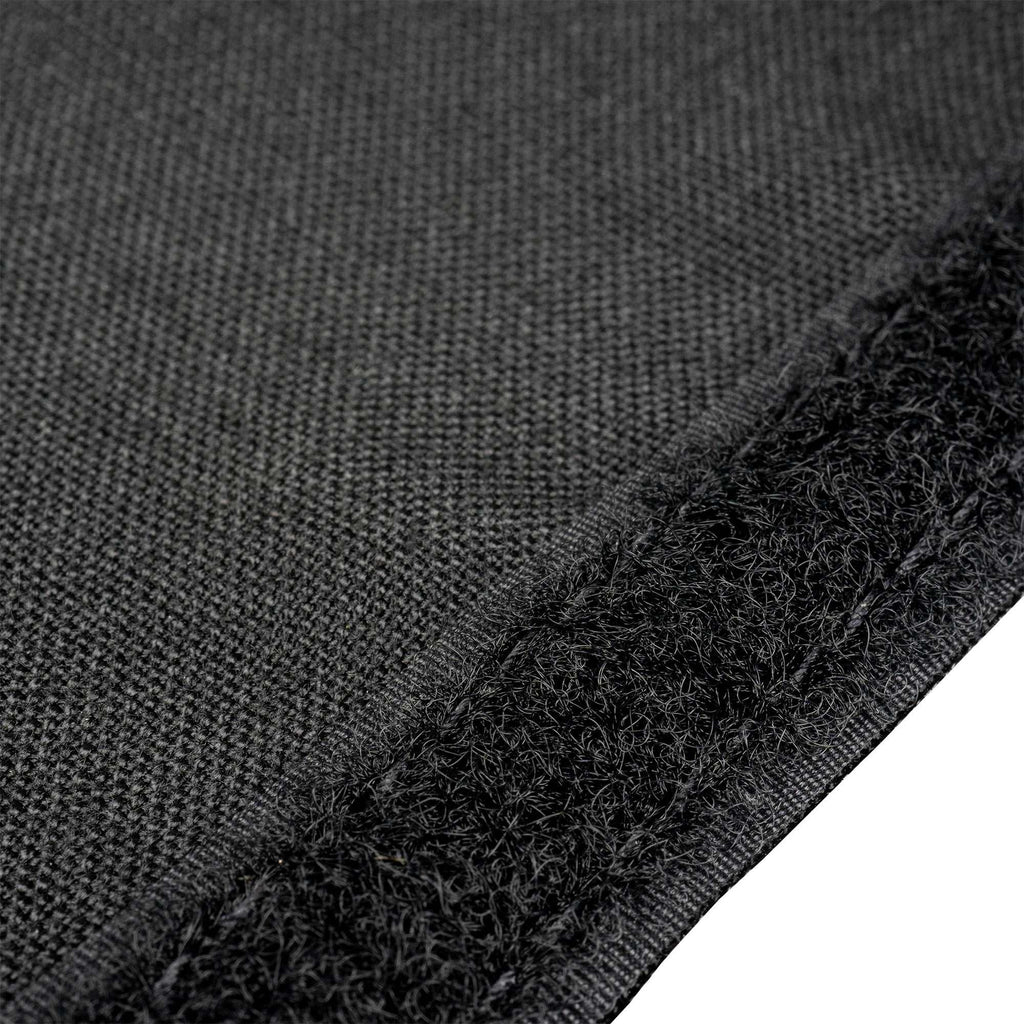

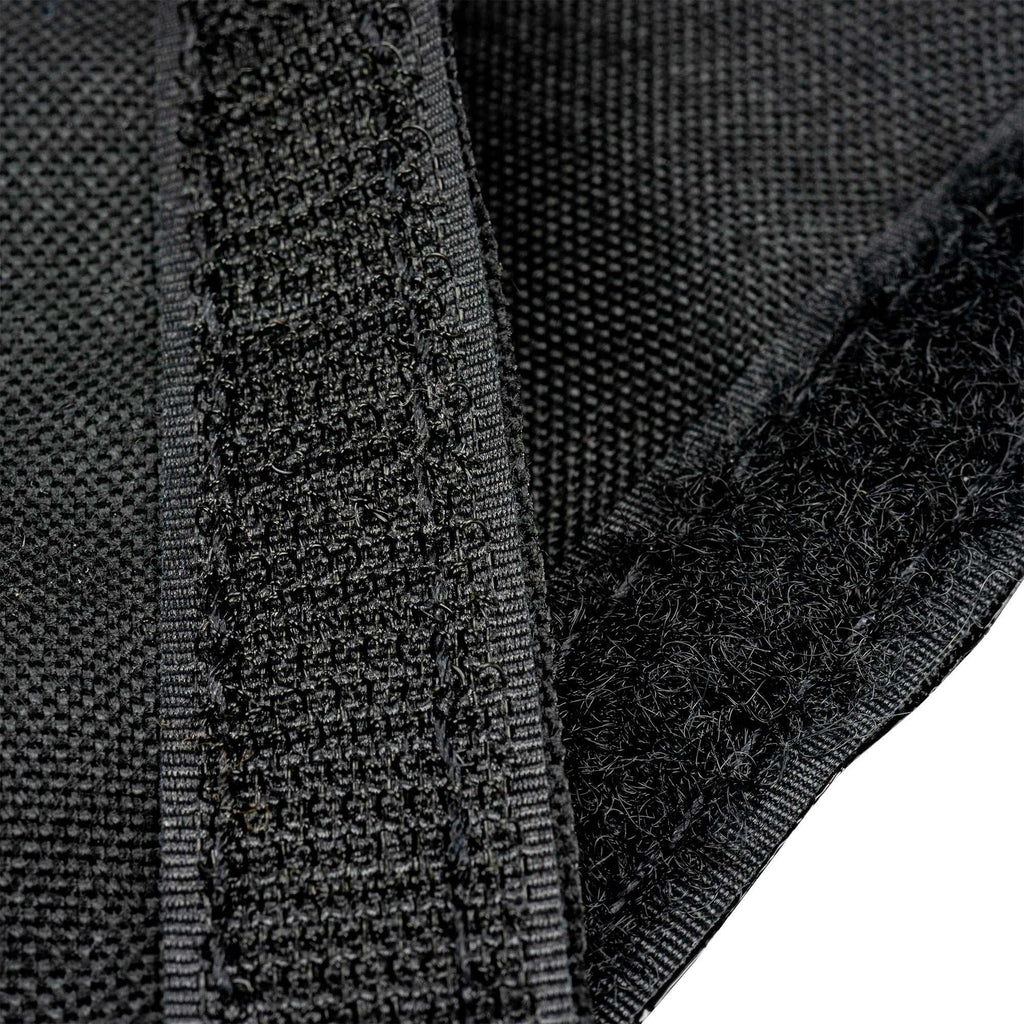

The hook-and-loop nylon material conforms to GSA specification A-A-55126, Type II, Class 1. The Velcro-style closure provides a secure seal, but can be easily peeled apart to access components inside.

Hook-It® (Trevira) diameter options range from 0.5” to 4”, with custom sizes available upon request. The operational temperature range is -40°F to 200°F (-40°C to 93°C).

Q:  What lengths of hook & loop jacketing are available?

A:  Our hook & loop closed sleeves can be ordered in lengths as short as a few inches to lengths of 100 feet or more.  When quoting or ordering, make sure to clearly state the length of each sleeve in inches, which is typically referenced at the end of the part number (-X120.0 for example).

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  Can I cut the Jacketing?

A:  Yes*.  *We recommend ordering hook & loop closed
jacketing to the exact length required, but you absolutely can trim down a spool of Hook-It jacketing using standard scissors.   When cutting lengths of Hook-It jacketing, keep in mind the newly trimmed edges will not have the back-stitching found on
the factory edges and the stitching may come loose over time. For more details on cutting or size recommendations please contact one of our design
engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Hook-It products.  The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

Q:  What is the difference between Hook & Loop and Velcro?

A:  “Hook & Loop” refers to the family of closures that utilize small loops of fiber and tiny hooks to interlock and hold material together. Velcro is the name of the company that originally created the hook-and-loop fastening system.  Here at ZT we use Velcro brand fasteners as well as fasteners from other brands.

show more >>

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Hook-and-Loop (Nylon)
  • Material: Trevira
  • Hook and Loop: 5/8" / 1"
  • Maximum Operating Temperature: 199°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10

Trevira

  • REACH: Compliant
  • Chemical Resistance: Good
  • Flammability: Self-extinguishing
  • Thickness: 0.015"
  • Maximum Operating Temperature: 320°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months

Hook-and-Loop (Nylon)

    Nylon Thread

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
      Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
      NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
      DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
      Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
      RoHS RoHS-10  RoHS-10  RoHS-10
      Abrasion Resistance Best  Best  Better
      Installation Type Wrap-Around  Wrap-Around  Wrap-Around
      Purpose Sleeve  Sleeve  Sleeve
      Min Temperature Low  Moderate  Extreme
      Minimum Operating Temperature -4°F  -32.8°F  -58°F
      Max Temperature Moderate  Low  Moderate
      Maximum Operating Temperature 221°F  194°F  302°F
      Flexibility Better  Best  Best
      View  View  View

      Hook-It® (Trevira) Highly Flexible Cable Jacketing

      A lightweight, flexible wrap-around cable management solution utilizing patented Trevira jacketing paired with a Velcro-style hook-and-loop closure system.

      Drawing Number(s): ZT00-13-008

      Selected Part Number: ZT00-13-008-0.5

    • Self-extinguishing and cadmium-free
    • UV and ozone stabilized Trevira fabric
    • Hook-and-loop closure for easy installation
    • Features

    • Lightweight and flexible jacketing
    • Velcro-style closure system allows for re-entry even after installation
    • Operational temperature range of -40°F to 200°F (-40°C to 93°C)
    • Benefits

    • Meets FMVSS 302, DIN 75200, ASTM E 662 and Bombardier SMP 800-C
    • Cadmium-free jacketing material
    • No need for disconnection due to wrap-around design
    • Hook-It® (Trevira) Highly Flexible Cable Jacketing
