Hook-It® (PVC) Clear Cable Management

A clear, flame-retardant and UV-resistant cable bundling solution with a heat sealed Velcro-style hook-and-loop closure.

Drawing Number(s): ZT20-13-002

Hook-It® (PVC) Clear Cable Management
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT20-13-002-0.5-C-W
Get A Quote
Hook-It (PVC) cable management solutions
  • Fire-retardant and UV-resistant PVC jacketing
  • Velcro-style hook-and-loop closure for easy installation
  • Available in 0.5” to 6” diameters with custom sizes available

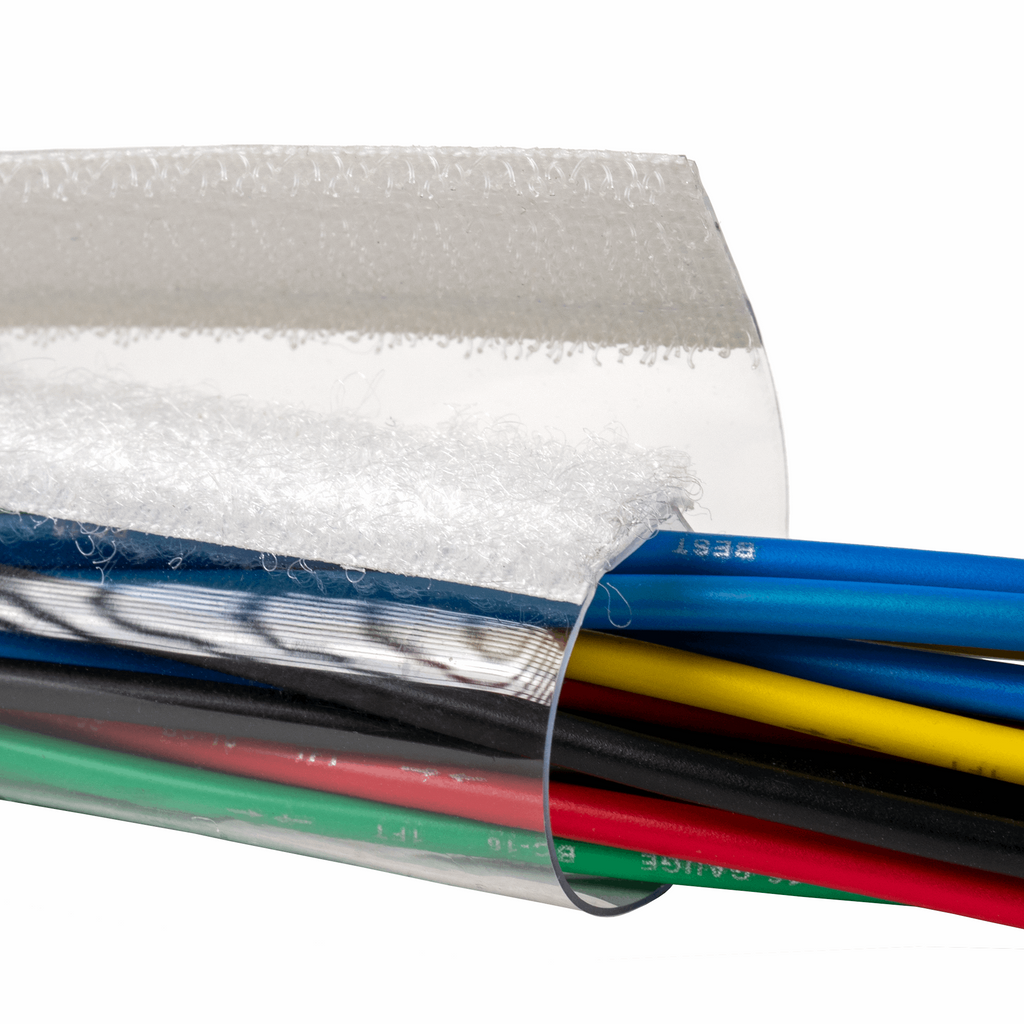

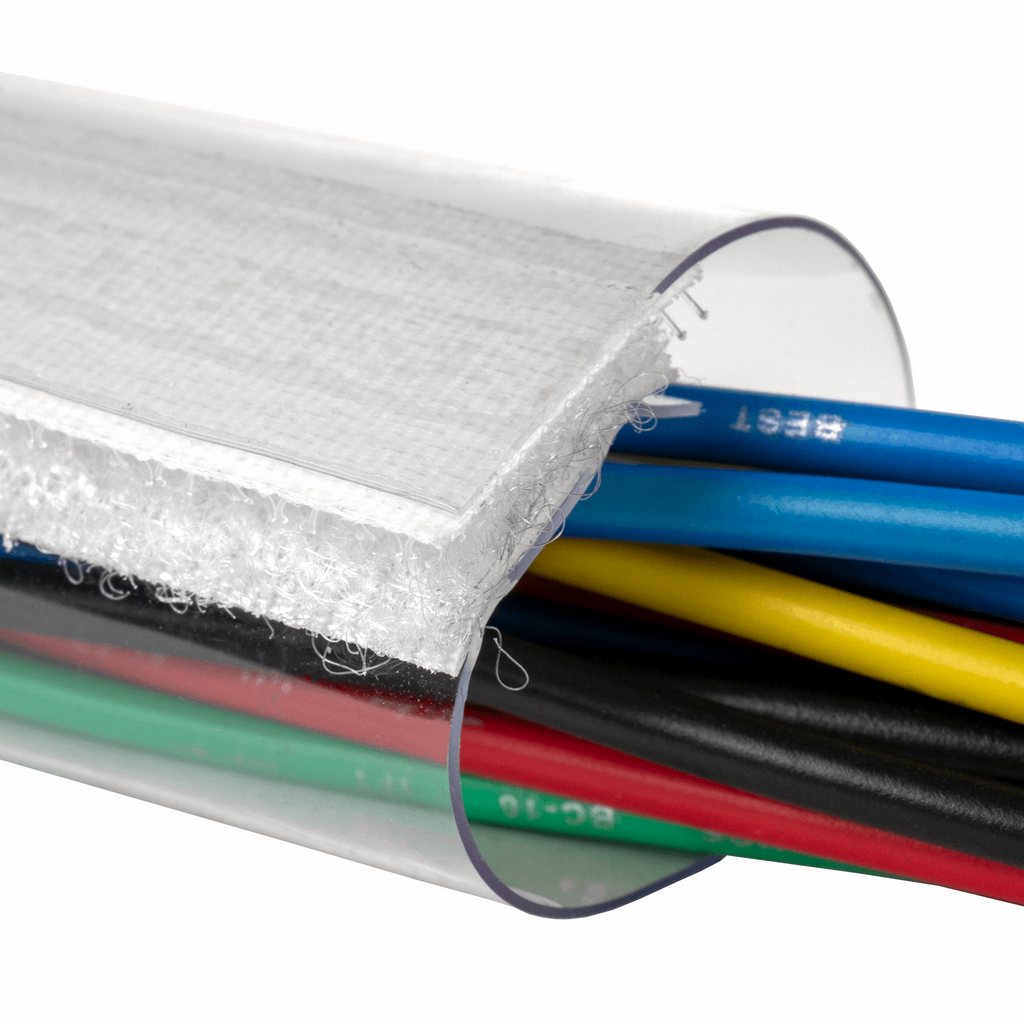

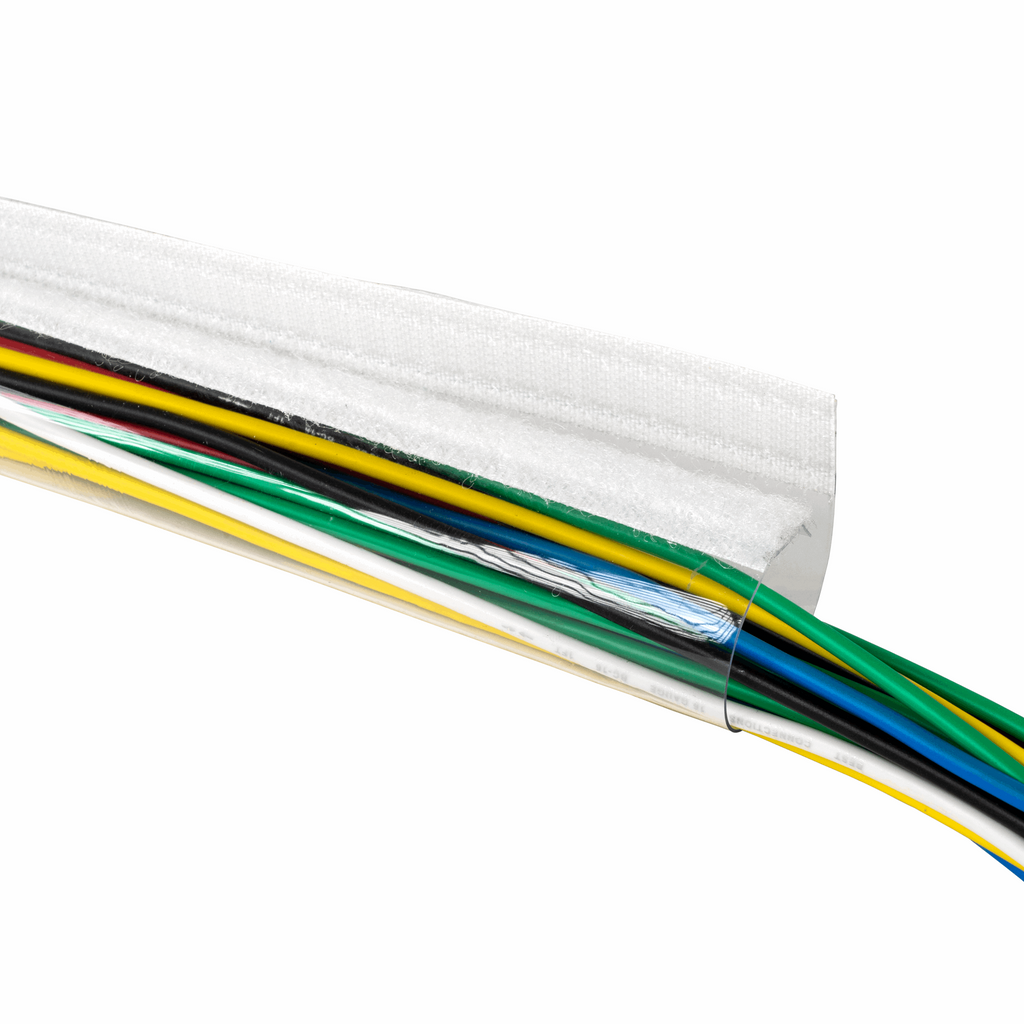

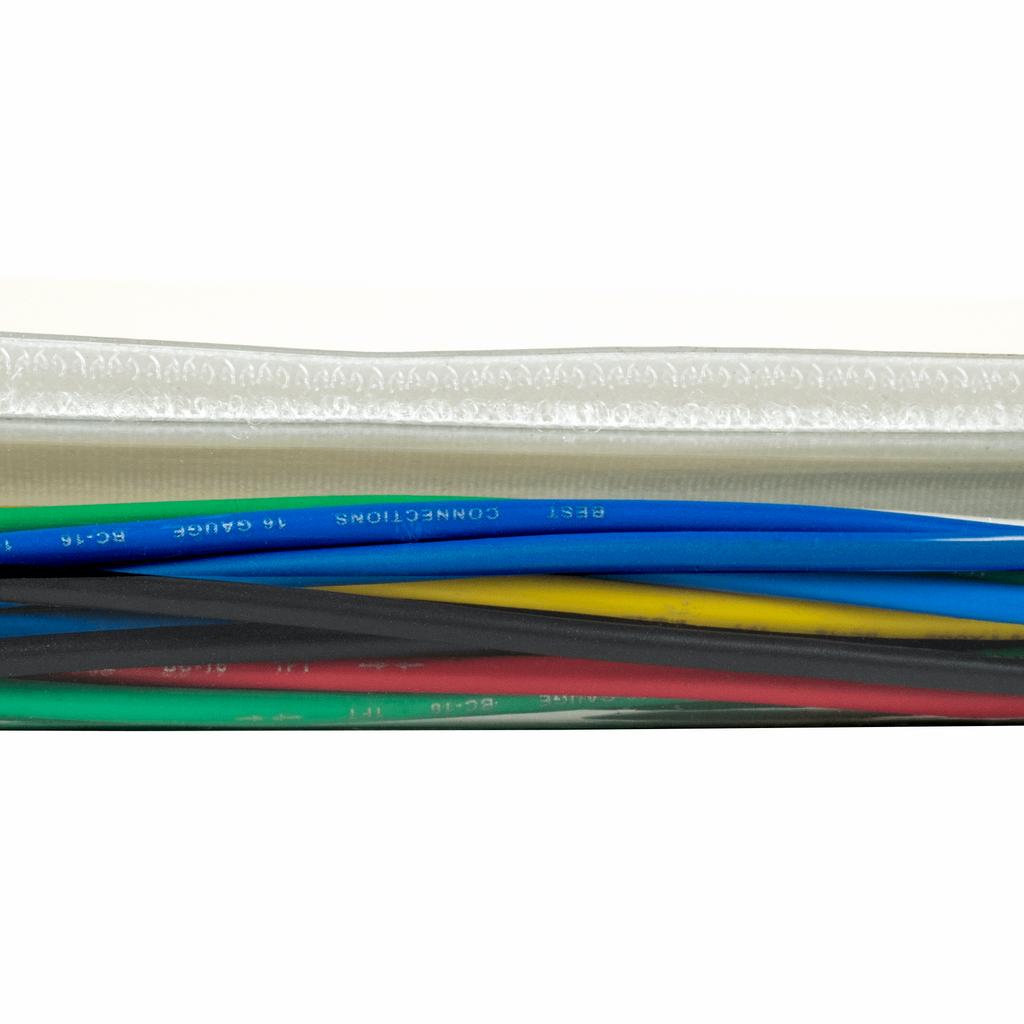

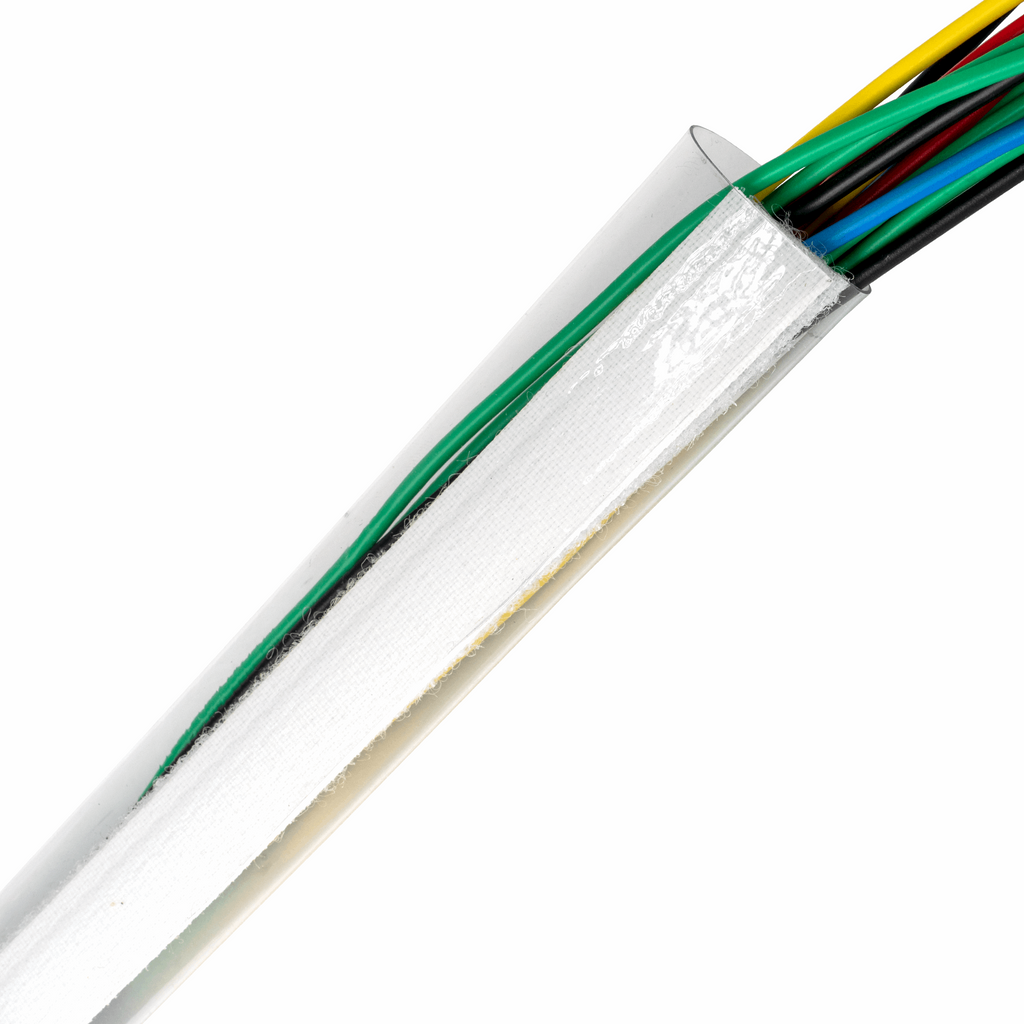

Hook-It® (PVC) is cable management system that pairs PVC jacketing with a heat sealed nylon hook-and-loop closure system. The product is fire-retardant, RoHS compliant and UV-resistant, providing wires and cables with lasting, durable protection. Hook-It® (PVC) jacketing is .018” thick and clear in color — ideal for applications where optical clarity is important.

The Velcro-style hook-and-loop is one of the easiest closure systems, which requires no tools for installation. The nylon hook-and-loop engage together to provide a secure closure, but can be easily pulled apart for quick access to wires or cables inside. The hook-and-loop material conforms to GSA specification A-A-55126, Type II, Class 1.

Hook-It® (PVC) has an operational temperature ranges of -20°F to 180°F (-28°C to 82°C). Standard diameters range from 0.5” to 6”, with custom sizes available upon request. Hook-It® (PVC) can be cut to length.



Q:  What lengths of hook & loop jacketing are available?

A:  Our hook & loop closed sleeves can be ordered in lengths as short as a few inches to lengths of 100 feet or more.  When quoting or ordering, make sure to clearly state the length of each sleeve in inches, which is typically referenced at the end of the part number (-X120.0 for example).

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  Can I cut the Jacketing?

A:  Yes*.  *We recommend ordering hook & loop closed
jacketing to the exact length required, but you absolutely can trim down a spool of Hook-It jacketing using standard scissors.   When cutting lengths of Hook-It jacketing, keep in mind the newly trimmed edges will not have the back-stitching found on
the factory edges and the stitching may come loose over time. For more details on cutting or size recommendations please contact one of our design
engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Hook-It products.  The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

Q:  What is the difference between Hook & Loop and Velcro?

A:  “Hook & Loop” refers to the family of closures that utilize small loops of fiber and tiny hooks to interlock and hold material together. Velcro is the name of the company that originally created the hook-and-loop fastening system.  Here at ZT we use Velcro brand fasteners as well as fasteners from other brands.

show more >>

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Heat Sealable Hook-and-Loop
  • Material: PVC Film (Clear)
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -20°F
  • RoHS: RoHS-6

PVC Film (Clear)

  • Flammability: Flame Retardant
  • Color: Clear
  • RoHS: RoHS-6
  • UV Resistance: Good

Heat Sealable Hook-and-Loop

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -32.8°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  194°F  302°F
    Flexibility Better  Best  Best
    View  View  View

    Hook-It® (PVC) Clear Cable Management

    A clear, flame-retardant and UV-resistant cable bundling solution with a heat sealed Velcro-style hook-and-loop closure.

    Drawing Number(s): ZT20-13-002

    Selected Part Number: ZT20-13-002-0.5-C-W

  • Fire-retardant and UV-resistant PVC jacketing
  • Velcro-style hook-and-loop closure for easy installation
  • Available in 0.5” to 6” diameters with custom sizes available
  • Features

  • Flame-retardant and UV-resistant jacketing
  • Clear jacket allows for easy visibility to components inside
  • Operational temperature range of -20°F to 180°F (-28°C to 82°C)
  • Benefits

  • Can be cut to length
  • Wrap-around solution allows for installation without disassembly or tools
  • Lightweight, yet still provides durable protection
  • Hook-It® (PVC) Clear Cable Management

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
