Heat-Wrap® (ALS-5) Flexible Thermal Reflective Wrap

A lightweight, heat-shielding, wrap-around, adhesive-sealed solution that can be exposed to temperatures up to 300°F.

Drawing Number(s): ZT07-04-002

Heat-Wrap® (ALS-5) Flexible Thermal Reflective Wrap

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT07-04-002-0.25
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

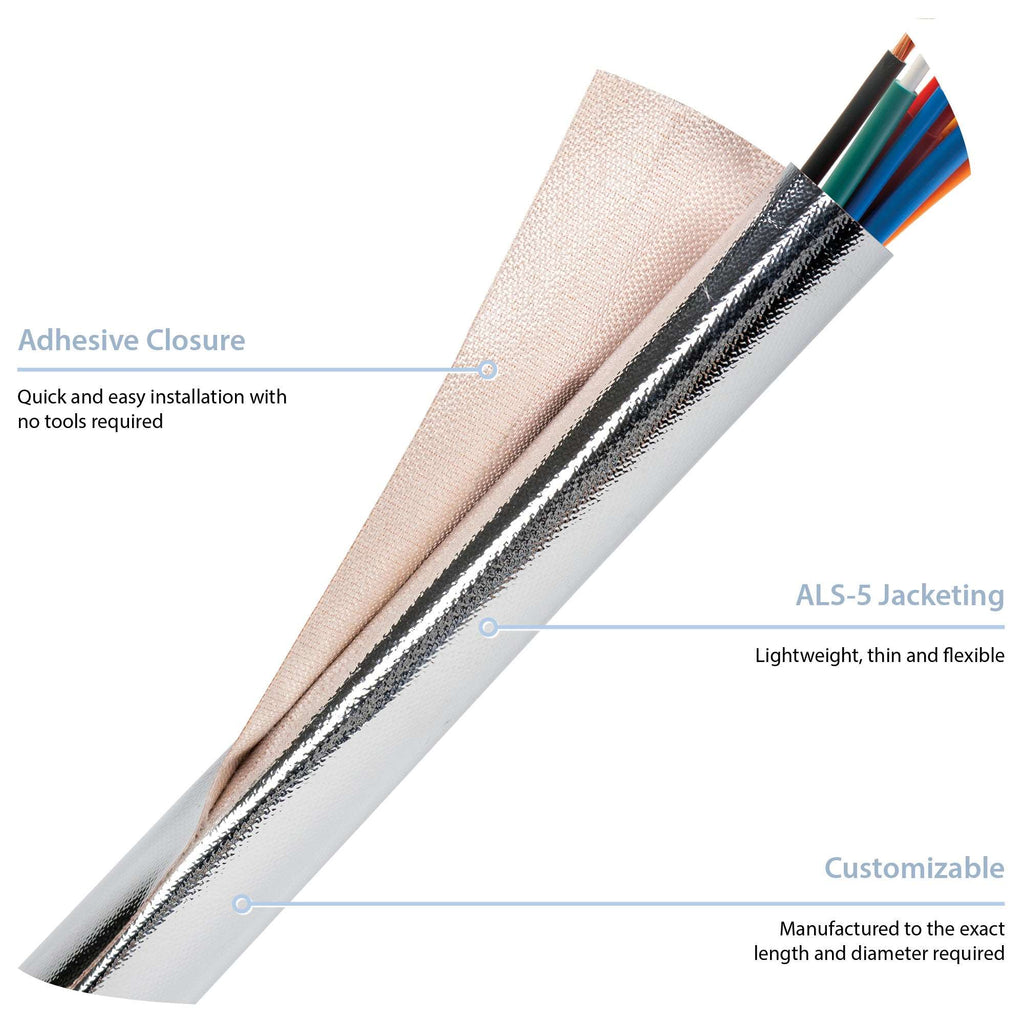

Heat-Wrap (ALS-5) Infographic
  • Adhesive Closure System
  • Multi-Purpose Heat Barrier Protection
  • Flame Retardant & Flexible
  • Easy Toolless Installation
  • Low Installed Cost

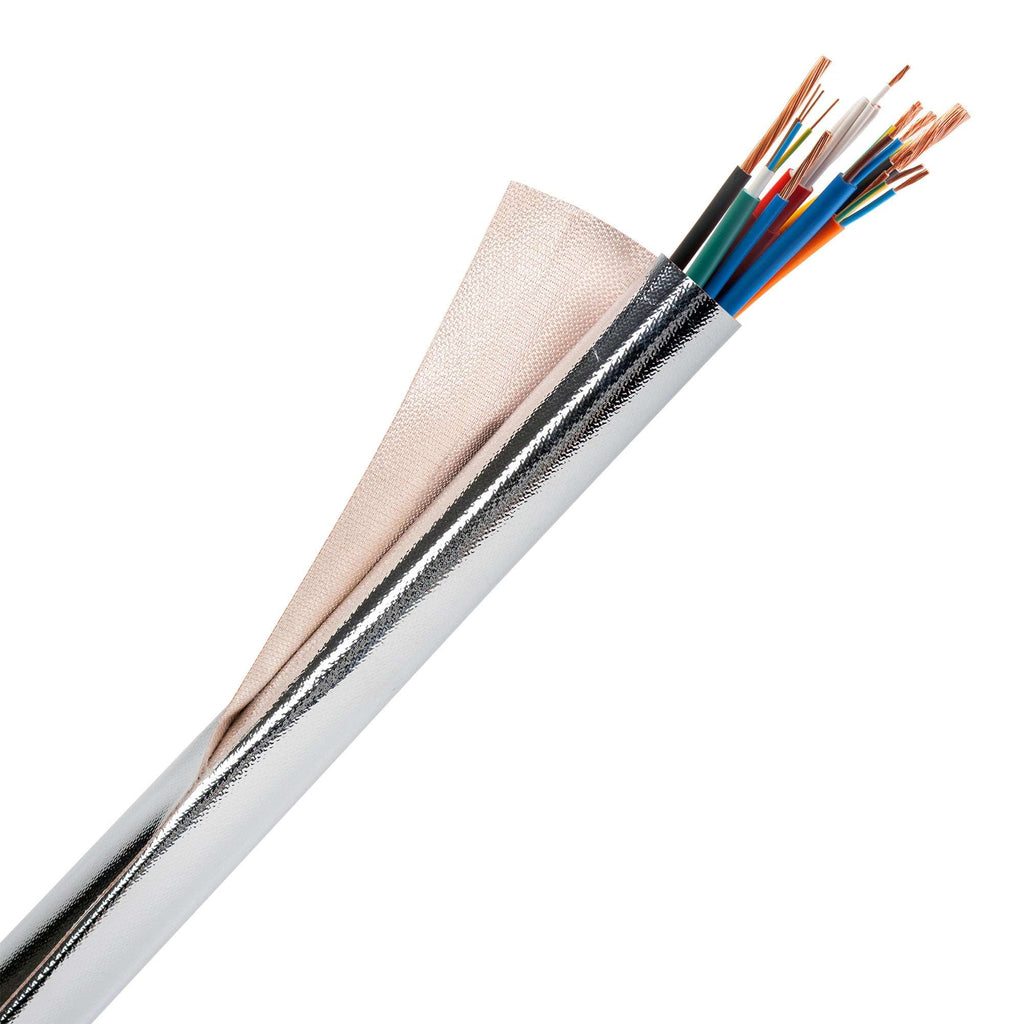

Heat-Wrap® (ALS-5) is a wrap-around, thermal protective solution for components that need protection and a barrier from high temperature damage and abrasion. The ALS-5 jacketing is made of a woven glass fiber with a reflective aluminum surface on one side. The ALS-5 heat-shielding material is lightweight and thin at only 0.006” thick, making it the ideal choice for smaller component diameters. This jacketing is also SAE tested for automotive applications, fluid resistant and flame retardant. The ALS-5 jacketing has an operational temperature range of -58°F to 300°F (-50°C to 150°C).

Heat-Wrap® (ALS-5) has a high-temperature, acrylic adhesive closure that has a high bond strength. Additionally, the adhesive has a paper release liner for clean and easy application.

Heat-Wrap® (ALS-5) is engineered for component diameters ranging from 0.25” to 1”, with custom sizes available upon request.

Heat-Wrap® is also available with our ALP-500 heat-shielding jacket for applications with larger diameters and require a more rigid jacketing material with the best abrasion resistance.

Overall Performance

  • Diameter: 1.5" (1 1/2)
  • Closure: Tape (High Temperature)
  • Material: ALS-5
  • Maximum Operating Temperature: 300°F
  • Minimum Operating Temperature: -40°F
  • Shelf-Life: 12 months

ALS-5

  • Weight: 5.3 oz/sq-yd; ASTM D5041
  • Break Strength: 100 lbs/min (warp) | 50 lbs/min (fill)
  • Thickness: 0.006"
  • Radiant Reflectivity: 10 seconds; Mil-C-24929A
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -58°F
  • Shelf Life: 60 Months
  • Tear Strength: 2.0 lbs/min (warp) | 2.0 lbs/min (fill)
  • Emissivity: 0.059 (Foil Side) | .888 (Cloth Side)

Tape (High Temperature)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    HeatReflect® (AFA) Adhesive-Backed Heat Shielding  Heat-Wrap® (ALP-500) Heat Resistant Wrap  HeatReflect® (ALP) Heat Shielding Tape
    NAME HEATREFLECT® (AFA) ADHESIVE-BACKED HEAT SHIELDING  HEAT-WRAP® (ALP-500) HEAT RESISTANT WRAP  HEATREFLECT® (ALP) HEAT SHIELDING TAPE
    DESCRIPTION HeatReflect® (AFA) is a completely customizable heat shielding solution – the shapes and sizes for applications are endless.  A durable, heat-shielding, wrap-around, adhesive-sealed solution that can be exposed to temperatures up to 300°F.  A medium-weight, aluminum-coated fiberglass heat shielding tape to protect from temperatures up to 300°F.
    Closure Adhesive  Tape (High Temperature)  Tape (High Temperature)
    RoHS  RoHS-10  RoHS-10
    Abrasion Resistance  Best  Best
    Installation Type  Wrap-Around  Wrap-Around
    Purpose  Sleeve  Tape
    Min Temperature  Extreme  Extreme
    Minimum Operating Temperature -40°F  -40°F  -40°F
    Max Temperature  Moderate  Moderate
    Maximum Operating Temperature 356°F  300°F  300°F
    Flexibility
    View  View  View
    Zippertubing
    Heat-Wrap (ALS-5) Infographic

    Heat-Wrap® (ALS-5) Flexible Thermal Reflective Wrap

    A lightweight, heat-shielding, wrap-around, adhesive-sealed solution that can be exposed to temperatures up to 300°F.

    Drawing Number(s): ZT07-04-002

    Selected Part Number: ZT07-04-002-0.25

  • Adhesive Closure System
  • Multi-Purpose Heat Barrier Protection
  • Flame Retardant & Flexible
  • Military
    Heat-Wrap (ALS-5)
    Heat-Wrap (ALS-5) thermal insulation wrap
    Heat-Wrap (ALS-5) wire heat insulation
    Heat-Wrap (ALS-5) cable heat protection

    Features

  • Lightweight, thin and flexible heat-shielding jacket
  • Ideal for automotive and transportation marketplace
  • SAE tested per SAE J2302 requirements
  • Benefits

  • Shields components from temperatures up to 300°F, and shorts bursts of 450°F
  • Acrylic transfer adhesive seal provides 360° secure closure
  • Easily wraps around wires or cables without requiring any tools for installation
  • Heat-Wrap® (ALS-5) Flexible Thermal Reflective Wrap
