Note: Raw materials are part of our proven solutions and custom-engineered products, and are not sold separately.

FIT – PVC Film

Name: FIT – PVC Film
Brand: zippertubing
Availability: InStock

A flexible, medium-weight, PVC film for cable protection.

Material Specification: 2024 UL Recognized

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Print Datasheet

Overview

Flame retardant (equivalent to UL224 VW-1)
Flexible, durable, and fluid resistant
Available in gray, black, white, yellow, and blue

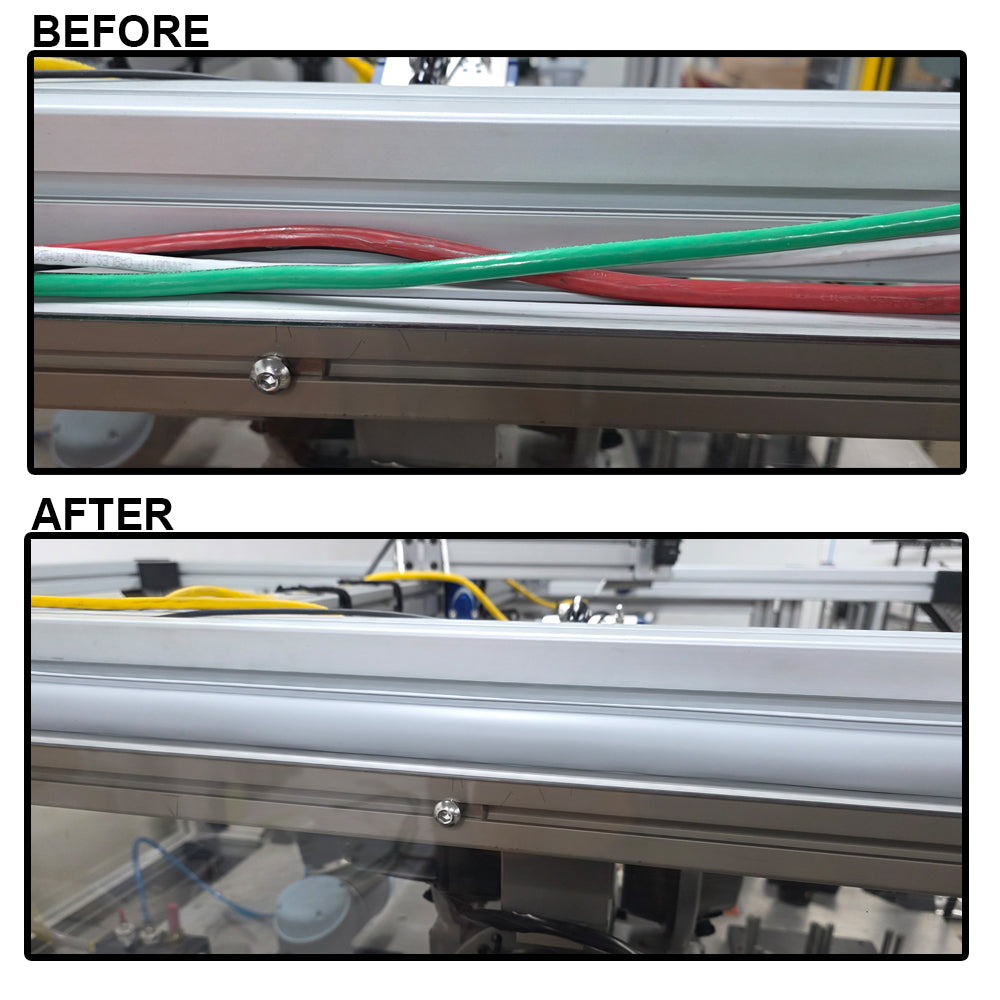

FIT PVC film is a 0.028” thick, medium weight, flexible material used for cable and component protection. FIT jacketing is an abrasion resistant, fluid resistant, and flame retardant material suitable for many different environments. FIT is typically used as a sleeving for cables and hoses that are bundled and routed along T-Slot framing rails. FIT jacketing is available in a range of colors and extruded configurations to fit various slotted rails and cable configurations.

Specifications

Elongation: 250% Minimum

Flame Retardant: UL224 VW-1 Equivalent

Material: PVC Extruded Film

Color: Gray, Black, White, Yellow, Blue

Thickness: 0.028"

Maximum Operating Temperature: 140°F

Minimum Operating Temperature: 5°F

RoHS: RoHS-10

Shelf Life: 36 Months

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials


NAME	EZ-TRACK (TPU) EXTRUDED PRESSURE TRACK	63-20 PVC FILM - 20 MIL	EZ-TRACK (PVC) EXTRUDED PRESSURE TRACK
DESCRIPTION	Flame-retardant, thermoplastic polyurethane extruded arrowhead and channel closure system.	A flexible, medium-weight PVC film that is 20-mil (0.020") thick.	A single-extruded PVC pressure track with an arrowhead and channel locking system.
RoHS	RoHS-10	RoHS-10	RoHS-10
Abrasion Resistance		Best	Best
Min Temperature	Moderate	Low	Low
Minimum Operating Temperature	-40°F	-4°F	-4°F
Max Temperature	Moderate	Moderate	Moderate
Maximum Operating Temperature	257°F	221°F	221°F
Flexibility	Better	Better	Better
	View	View	View

FIT – PVC Film

A flexible, medium-weight, PVC film for cable protection.

Material Sprcification: 1117

Flame retardant (equivalent to UL224 VW-1)
Flexible, durable, and fluid resistant
Available in gray, black, white, yellow, and blue

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Elongation: 250% Minimum

Flame Retardant: UL224 VW-1 Equivalent

Material: PVC Extruded Film

Color: Gray, Black, White, Yellow, Blue

Thickness: 0.028"

Maximum Operating Temperature: 140°F

Minimum Operating Temperature: 5°F

RoHS: RoHS-10

Shelf Life: 36 Months

DESCRIPTION

FIT PVC film is a 0.028” thick, medium weight, flexible material used for cable and component protection. FIT jacketing is an abrasion resistant, fluid resistant, and flame retardant material suitable for many different environments. FIT is typically used as a sleeving for cables and hoses that are bundled and routed along T-Slot framing rails. FIT jacketing is available in a range of colors and extruded configurations to fit various slotted rails and cable configurations.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
