EZ-Track (PVC) Extruded Pressure Track

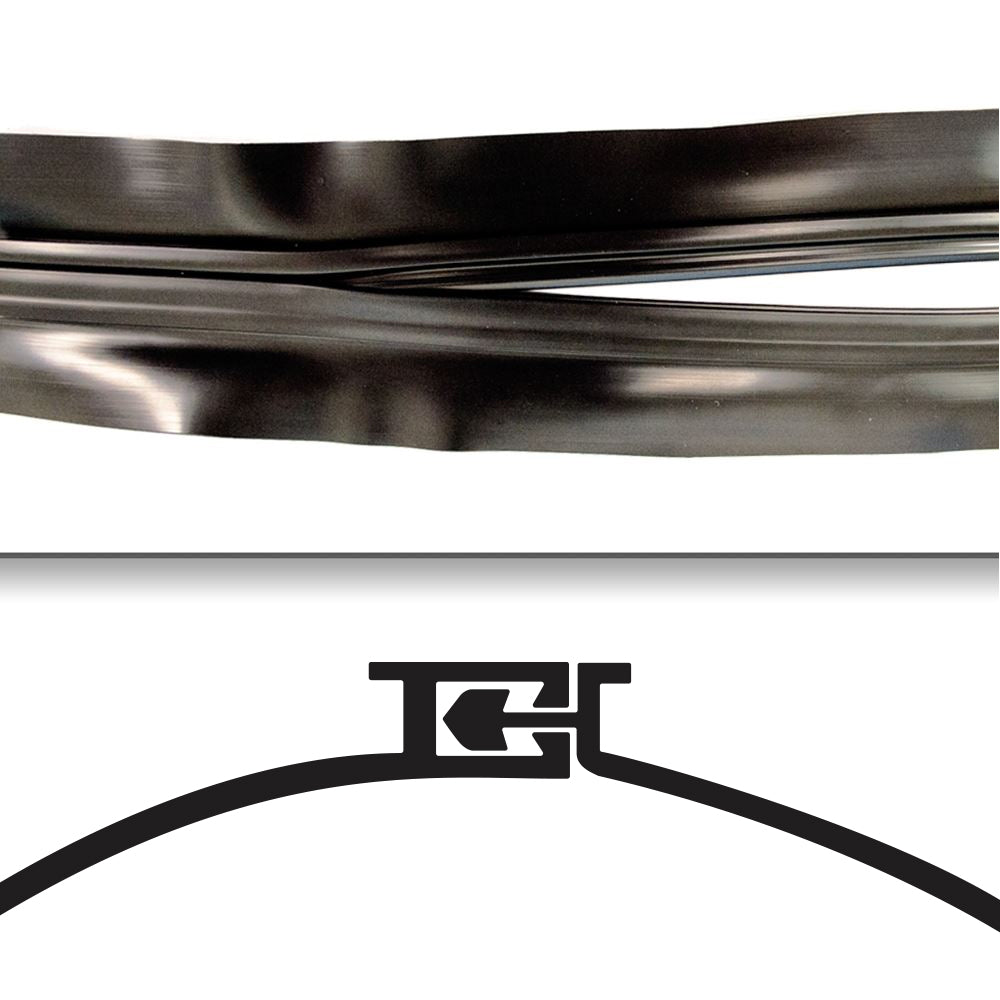

A single-extruded PVC pressure track with an arrowhead and channel locking system.

Material Specification: 2019 RoHS

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Fire-retardant and excellent abrasion resistance
  • Fungus resistant meeting Mil-Std-810D

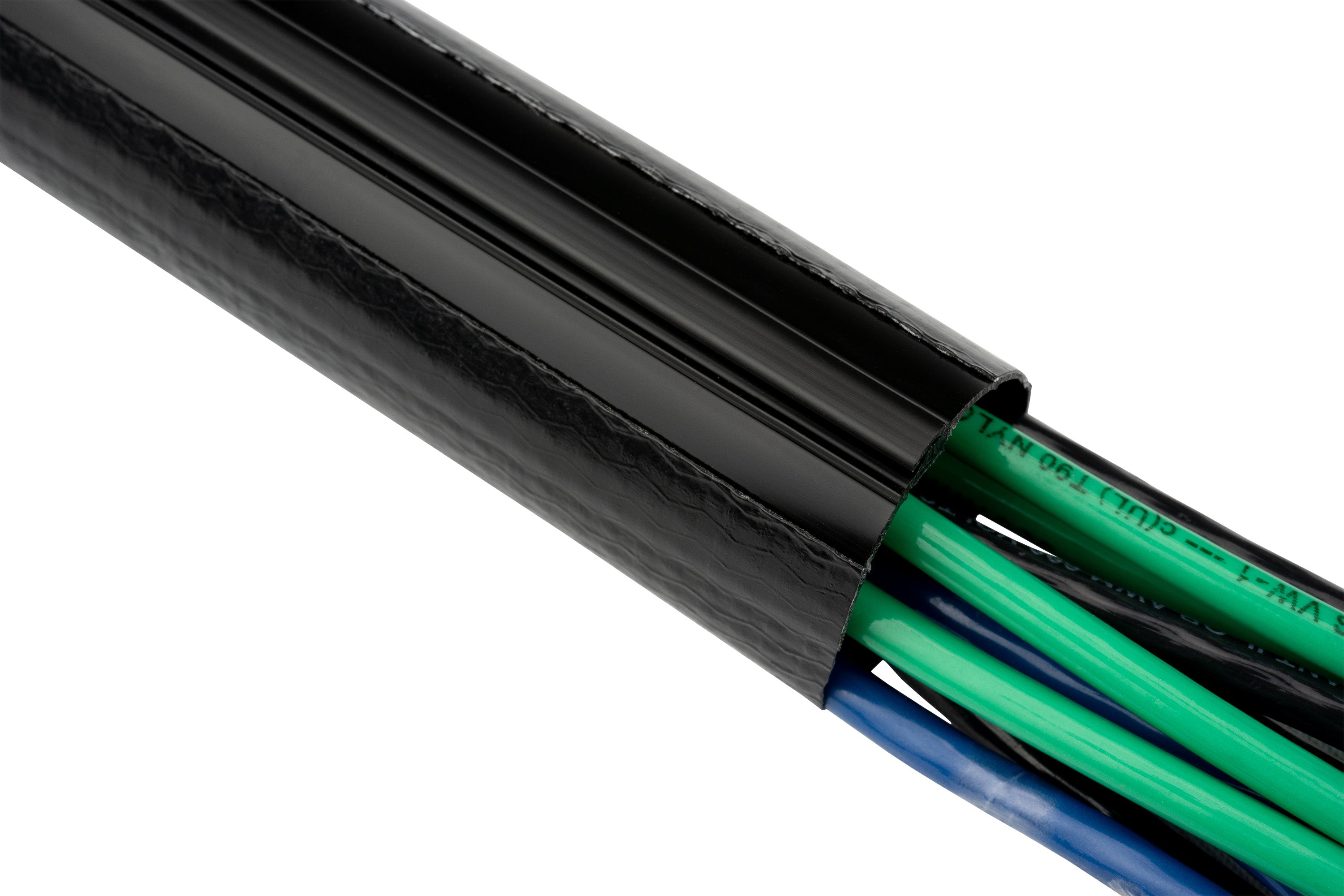

  • Provides secure seal around wires or cables

EZ-Track™ (PVC) is a pressure track made from a single extruded polyvinylchloride compound to create a secure closure system. The thermoplastic PVC material is fire retardant with meeting UL 94, fungus resistant meeting Mil-Std-810D, and has excellence resistance to abrasion. The EZ-Track™ (PVC) is offered with a standard diameter of up to 0.44". However, two EZ-Track™ (PVC) tracks can be combined for up to 1” diameters, or adding to a PVC jacketing for larger diameters. The operational temperature range of -22°F to 221°F (-30°C to 105°C).

Specifications

  • Closure: Pressure Track
  • Elongation: 320%
  • Flame Retardant: UL94 V-0
  • Bundle Size: 0.4375" - 4.0"
  • Height: Medium
  • Color: Black
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 12 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Guides

    How to install EZ-Track™

    As its name implies, EZ-Track® is easy to install. Learn about track closure versus bend location with thes...

    Read more

    Track Closure vs Bend Location for all Zippertubing tracks

    Learn how to properly install Zip-On and Zip-Shield Zippertubing® products. In this article, we also highli...

    Read more
    ZT-Zippertubing

    EZ-Track (PVC) Extruded Pressure Track

    A single-extruded PVC pressure track with an arrowhead and channel locking system.

    Material Sprcification: 2019

    • Fire-retardant and excellent abrasion resistance
    • Fungus resistant meeting Mil-Std-810D
    • Provides secure seal around wires or cables
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Closure: Pressure Track
  • Elongation: 320%
  • Flame Retardant: UL94 V-0
  • Bundle Size: 0.4375" - 4.0"
  • Height: Medium
  • Color: Black
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 12 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • Flexibility: Better
  • DESCRIPTION

    EZ-Track™ (PVC) is a pressure track made from a single extruded polyvinylchloride compound to create a secure closure system. The thermoplastic PVC material is fire retardant with meeting UL 94, fungus resistant meeting Mil-Std-810D, and has excellence resistance to abrasion. The EZ-Track™ (PVC) is offered with a standard diameter of up to 0.44". However, two EZ-Track™ (PVC) tracks can be combined for up to 1” diameters, or adding to a PVC jacketing for larger diameters. The operational temperature range of -22°F to 221°F (-30°C to 105°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
