63-20

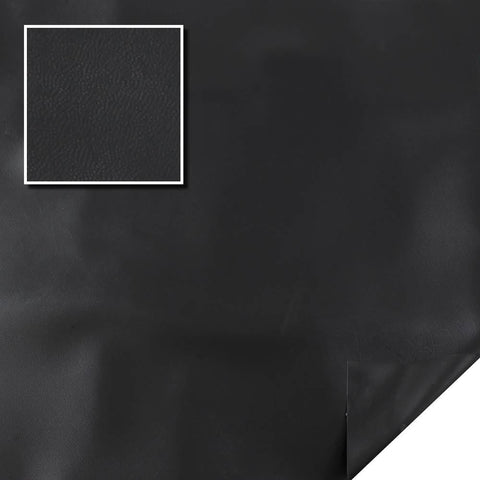

A flexible, medium-weight PVC film that is 20-mil (0.020") thick.

Material Specification: 1001 RoHS

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Overview

  • Meets MIL-I-631D, Type F, Form S, and MIL-I-631, Grade C, Class I, Category 1
  • General purpose jacketing that can be heat sealed to most closure systems
  • Best resistance to abrasion, good resistance to copper corrosion, fluid and fungus

The 63-20 jacketing is a 20-mil (0.020”) thick PVC film that is abrasion resistant, corrosion resistant, fluid resistant, UV stabilized, and contains anti-fungicide. The jacketing material meets specification MIL-I-631D, Type F, Form S, as well as MIL-I-631, Grade C, Class I, Category 1. The 63-20 jacketing has an operational temperature of -4°F to 221°F (-20°C to 105°C). The jacketing also has a dielectric rating of 700 volts/mil, handling up to 14,000 volts, a dielectric constant of 7.0 (1 kilocycle), and a dissipation factor of 0.14 min. (1 kilocycle). 63-20 can be configured for round, flat, or rectangular applications, can be heat sealed together with most closure systems, and can be equipped with an internal overlap flap to meet ground-based military application requirements.

Specifications

  • Mil-Spec: MIL-I-631D, Type F, Form S, Class I
  • REACH: Compliant
  • Copper Corrosion: Meets Mil-I-631D
  • Dielectric Volts/Mil: 700 volt/mil (0.020" thk.)
  • Elongation: 200% min., 450% max
  • Volume Resistivity: 1010 ohms/cm. mm.
  • Flame Retardant: MIL-I-631
  • Fungicide: Does Not Support Growth
  • Color: Black
  • Thickness: 0.020"
  • Material: PVC Extruded Film
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 1,800 psi/min
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    63-10 PFR-18 DVH-20
    NAME 63-10 PFR-18 DVH-20
    DESCRIPTION A flexible, lightweight PVC film that is 10-mil (0.010") thick. Extremely Flexible, Abrasion-Resistant, Polyurethane Film, 18 Mil General Purpose PVC Coated Polyester Jacket, 20 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Better Better
    Min Temperature Low Extreme Moderate
    Minimum Operating Temperature -4°F -67°F -30°F
    Max Temperature Moderate Moderate Low
    Maximum Operating Temperature 221°F 225°F 185°F
    Flexibility Better Good
