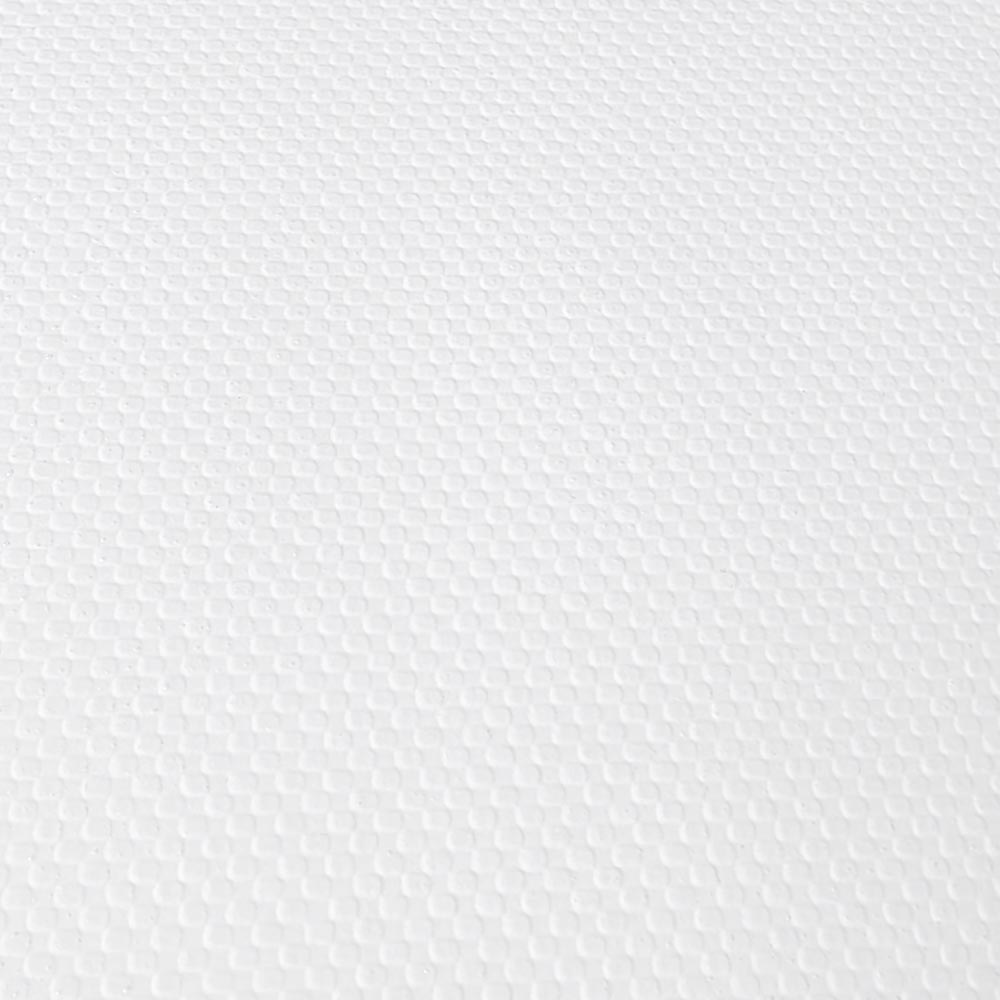

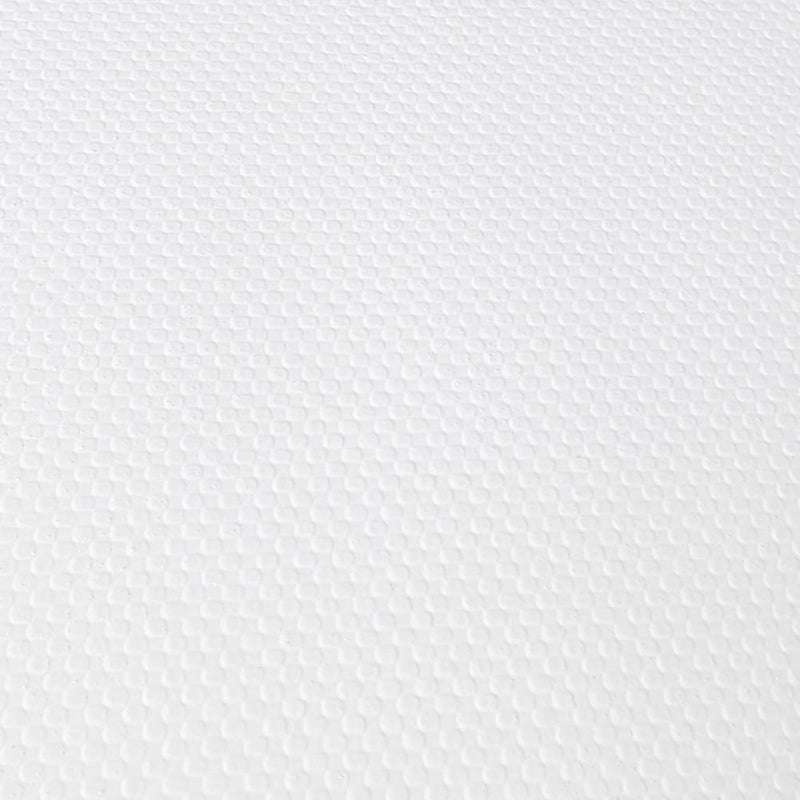

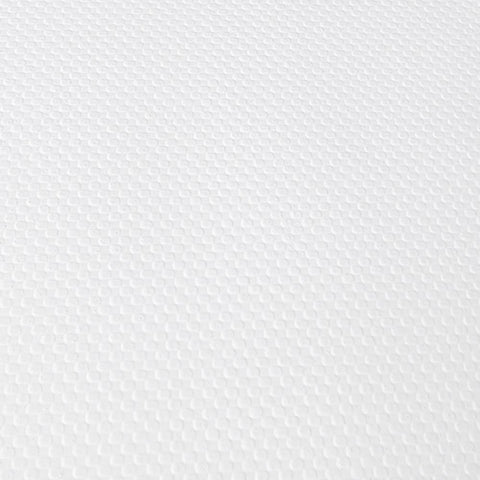

DVH-44 – Heavy Duty PVC Coated Fabric

DVH-44 is a heavyweight PVC-impregnated polyester fabric that delivers rugged abrasion, impact, and weather resistance for protecting cables in the harshest industrial and outdoor environments.

Material Specification: 1142 RoHS

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Print Datasheet Print Datasheet
EMI Shielding
Cable Bundling
Heat Shrink
Heat Shielding
Custom Covers

Overview

  • Durable and abrasion resistant
  • Very resistant to punctures and tearing
  • -40°C to 82°C Operational Limit

DVH-44 is a heavyweight (44-mil) PVC-impregnated Polyester fabric built for tough, outdoor environments. Its thick, flexible construction offers superior resistance to heavy abrasion, impact, and weathering, making it an excellent choice for protecting cables on construction equipment, mining operations, industrial machinery, and other demanding applications.

Supplied standard in white (other colors available), DVH-44 can be tailored to round, flat, or rectangular cable shapes and paired with multiple closure options. It performs reliably across a temperature range of -40°C to 82°C.

Specifications

  • Thickness: 0.044"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tear Strength: 135 lbs (typ)
  • Tensile Strength: 500 lbs (typ – 1.0”)
    • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

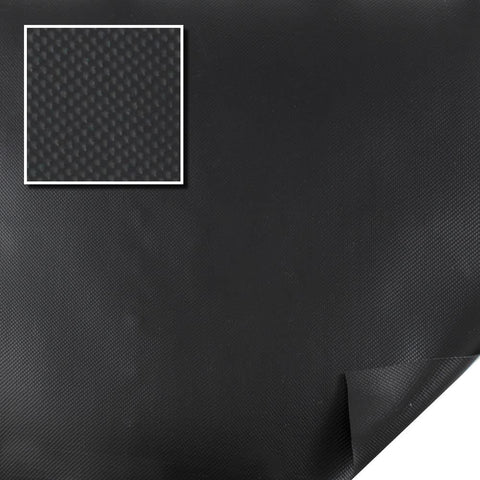

    DVH-40 - PVC Coated Polyester - 40 Mil VNH-23 - PVC Coated Nylon Fabric - 23 Mil SRFG-32 - Silicone Coated Fiberglass Fabric - 32 Mil
    NAME DVH-40 - PVC COATED POLYESTER - 40 MIL VNH-23 - PVC COATED NYLON FABRIC - 23 MIL SRFG-32 - SILICONE COATED FIBERGLASS FABRIC - 32 MIL
    DESCRIPTION Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil Mil-Spec PVC Coated Nylon Jacket, 23 Mil Heavy Duty Silicone Coated Fiberglass Jacket, 32 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Best Better
    Min Temperature Moderate Extreme Extreme
    Minimum Operating Temperature -40°F -65°F -65°F
    Max Temperature Low Low Extreme
    Maximum Operating Temperature 180°F 171°F 449°F
    Flexibility Good Better
    View View View
