DVH-40 - PVC Coated Polyester - 40 Mil

Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil

Material Specification: 1105 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Durable & Good Wear Resistant
  • Outstanding Abrasion & Environmental Resistance
  • Moderate Flexibility
  • -40°C to 82°C Operational Limit

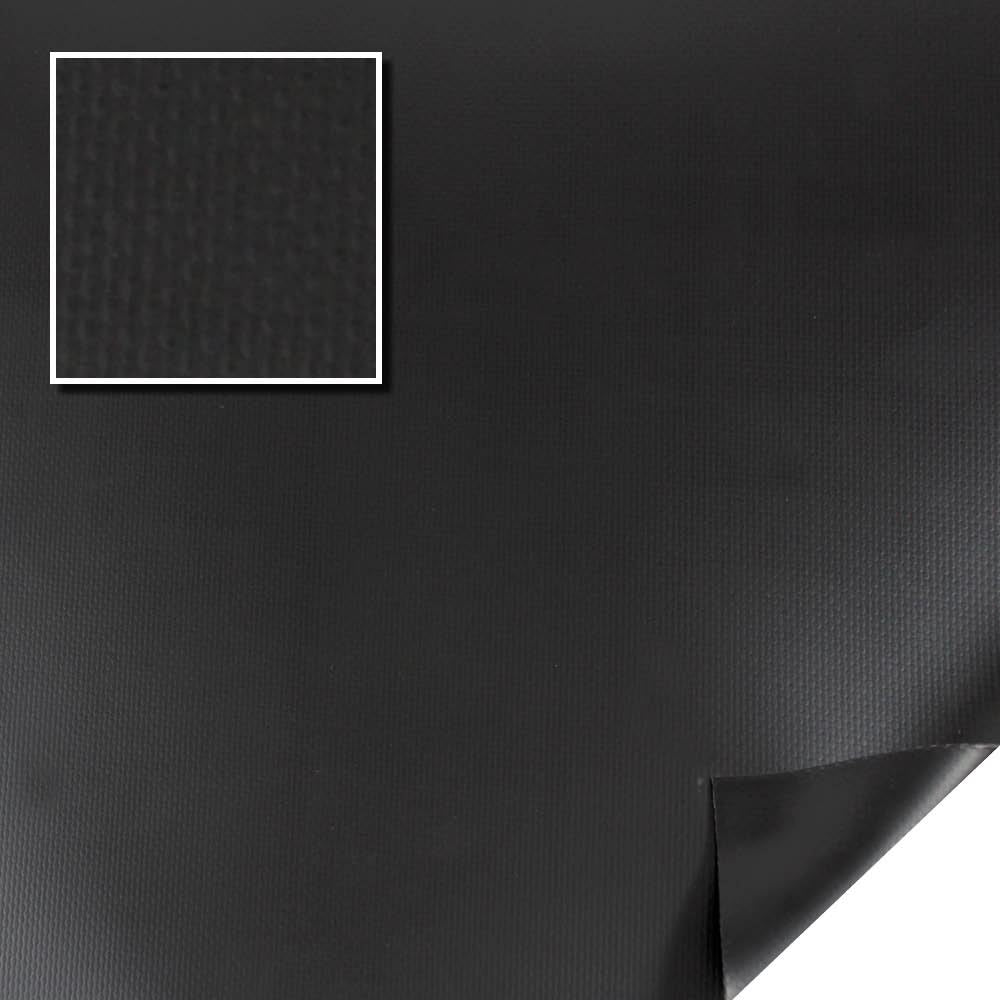

DVH-40 is a heavyweight (40-mil) PVC impregnated Nylon/Polyester commercial fabric which provides a tough, yet flexible outer jacket for wire and cable protection. Ideal for outdoor use where cables are exposed to abuse, abrasion, rock impact, or where good wear resistance is required. DVH-40 is an extremely versatile material that has been used in applications varying from protecting undersea cables to abrasion protection jackets for aircraft service cables that are drug over concrete runway aprons. DVH-40 is available in black and can be configured for round, flat and rectangular cable configurations and utilizes numerous closure styles. The material has an operating temperature range of -40°C to 82°C.

Specifications

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • REACH: Compliant
  • Fungicide: No Growth
  • Thickness: 0.040"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tear Strength: 90 lbs/min (Warp); 125 lbs/min (Fill)
  • Tensile Strength: 385 Warp; 125 Fill
  • Flexibility: Good
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    DVH-20 - PVC Coated Polyester - 20 Mil VNH-23 - PVC Coated Nylon Fabric - 23 Mil SRFG-32  - Silicone Coated Fiberglass Fabric - 32 Mil
    NAME DVH-20 - PVC COATED POLYESTER - 20 MIL VNH-23 - PVC COATED NYLON FABRIC - 23 MIL SRFG-32 - SILICONE COATED FIBERGLASS FABRIC - 32 MIL
    DESCRIPTION General Purpose PVC Coated Polyester Jacket, 20 Mil Mil-Spec PVC Coated Nylon Jacket, 23 Mil Heavy Duty Silicone Coated Fiberglass Jacket, 32 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Better Better
    Min Temperature Moderate Extreme Extreme
    Minimum Operating Temperature -30°F -65°F -65°F
    Max Temperature Low Low Extreme
    Maximum Operating Temperature 185°F 171°F 449°F
    Flexibility Good Better
    View View View
    ZT-Zippertubing

    DVH-40 - PVC Coated Polyester - 40 Mil

    Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil

    Material Sprcification: 1105

    • Durable & Good Wear Resistant
    • Outstanding Abrasion & Environmental Resistance
    • Moderate Flexibility
    • -40°C to 82°C Operational Limit
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • REACH: Compliant
  • Fungicide: No Growth
  • Thickness: 0.040"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tear Strength: 90 lbs/min (Warp); 125 lbs/min (Fill)
  • Tensile Strength: 385 Warp; 125 Fill
  • Flexibility: Good
  • DESCRIPTION

    DVH-40 is a heavyweight (40-mil) PVC impregnated Nylon/Polyester commercial fabric which provides a tough, yet flexible outer jacket for wire and cable protection. Ideal for outdoor use where cables are exposed to abuse, abrasion, rock impact, or where good wear resistance is required. DVH-40 is an extremely versatile material that has been used in applications varying from protecting undersea cables to abrasion protection jackets for aircraft service cables that are drug over concrete runway aprons. DVH-40 is available in black and can be configured for round, flat and rectangular cable configurations and utilizes numerous closure styles. The material has an operating temperature range of -40°C to 82°C.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
