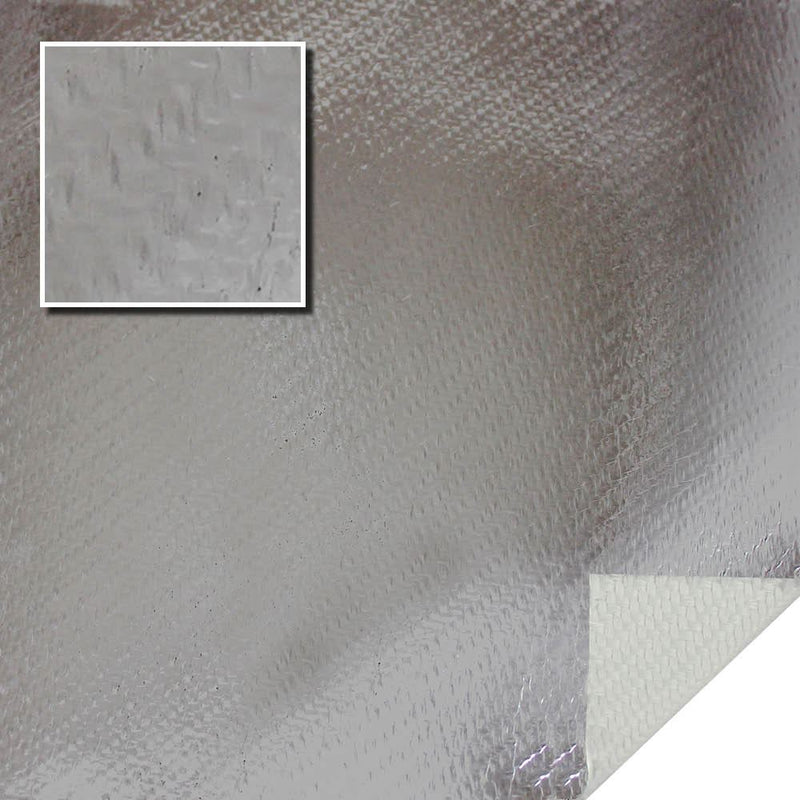

ALHTG-65 High Temp Aluminized Fiberglass Fabric

Name: ALHTG-65 High Temp Aluminized Fiberglass Fabric
Brand: zippertubing
Availability: InStock

Material Specification: 1206 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

High Temperature Heat Reflective Fiberglass
Custom Shapes Available
Many Closures Available
1,202°F (650°C) Operational Limit

ALHTG-65 is a heavy weight, .065" thick, mechanically bonded glass fiber cloth treated with a proprietary coating and laminated on one side with Aluminum Foil for high temperature applications up to 1,202°F (650°C). The base cloth material will stand short-term exposures as high as 1,650°F (899°C). ALHTG-65 is manufactured from long textile glass fibers and contains no binders, thereby, assuring insulation efficiency during extended periods of elevated temperatures; even with direct exposure to fire.

Specifications

REACH: Compliant

Flame Retardant: FED-STD-191 Method 5903

Thickness: 0.065"

Thickness Variance: +/- 0.002"

Maximum Operating Temperature: 1202°F

Minimum Operating Temperature: -32°F

RoHS: RoHS-10

Shelf Life: 60 Months

Tear Strength: 627 lbs/in. (warp) / 571 lbs.in (fill)

Tensile Strength: 10.16/in. (warp) / 8.64/cm (fill)

Flexibility: Better

Thermal Effectiveness

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials


NAME	ALR-550 HIGH TEMP ALUMINIZED E-GLASS	ZIPFLECT HIGH-TEMP POLYESTER FELT CLOTH	SAM-1000 - ALUMINIZED SILICONE COATED FIBERGLASS FABRIC
DESCRIPTION		ZIPFLECT is a lightweight, fire-retardant material laminated to a reflective Aluminum surface for high temperature heat barrier protection.	Rugged, Aluminized Silicone Coated Fiberglass, Up to 240 C
RoHS	RoHS-10	RoHS-10	RoHS-10
Abrasion Resistance	Better		Better
Min Temperature	Extreme	Extreme	Extreme
Minimum Operating Temperature	-50°F	-58°F	-58°F
Max Temperature	Extreme	Moderate	Moderate
Maximum Operating Temperature	1022°F	392°F	464°F
Flexibility	Better		Better
	View	View	View
