AFA-55 Aluminized Fiberglass with Adhesive

A Fully Customizable Aluminized Fiberglass Sheet Complete with a High-Temperature Acrylic Adhesive.

Material Specification: 5016

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • We can cut to any shape or size
  • Polycoated paper release liner for easy application
  • Handles moderate temperatures of -40° to 356°F and flash exposures of 995°F

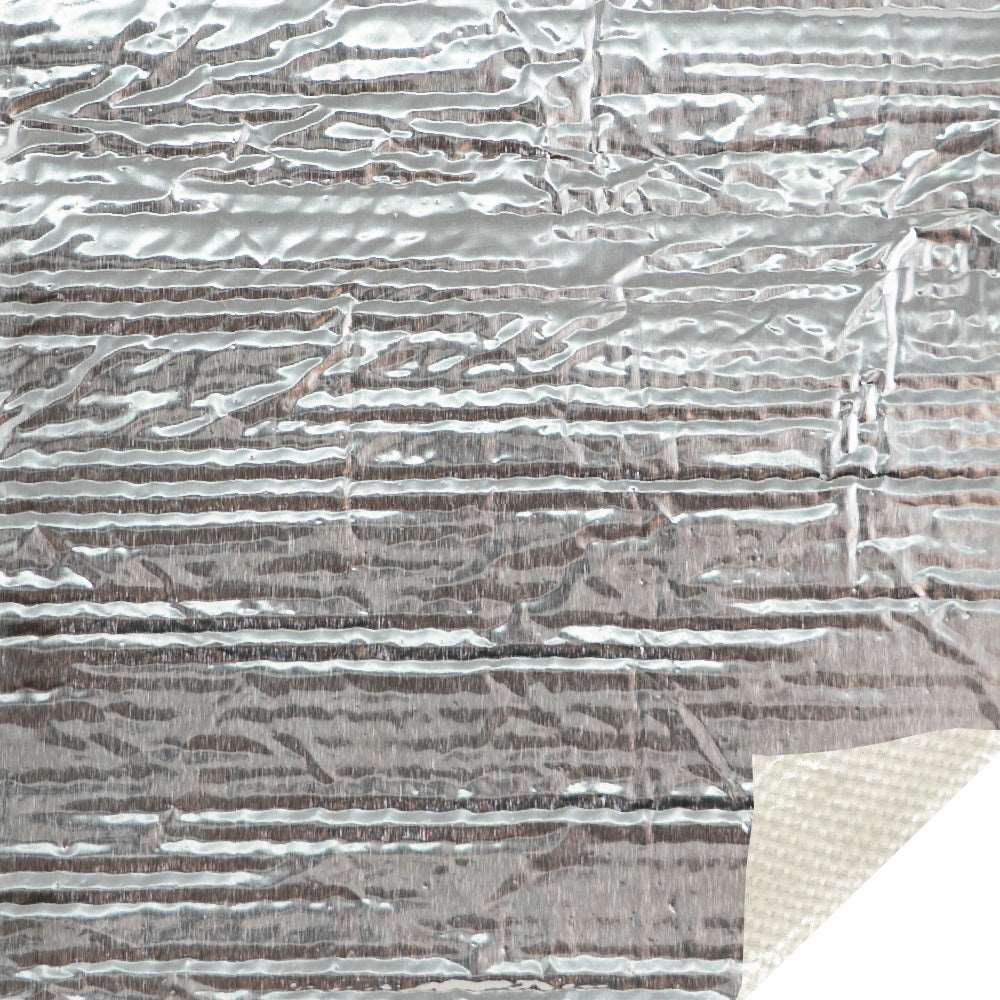

AFA-55 is an aluminized fiberglass sheet that contains a high-temperature acrylic adhesive covered on the backside and a removable paper backing. This material is the perfect customizable heat reflective solution for just about any shape or size you need. The AFA-55 material handles moderate temperatures of -40°F to 356°F (-40°C to 180°C) and flash exposures of 995°F (535°C).

Specifications

  • Weight: 530 +/- 10% g/m
  • Closure: Acrylic Adhesive
  • Thickness: 0.022"
  • Maximum Operating Temperature: 356°F
  • Minimum Operating Temperature: -40°F
  • Tensile Strength: 70 +/- 30% N/cm
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    ALK-19 Heat Reflective Woven Kevlar Fabric ALP-500 Aluminized Fiberglass Heat Shielding ALS-5 Flexible Aluminized Fiberglass Heat Shielding
    NAME ALK-19 HEAT REFLECTIVE WOVEN KEVLAR FABRIC ALP-500 ALUMINIZED FIBERGLASS HEAT SHIELDING ALS-5 FLEXIBLE ALUMINIZED FIBERGLASS HEAT SHIELDING
    DESCRIPTION High Strength Heat Reflective Woven Kevlar Fabric, Up to 177°C Aluminized Fiberglass Heat Barrier, Up To 180°C A thin, highly flexible aluminized fiberglass heat shielding material; shields up to 350°F (177°C).
    RoHS RoHS-11
    Abrasion Resistance Good Best Good
    Min Temperature Extreme Extreme Extreme
    Minimum Operating Temperature -321°F -58°F -58°F
    Max Temperature Moderate Moderate Moderate
    Maximum Operating Temperature 350°F 350°F 350°F
    Flexibility Best Better Best
    View View View
    ZT-Zippertubing

    AFA-55 Aluminized Fiberglass with Adhesive

    A Fully Customizable Aluminized Fiberglass Sheet Complete with a High-Temperature Acrylic Adhesive.

    Material Sprcification: 5016

    • We can cut to any shape or size
    • Polycoated paper release liner for easy application
    • Handles moderate temperatures of -40° to 356°F and flash exposures of 995°F
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Weight: 530 +/- 10% g/m
  • Closure: Acrylic Adhesive
  • Thickness: 0.022"
  • Maximum Operating Temperature: 356°F
  • Minimum Operating Temperature: -40°F
  • Tensile Strength: 70 +/- 30% N/cm
  • Flexibility: Better
  • DESCRIPTION

    AFA-55 is an aluminized fiberglass sheet that contains a high-temperature acrylic adhesive covered on the backside and a removable paper backing. This material is the perfect customizable heat reflective solution for just about any shape or size you need. The AFA-55 material handles moderate temperatures of -40°F to 356°F (-40°C to 180°C) and flash exposures of 995°F (535°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
