Assists in closing Zip-On (FIT) cable sleeving

Zip-On (FIT) Cable Protection

Name: Zip-On (FIT) Cable Protection
Brand: Zippertubing
SKU: ZT24-11-001-6-2-013-G-X15.0M
Availability: InStock

A wrap-around cable bundling solution that easily integrates with T-Slot framing rails.

Drawing Number:

Select product options

Length:

Please fill in at least one field.

Diameter: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Quantity:

Selected Part Number:ZT24-11-001-6-2-013-G-X15.0M

Get A Quote

Print Datasheet

WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

Cable bundling and protection that connects to T-Slot frame hardware.
Easy to install and remove with no tools required.
Abrasion, fluid, and flame-resistant tubing to protect wires, cables, and hoses.

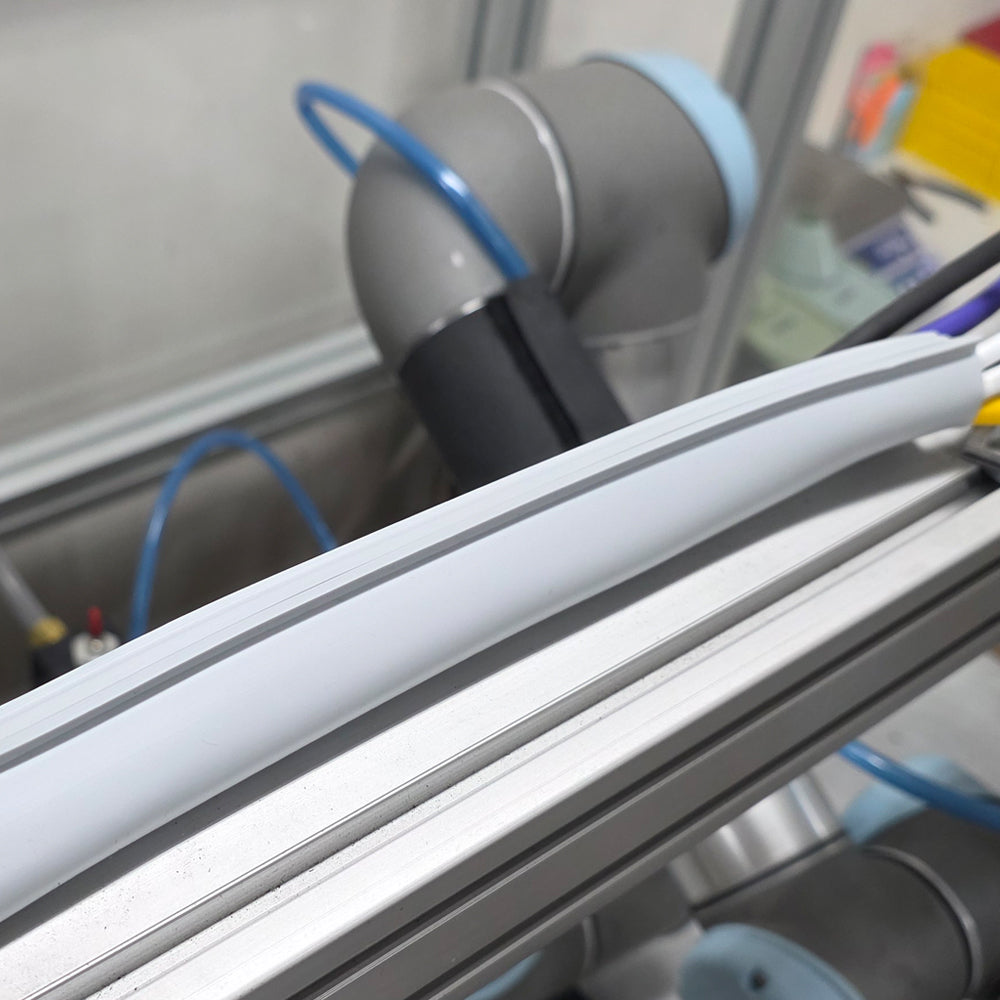

Zip-On (FIT) is a clean, secure way to route and protect cables directly on your framing rails. Designed for fast, simple installs during system integration or in the field, this sleeving wraps around cables, wires, and hoses, then push-fits into the T-slot grooves—so no disassembly or re-wiring is needed to add this solution. Zip-On (FIT) jacketing can be installed by hand, or with a simple installation tool for longer runs.

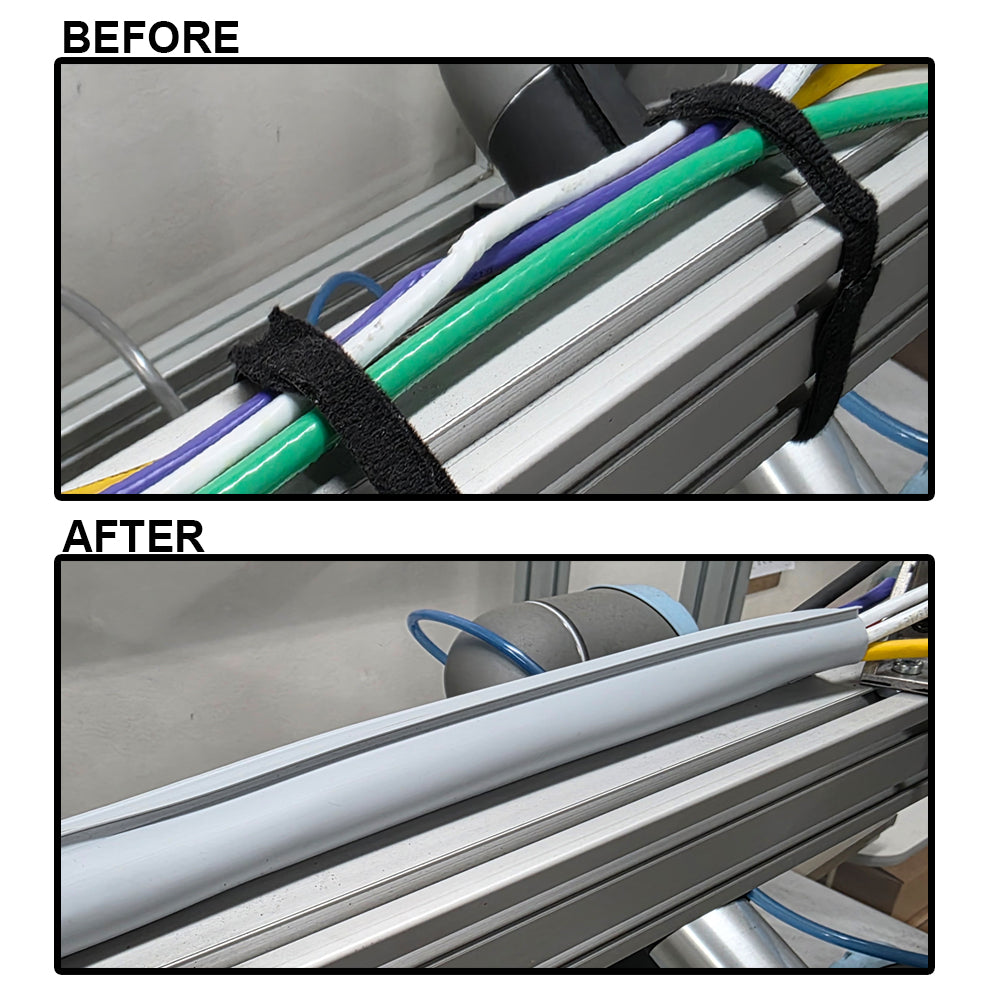

Built for tough environments, the sleeve is fluid-resistant, abrasion-resistant, and flame-resistant, making it a smart choice for machinery guards, automation cells, conveyor lines, and lab fixtures. Molded corner pieces extend protection around 90° turns, keeping bend radii smooth and consistent while eliminating snag points. Compared to alternatives like zip ties, Velcro wraps, tie bases, and cable straps, this solution protects better, lasts longer, and is easier to install.

Zip-On (FIT) comes in several diameters and size configurations compatible with the most common slotted framing systems—including Bosch Rexroth, 80/20, and T-Slots. Choose the size that matches your rail, snap it in, and you’re done—a clean, protected cable path that looks as good as it performs.

Features

Easy to install and re-configure as needed
Fits most common aluminum rail extrusions
Available in several different sizes, colors, and configurations

Benefits

Complete 360° protection for wires, cables, and hoses
Flexible, durable, and flame retardant
Outperforms cable ties and hook-and-loop wraps

Installation Instructions

Specifications

Overall Performance

Cable Diameter: 0.375" (3/8)
Elongation: 250% Minimum
Material: FIT – PVC Film
Flame Retardant: UL224 VW-1 Equivalent
Thickness: 0.028"
Maximum Operating Temperature: 140°F
Minimum Operating Temperature: 5°F
RoHS: RoHS-10
Shelf-Life: 36 Months

FIT – PVC Film

Elongation: 250% Minimum
Flame Retardant: UL224 VW-1 Equivalent
Material: PVC Extruded Film
Color: Gray, Black, White, Yellow, Blue
Thickness: 0.028"
Maximum Operating Temperature: 140°F
Minimum Operating Temperature: 5°F
RoHS: RoHS-10
Shelf Life: 36 Months

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
