Z-7200

Non-Magnetic, Halogen-Free and Hypoallergenic Conductive EMI Shield Cloth

Material Specification: 3211 RoHS

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Overview

  • Nickel Free & Hypoallergenic
  • Fray Resistant
  • High Flexibility
  • Avg. 60dB Attenuation (10MHz-18GHz)
  • -40°C to 150°C Temperature Range

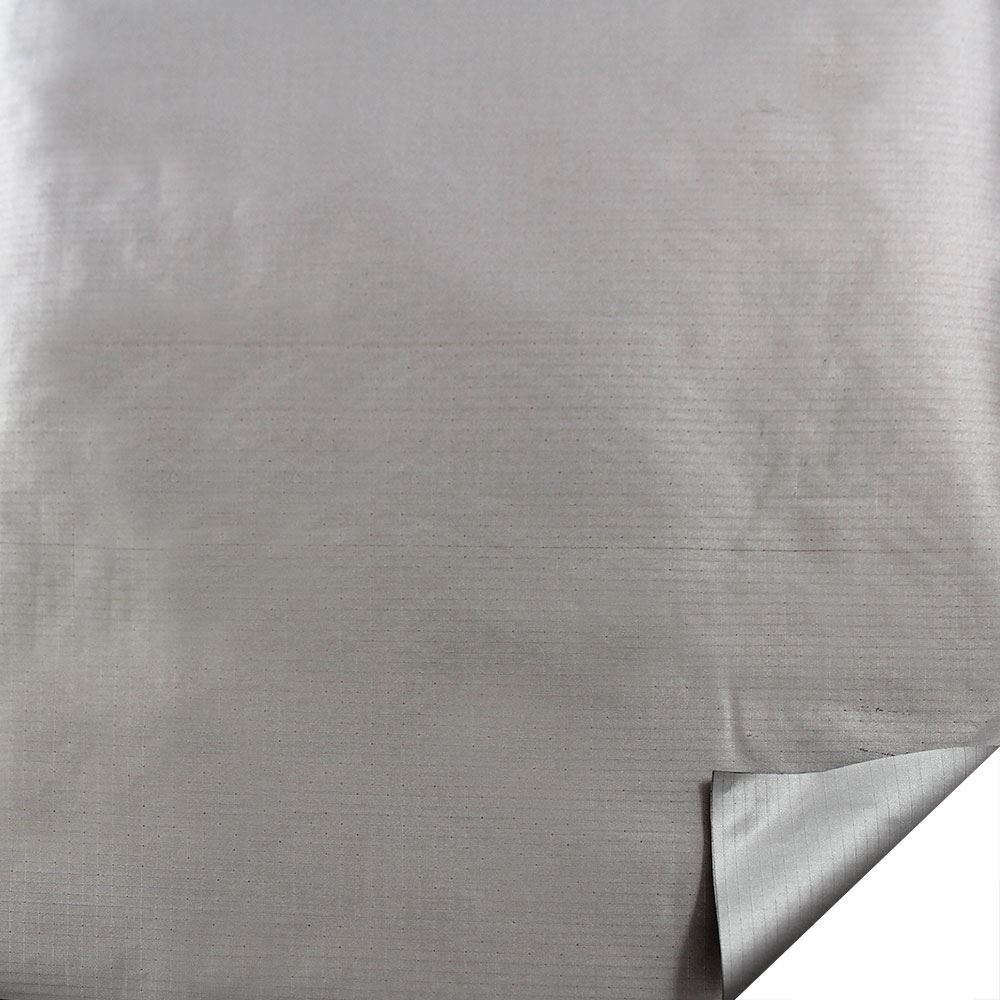

Z-7200 EMI Shielding fabric is a .005 inch thick woven Copper plated Nylon rip stop material with a proprietary Silver colored, non-magnetic corrosion resistant top coating. This product is fray resistant and contains no Nickel. Z-7200 is Halogen Free and Hypoallergenic. The product is ideal for EMI shielding assemblies that cannot contain magnetic materials or where the shield will be handled extensively. Non-magnetic shielding materials are extremely useful in EMI hardening components of sensitive GPS navigation systems and earthquake monitoring equipment that are easily upset by nearby magnetic materials. Z-7200 will not cause skin irritation like similar Nickel plated products. The thin woven construction makes it extremely flexible, yet very strong and is capable of operational temperatures of -40°C to 150°C (200°C/minutes). Z-7200 will provide shielding attenuation levels averaging 60dB from 10MHz to 18GHz. Z-7200 can be incorporated on a custom basis into numerous Zippertubing® standard product types like Z-Shield, Shrink-N-Shield, PRT-S, Shielded ZT-Tape and any of our standard jackets/closure types.

Specifications

  • Ratings: Commercial
  • Global Coating: Copper Plated
  • Break Strength: 25 x 50 lbs/in
  • REACH: Compliant
  • Dielectric Volts/Mil: Conductive <0.1 ohm/sq
  • Material: Cloth
  • Thickness: 0.005"
  • Material: Copper-Plated Nylon Rip-Stop
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shielding: Z-7200
  • Shielding Effectiveness

    ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.
    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    Z-5080 Z-3250 Z-7200
    NAME Z-5080 Z-3250 Z-7200
    DESCRIPTION Flame Retardant EMI Shielding Cloth, Ni/Cu/Modacryl High Performance EMI Shielding Cloth, Ni/Cu/Polyester Non-Magnetic, Halogen-Free and Hypoallergenic Conductive EMI Shield Cloth
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best Best
    Min Temperature Moderate Moderate Moderate
    Minimum Operating Temperature -22°F -40°F -40°F
    Max Temperature Moderate Moderate Moderate
    Maximum Operating Temperature 248°F 250°F 302°F
    Flexibility Best Best Best
    View View View
