Z-5080 Ni/Cu/Modacryl EMI Shielding Cloth

Name: Z-5080 Ni/Cu/Modacryl EMI Shielding Cloth
Brand: zippertubing
Availability: InStock

Flame Retardant EMI Shielding Cloth, Ni/Cu/Modacryl

Material Specification: 3206 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Flame Retardant Treated
Good EMI Shielding (10 MHz - 20 GHz)
Thin with Good Flexibility
Many Shapes & Sizes

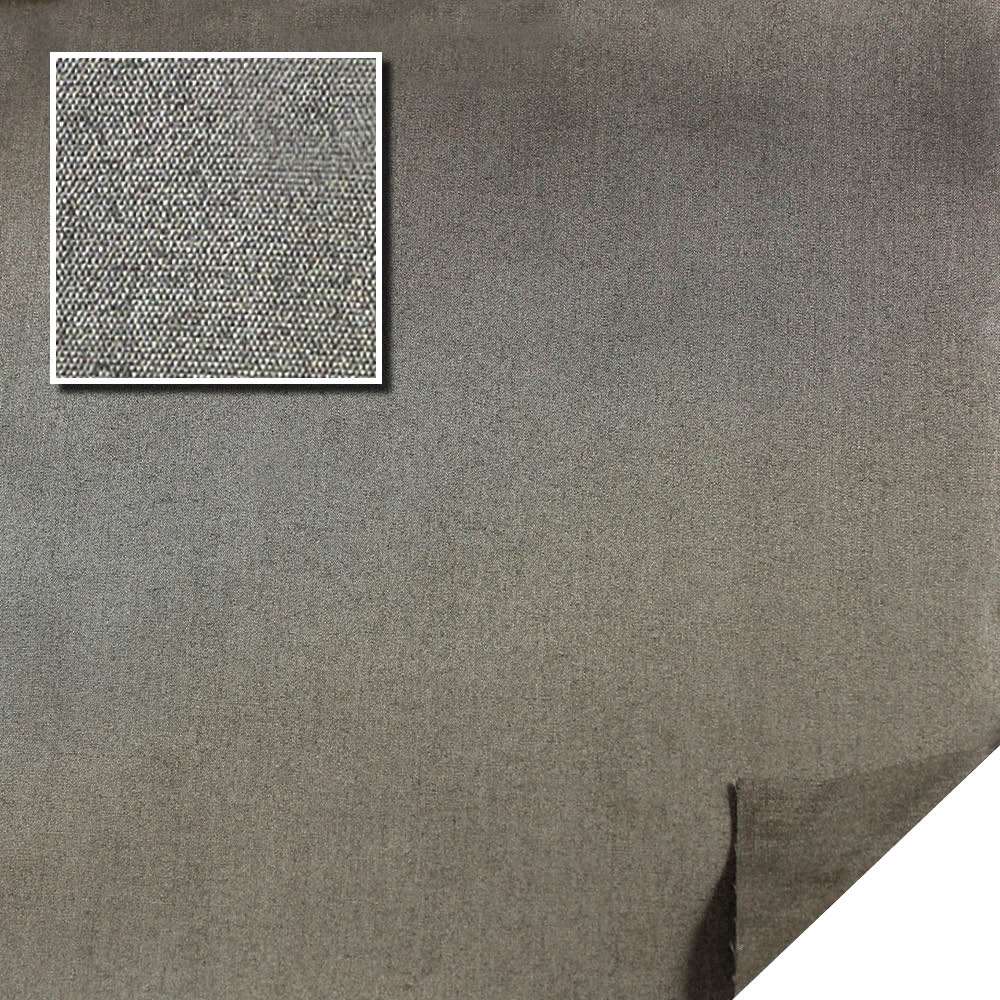

Z-5080 is a Nickel over Copper plated chopped Modacryl fiber EMI shielding cloth approximately .009 inch thick. The material has a proprietary fire retardant treatment making it ideal for applications where flame retardency is an issue. The surface resistance is less than 0.1 ohms/square, it provides shield coverage of approximately 85% and exhibits good attenuation performance in the 10 MHz to 20 GHz range. The delicate chopped construction of this material requires that it be combined with one of Zippertubing's many jacketing products to achieve good service life. The operational temperature range is -22°F to 248°F. This material is Ideal for applications where flammability is the principle concern.

Specifications

Denier: 40

Weight: 13.8 gm/sq. ft.

Base Fabric: Modacryl

Surface Resistivity: <0.1 omh/sq.

Coating: Nickel over Copper (2.0 gm/sq. ft. | Copper & 0.06 gm/sq. ft. | Nickel)

REACH: Compliant

Elongation: 24% (Warp); 31% (Fill)

Flame Retardant: UL94 VTM-O

Material: Cloth

Thickness: 0.009"

Maximum Operating Temperature: 248°F

Minimum Operating Temperature: -22°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: Z-5080

Tensile Strength: 61.7 lbs/in (Warp); 33.1 lbs/in (Fill)

Weave: Taffeta

Shielding Effectiveness: 65-75 db avg. (1 MHz - 18 GHz)

Flexibility: Best

Shielding Effectiveness

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials

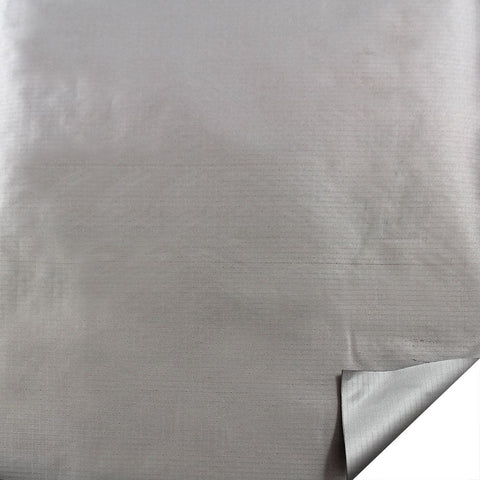

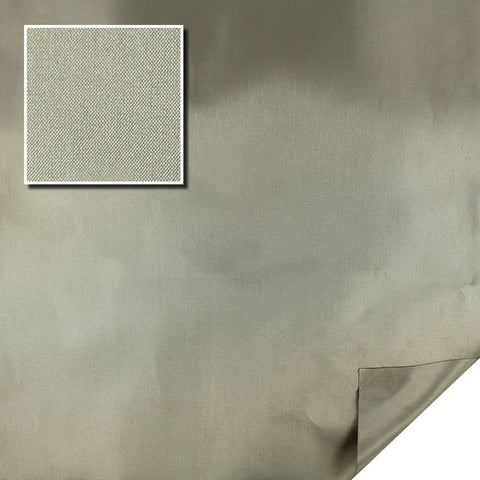

NAME	Z-3250 NI/CU/POLYESTER EMI SHIELDING CLOTH	Z-7200 HALOGEN-FREE EMI SHIELDING CLOTH	Z-5080 NI/CU/MODACRYL EMI SHIELDING CLOTH
