Snap-Grip® Cable Bundling

A lightweight, PVC-coated cable bundling and protection solution that is available in a range of colors and is equipped with nylon snaps for easy re-entry.

Drawing Number(s): ZT21-08-002

Snap-Grip® Cable Bundling
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT21-08-002-4.0-G-X300.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

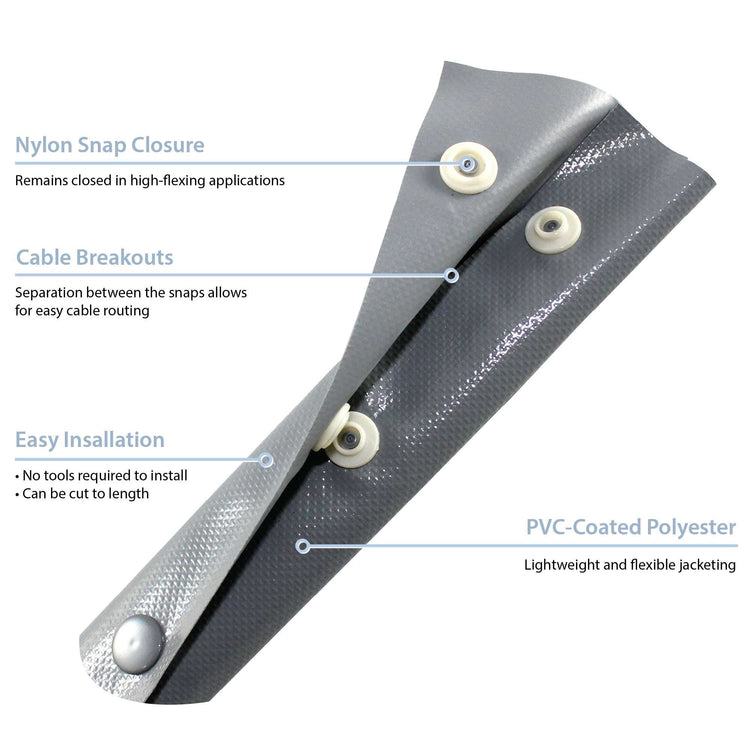

Snap-Grip infographic
  • Easy to install snap-button closure that requires no tools and can be cut to length
  • Good abrasion properties with excellent flexibility
  • An economical flame retardant cable bundling solution that offers breakouts for multiple wires

Snap-Grip® is completely customizable polyester, PVC-coated cable management solution equipped with nylon snap buttons. The jacketing is a lightweight, abrasion-resistant material that is strong enough to withstand high flexing conditions. Snap-Grip® is available in six colors, as well as a clear option. If your applications may require color coding to indicate certain precautions, or if you are simply looking for a more colorful way to bundle wires or cables, these options are a great choice. The nylon snap buttons enable quick application. Snap-Grip® requires no tools, allowing for fast, clean installation. Because of the spacing between snaps, you can easily cut to any length required.

Snap-Grip® is ideal for a variety of applications and environments. From an office to a server room, Snap-Grip® can be quickly and easily assembled while still supporting breakouts and access to the components inside. Snap-Grip® organizes and bundles while also protecting from abrasion. Keep in mind, a Snap-Grip® product can be made from any our jacketing materials to fit your specific requirements.

Snap-Grip® is available for diameters ranging from 0.375” to 4”, with custom sizes and lengths available upon request, and it has an operational temperature range of -40°F to 179°F (-40°C to 92°C).

If your application requires EMI shielding, we offer Snap-Grip® (Al), or if the application requires heat shielding, we also offer Snap-Grip® (SAM-1000).

Q:  What lengths of Snap-Grip jacketing are available?

A:  Snap-Grip comes in standard spool lengths of 25’, 50’, 100’, and 164’.  Custom lengths can also be provided, just make sure to ask when ordering or include details on the PO for the lengths required.

Q:  Can I cut the tubing?

A:  Yes.  Standard scissors are suitable for cutting through Snap-Grip sleeves.

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Snap-Grip products.
The flexible jacketing material allows for extreme amounts of bending and flexing. The bend radius of the installed sleeving is typically dictated by the harness it is covering.

Q:  Is the snap spacing standard or can I have them spaced closer or further apart?

A:  For every material and diameter of Snap-Grip there is a “standard” snap spacing but we can custom adjust the spacing and amount of the snaps to optimize for your installation.

show more >>

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: Nylon Snaps
  • Dielectric Constant: 3.34 @ 50 Hz
  • Elongation: 30% (warp & fill)
  • Material: PVC-coated PET
  • Thickness: 0.014"
  • Maximum Operating Temperature: 179°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months
  • Tensile Strength: (Tongue) 17.75 lbs. (Warp) & 13.25 lbs. (Fill)

PVC-coated PET

  • Base Fabric: Polyester (PET)
  • Surface Resistivity: 1.6 x 10-14 ohms-sq/cm.
  • Coating: Polyvinylchloride
  • Dielectric Volts/Mil: 3.34 @ 50 Hz
  • Elongation: 30% (Warp & Fill)
  • Flame Retardant: UL94, VTM -0
  • Thickness: 0.014"
  • Maximum Operating Temperature: 179°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Tensile Strength: Tounge - 17.75 lbs. (Warp) & 13.25 lbs. (Fill) | Grab - 99.25 lbs. (Warp & Fill)

Nylon Snaps

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -67°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  225°F  302°F
    Flexibility Better  Best  Best
    View  View  View
    Zippertubing
    Snap-Grip infographic

    Snap-Grip® Cable Bundling

    A lightweight, PVC-coated cable bundling and protection solution that is available in a range of colors and is equipped with nylon snaps for easy re-entry.

    Drawing Number(s): ZT21-08-002

    Selected Part Number: ZT21-08-002-4.0-G-X300.0

  • Easy to install snap-button closure that requires no tools and can be cut to length
  • Good abrasion properties with excellent flexibility
  • An economical flame retardant cable bundling solution that offers breakouts for multiple wires
  • Snap-Grip
    Snap-Grip cable management
    Snap-Grip wire harnessing
    Snap-Grip flexible conduit

    Features

  • Easy to secure and re-enter as needed
  • No tools required for installation
  • Operational temperature range of -40°F to 179°F (-40°C to 92°C)
  • Benefits

  • Flexible for high-flexing conditions
  • Range of colors available, as well as clear
  • Custom sizes and diameters available
  • Snap-Grip® Cable Bundling

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
