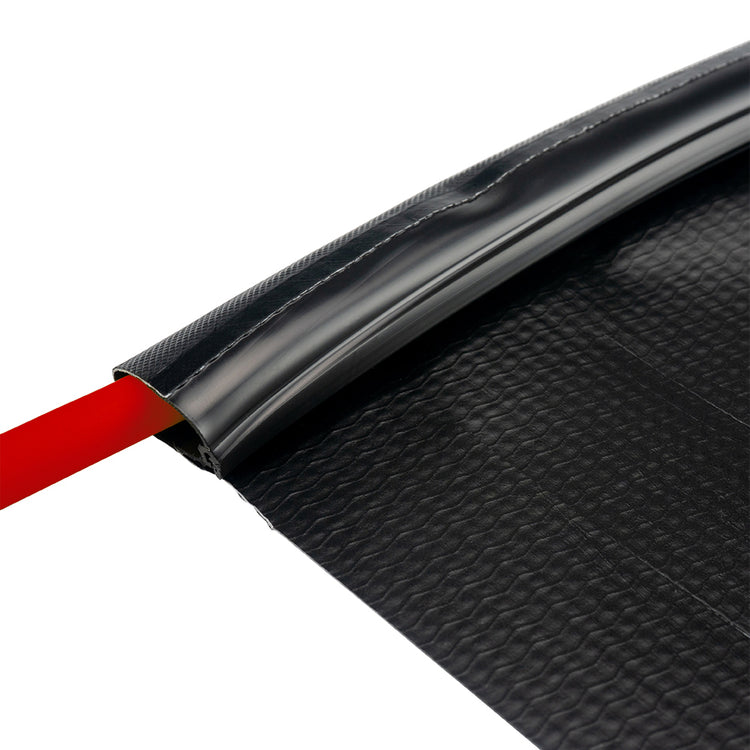

MCF-10 (Z-Track)

Light Duty Moored Cable Fairing, Z-Track Closure, Tidal Surge

Drawing Number(s): ZT94-14-003

RoHS Military Grade

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT94-14-003-0.25-B-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

MCF-10 (Z-Track)
  • Drag and Noise Reduction
  • One Piece Construction
  • Excellent Abrasion & chemical resistance
  • Excellent Flexibility
  • Moored Buoys in Tidal Surge & Currents

The MCF-10 Moored Cable Fairing is designed to significantly reduce the vibration, noise, and drag created by water movement across the tether cable of a moored buoy. The fairing allows underwater instrumentation associated with moored platforms to work to their full potential.

The MCF-10 material offers good wear resistance, high tear strength, flexibility, and oil and hydrocarbon resistance, in addition to being impervious to saltwater. The MCF-10 fairings long lengths and flexibility allows for an easy installation and is the answer to many tethered cable problems. Refer to Zippertubing’s installation document Moored & Towed Cable Fairings User Guide.

Specifications

Overall Performance

  • Diameter: Custom Size
  • Closure: Z-Track (PVC)
  • Material: PVL-10
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months

PVL-10

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Chemical Resistance: Good
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.010"
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (warp); 100 lbs/min (fill)

Z-Track (PVC)

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 320%
  • Flame Retardant: UL94 V-0
  • Bundle Size: 0.375" - 4.0"
  • Height: Low
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 15 lbf/inch (closure)
  • Length: Up to 200 feet continuous
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
