FEP-10 Teflon Flim - 10 Mil

High Performance FEP Teflon® Film, 10 Mil

Material Specification: 1004 RoHS

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Outstanding Abrasion, Environmental, Chemical & Electrical Properties
  • Non-Flammable
  • Extreme Temperature Performance
  • Low Outgassing
  • Moderate Flexibility

FEP-10 is a clear, high performance FEP Teflon® film material that is extremely chemical and temperature resistant. The product was designed to provide outstanding performance in extremely rugged and demanding environmental applications. FEP-10 offers excellent weatherability, fungus resistance, fluid and chemical resistance and outgases very little under vacuum conditions. FEP-10 is a non-flammable polymer that has an operational temperature range of -238°F to 401°F. It is currently in use on many aerospace programs as well as in commercial building Plenum rated areas. Standard FEP-10 comes with an extruded FEP Teflon® Z-Track closure. It can be combined with other closure styles, although these may reduce the overall performance characteristics. It can be configured for round, flat and rectangular cable configurations and be combined with most Zippertubing EMI Shielding materials to create a jacket that will meet the toughest EMI shielding and environmental requirements.

Specifications

  • Ratings: ASTM D-3368, Type II
  • Surface Resistivity: 1015 ohms/sq @ 23 C 38% RH
  • Dielectric Volts/Mil: 2500 volt/mil
  • Dielectric Constant: 2.15 @ 25 C @ 1000 Hz max.
  • Dielectric Strength: 1800 volts/mil
  • Volume Resistivity: 1017 ohms/cm. @ 170 C min.
  • Flammability: Self-extinguishing

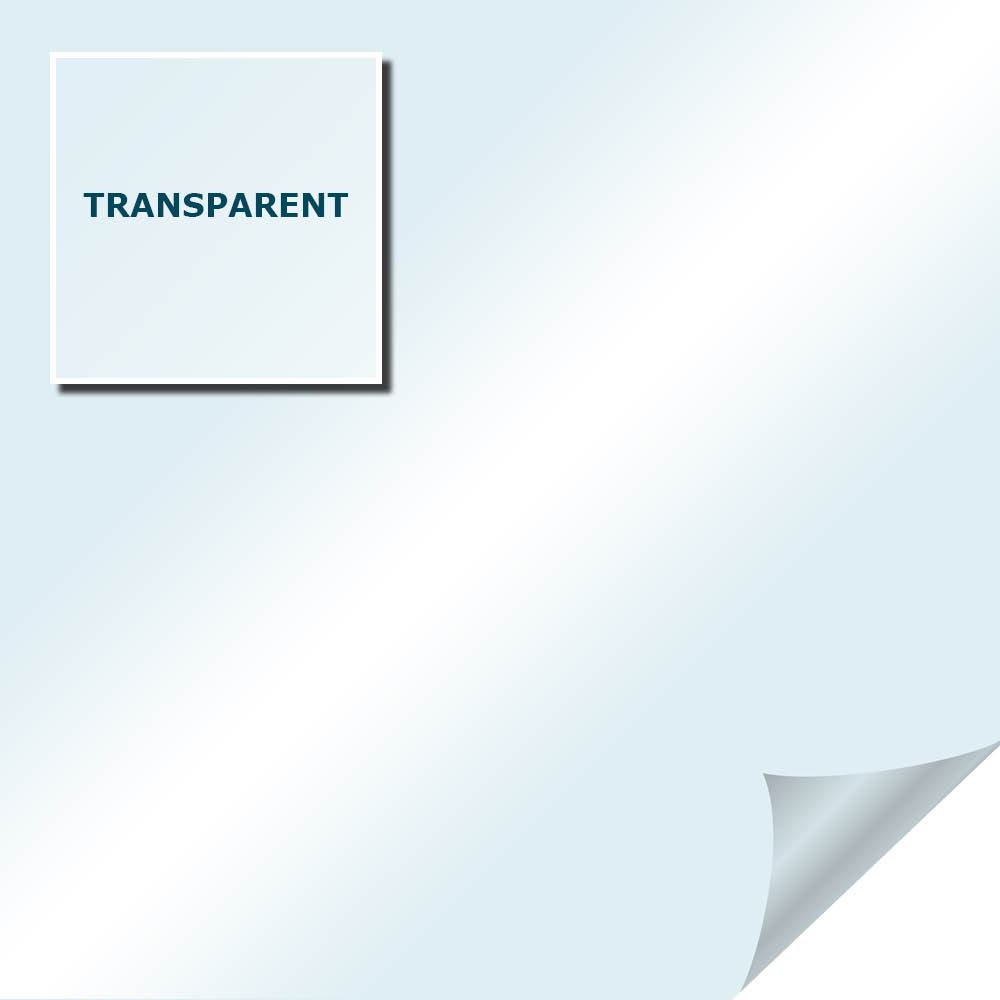

  • Color: Clear
  • Thickness: 0.010"
  • Material: FEP Teflon® film
  • Maximum Operating Temperature: 401°F
  • Minimum Operating Temperature: -238°F
  • Melt Temperature: 500° to 536°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tear Strength: 90 g/mil. min.
  • Dissipation Factor: .0003 @ 25 C @ 1000 Hz max.
  • Tensile Strength: 2500 psi.
  • Flexibility: Good
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    FEP-5 Teflon Film - 5 Mil PTG-5 - PTFE Coated Fiberglass Fabric - 5 Mil TPU-20 Thermoplastic Polyurethane Film - 20 Mil
    NAME FEP-5 TEFLON FILM - 5 MIL PTG-5 - PTFE COATED FIBERGLASS FABRIC - 5 MIL TPU-20 THERMOPLASTIC POLYURETHANE FILM - 20 MIL
    DESCRIPTION A 0.005" thick Teflon® film that is chemical resistant, abrasion resistant, moisture resistant, and non-flammable. High Performance PTFE Coated Fiberglass Jacketing, 5 Mil Flexible, High-Temperature, Flame-Retardant Film, 20 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Better Best
    Min Temperature Extreme Extreme Moderate
    Minimum Operating Temperature -238°F -99.4°F -40°F
    Max Temperature Extreme Extreme Moderate
    Maximum Operating Temperature 401°F 500°F 257°F
    Flexibility Better Good
    View View View
    ZT-Zippertubing

    FEP-10 Teflon Flim - 10 Mil

    High Performance FEP Teflon® Film, 10 Mil

    Material Sprcification: 1004

    • Outstanding Abrasion, Environmental, Chemical & Electrical Properties
    • Non-Flammable
    • Extreme Temperature Performance
    • Low Outgassing
    • Moderate Flexibility
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Ratings: ASTM D-3368, Type II
  • Surface Resistivity: 1015 ohms/sq @ 23 C 38% RH
  • Dielectric Volts/Mil: 2500 volt/mil
  • Dielectric Constant: 2.15 @ 25 C @ 1000 Hz max.
  • Dielectric Strength: 1800 volts/mil
  • Volume Resistivity: 1017 ohms/cm. @ 170 C min.
  • Flammability: Self-extinguishing
  • Color: Clear
  • Thickness: 0.010"
  • Material: FEP Teflon® film
  • Maximum Operating Temperature: 401°F
  • Minimum Operating Temperature: -238°F
  • Melt Temperature: 500° to 536°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tear Strength: 90 g/mil. min.
  • Dissipation Factor: .0003 @ 25 C @ 1000 Hz max.
  • Tensile Strength: 2500 psi.
  • Flexibility: Good
  • DESCRIPTION

    FEP-10 is a clear, high performance FEP Teflon® film material that is extremely chemical and temperature resistant. The product was designed to provide outstanding performance in extremely rugged and demanding environmental applications. FEP-10 offers excellent weatherability, fungus resistance, fluid and chemical resistance and outgases very little under vacuum conditions. FEP-10 is a non-flammable polymer that has an operational temperature range of -238°F to 401°F. It is currently in use on many aerospace programs as well as in commercial building Plenum rated areas. Standard FEP-10 comes with an extruded FEP Teflon® Z-Track closure. It can be combined with other closure styles, although these may reduce the overall performance characteristics. It can be configured for round, flat and rectangular cable configurations and be combined with most Zippertubing EMI Shielding materials to create a jacket that will meet the toughest EMI shielding and environmental requirements.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
