Cross-linked Polyolefin Copolymer

Material Specification: 6013

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview


    An adhesive lined electrical insulation sleeve that will shrink to a pre-determined size upon the application of heat and provide a watertight seal.

    Specifications

  • Dielectric Strength: >12kV/mm
  • Elongation: >350%
  • Fungicide: Pass Rate 1
  • Longitudinal Shrinkage: <10%
  • Material: Cross-linked Polyolefin Copolymer
  • Thickness: 0.048"
  • Thickness Variance: +/- 0.002
  • Maximum Operating Temperature: 212°F
  • Minimum Operating Temperature: -31°F
  • Water Absorption: 0.5% maximum
  • Shrink Ratio: 3:1
  • Tensile Strength: >2460 psi.
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

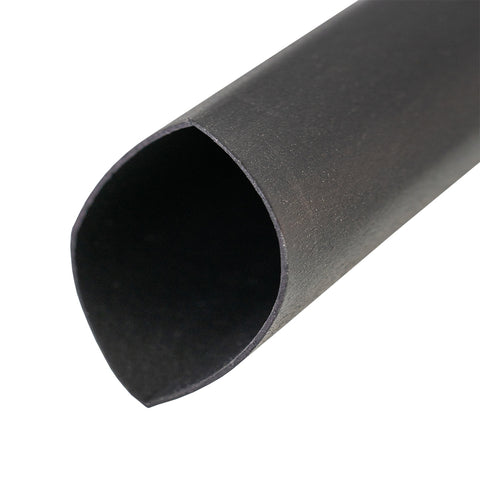

    Polyolefin Heat Shrink Tubing
