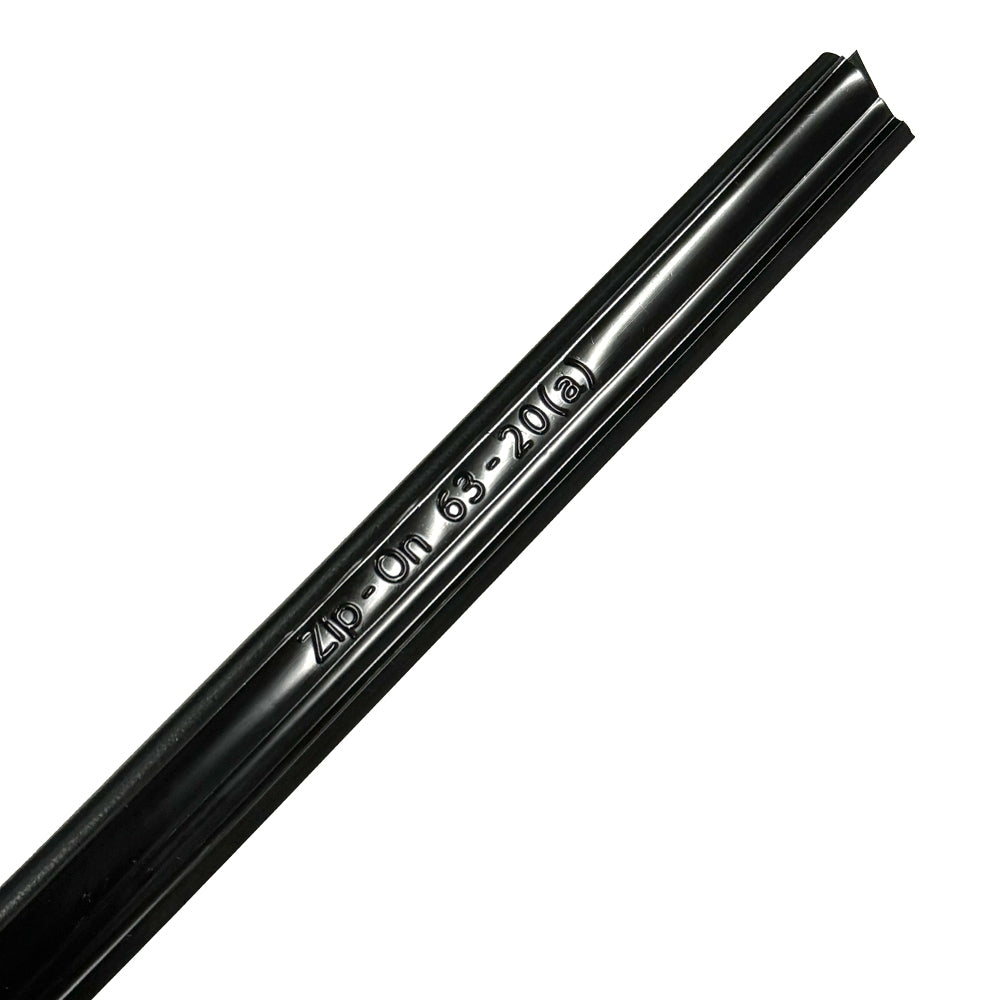

Zip-On® 63-20(a)

Name: Zip-On® 63-20(a)
Brand: Zippertubing
SKU: ZT24-16-012-0.375-B-B
Availability: InStock

A wrap-around PVC cable bundling and protection solution that is abrasion and fluid resistant. Zip-On® 63-20(a) is suitable for voltage separation applications and has a voltage rating of 6,000 V DC.

• Available in diameter sizes 10mm to 100mm
(Custom sizes available upon request)
• Standard roll length: 150 meters

Drawing Number: ZT24-16-012

UL Files: E38368, E545137

Select product options

*Zippertubing recommends adding 0.125 inches (1/8 inch) to your bundle diameter for all track products.

Length:

Please fill in at least one field.

Diameter: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Quantity:

Selected Part Number:ZT24-16-012-0.375-B-B

Get A Quote

Print Datasheet

WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

This product's materials offer the best in both flexibility and in abrasion resistance
Zip-On® 63-20(a) is available in many shapes of installation including round, flat or rectangular shaped
Perfect for all types of general purpose cable bundling applications

Zip-On® 63-20(a) is a wrap-around cable bundling and protection solution that is ideal for nearly any application. This jacketing is best in flexibility, is abrasion resistant, corrosion resistant, fluid resistant, flame retardant and UV stabilized. Zip-On® 63-20(a) can be easily cut to length with a pair of standard scissors.

Zip-On® 63-20(a) is equipped with our Z-Track pressure track closure.

The Z-Track is an arrowhead and channel closure that provides a secure seal and is the strongest pressure track closure Zippertubing® offers. The Z-Track pressure track can be installed with our plier tools.

Features

Can be cut to any length for varying requirements
Voltage rating of 6,000 V DC
Operational temperature range of -4°F to 221°F (-20°C to 105°C)

Benefits

Fungus-, fluid-, abrasion- and corrosion-resistant jacket
Can be utilized for round, flat or rectangular cables
Pressure track has a strong mechanical inter-locking system

Installation Instructions

Specifications

Overall Performance

Cable Diameter: 0.375" (3/8)
Closure: Z-Track (PVC)
Material: 63-20
Flammability: UL224, VW-1, 600V
Maximum Operating Temperature: 221°F
Minimum Operating Temperature: -4°F
RoHS: RoHS-10
Shelf-Life: 36 Months
Voltage Rating (DC): 6,000 V DC derived from UL 758
Voltage Rating (AC): 3,000 V AC derived from UL 758
Minimum Breakdown Voltage: 21,200 V DC per UL746A

63-20

Mil-Spec: MIL-I-631D, Type F, Form S, Class I
REACH: Compliant
Copper Corrosion: Meets Mil-I-631D
Dielectric Volts/Mil: 700 volt/mil (0.020" thk.)
Elongation: 200% min., 450% max
Volume Resistivity: 1010 ohms/cm.
Flame Retardant: MIL-I-631
Fungicide: Does Not Support Growth
Color: Black
Thickness: 0.020"
Material: PVC Extruded Film
Maximum Operating Temperature: 221°F
Minimum Operating Temperature: -4°F
RoHS: RoHS-10
Shelf Life: 36 Months
Tensile Strength: 1,800 psi/min

Z-Track (PVC)

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
