The Zip-Shield® family of products have been field tested for many years and offer many different solutions specific to your needs. They provide excellent EMI/RFI shielding results as an all-in-one cable protection and bundling solution.

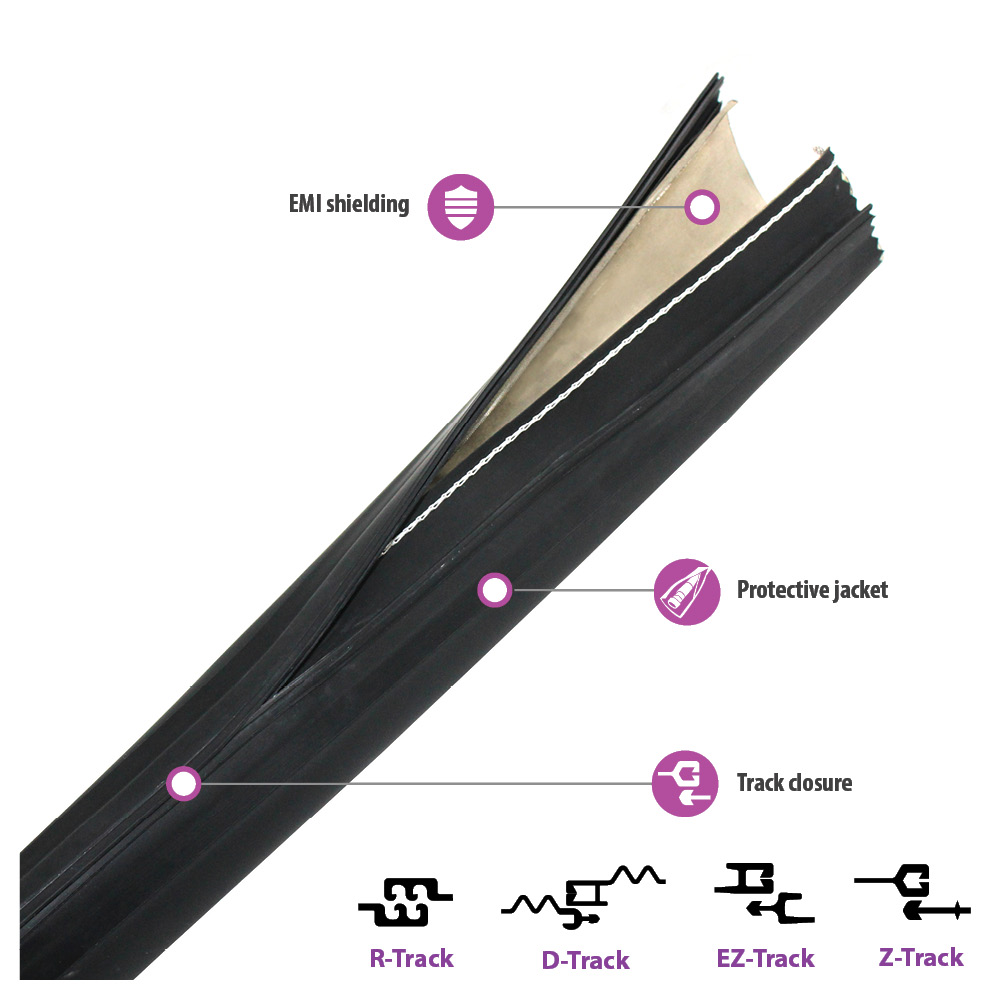

These products feature an exterior protective jacket that is heat sealed to a re-enterable, pressure-track closure system utilizing either our Z-Track™, D-Track-LT, EZ-Track®, or R-Track™. Zip-Shield® is available in a variety of diameters, colors, jacketing materials, and shielding options and, depending on your choice may also include a sewn-in ground wire.
|Flammability||UL224, VW-1, 600V|
Please contact us for custom needs. We have a solution for you!
|Shape of Installation||Flat Round|
|Cable Diameter||0.375" 0.5" 0.625" 0.75" 0.875" 1.0" 1.125" 1.25" 1.375" 1.5" 1.625" 1.75" 1.875" 2.0" 2.125" 2.25" 2.375" 2.5" 2.625" 2.75" 2.875" 3.0" 3.125" 3.25" 3.375" 3.5" 3.625" 3.75" 3.875" 4.0"|
|Exterior Material||63-10 63-20 PFR-18 VNH-23 PTG-5 RPU-17|
|Shielding||Foil Shield w/ 15 AWG Ground SH1 Foil Shield|
|Ground||15 AWG Braided Ground Straps|
|Closure||R-Track Z-Track Z-Track (PFR)|
|Material Color||Black Green Orange Red Tan White Yellow|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitabilituriy for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.
