Zipper (Coil)

Name: Zipper (Coil)
Brand: zippertubing
Availability: InStock

Coil Zipper Plastic

Material Specification: 5201

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Contact Us

Print Datasheet

Overview

Separating Plastic & Brass Zippers
Round, Flat & Rectangular Cable Shapes
Sizes 1/2" & Up; Lengths 100 Ft. Max.
High Strength & Flexing Applications
Best for High Frequency Re-Entry

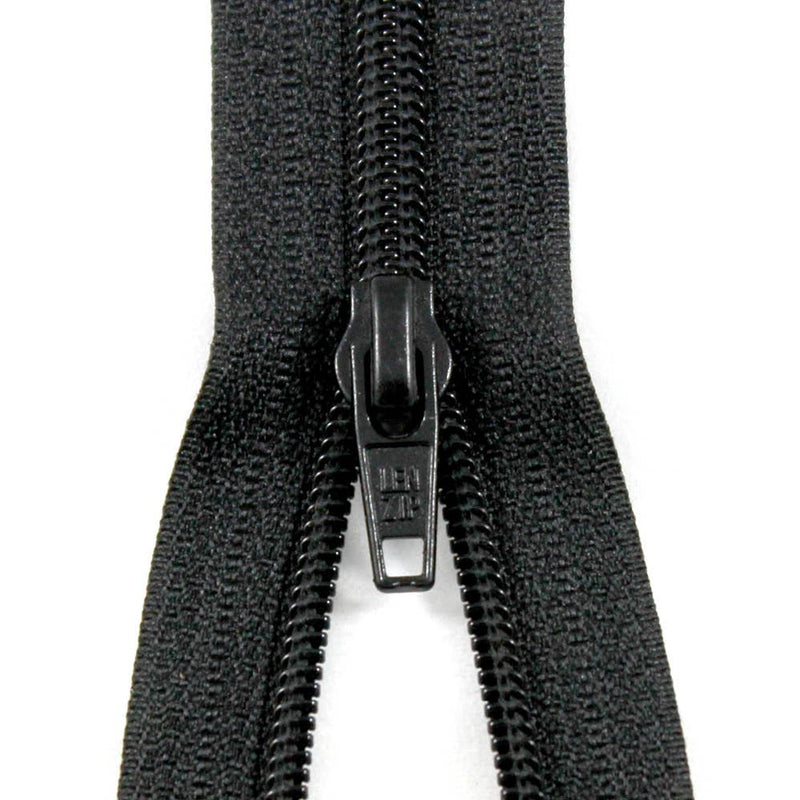

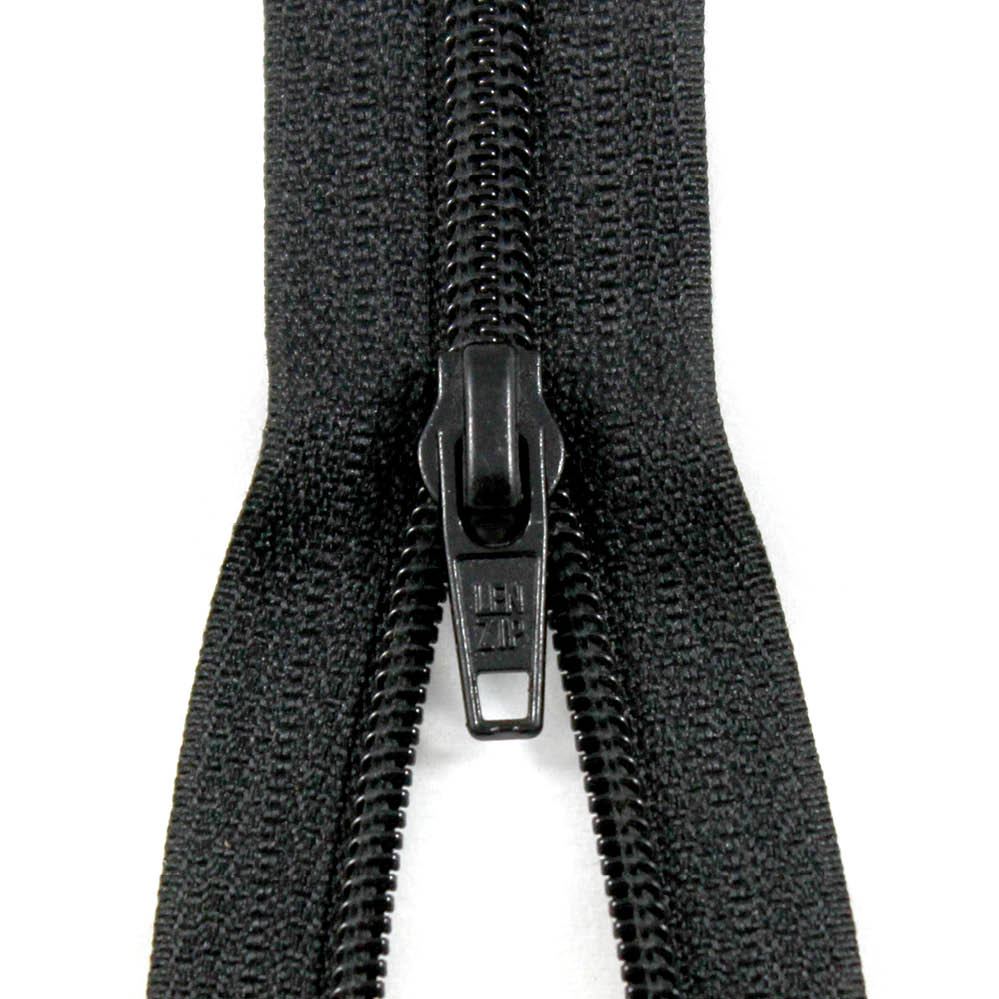

Coil zippers consist of fine, molded Delrin® interlocking coil teeth attached to a separating Polyester fabric tape which has a fixed start and stop point. The zipper is closed via a self-locking slider which make a zipper installation tool free. Coil zippers provide a lightweight, highly flexible, closure system for cables where a tool-free installation is desired and the open/closure cycle frequency is likely to be high. Coil zippers perform the best when limited to cable bundle diameters of 1.0 inch and smaller and on flat ribbon cables of 2.0" wide or less. Coil zippers should only be used in applications that are free of dirt and debris which could cause jamming. For larger and more rugged applications use a "toothed zipper" style. Zippers cannot be cut to length on site at the time of installation so assembly length must be known at the time of order. Zippers items are typically commercial items and meet the manufactures performance specification; however they can be procured in compliance to A-A-55634.

Specifications

Break Strength: 15-20 lbs. l/in (typical)

Stops: Plastic (metal when applicable)

Tooth: Delrin® Plastic, Coil

Slider: Single, Locking, Metal

Tape: 4.5 or 5.0 mm

Material: Fixed (w/Pin & Box & Stops)

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Zipper (Coil)

Coil Zipper Plastic

Material Sprcification: 5201

Separating Plastic & Brass Zippers
Round, Flat & Rectangular Cable Shapes
Sizes 1/2" & Up; Lengths 100 Ft. Max.
High Strength & Flexing Applications
Best for High Frequency Re-Entry

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Break Strength: 15-20 lbs. l/in (typical)

Stops: Plastic (metal when applicable)

Tooth: Delrin® Plastic, Coil

Slider: Single, Locking, Metal

Tape: 4.5 or 5.0 mm

Material: Fixed (w/Pin & Box & Stops)

DESCRIPTION

Coil zippers consist of fine, molded Delrin® interlocking coil teeth attached to a separating Polyester fabric tape which has a fixed start and stop point. The zipper is closed via a self-locking slider which make a zipper installation tool free. Coil zippers provide a lightweight, highly flexible, closure system for cables where a tool-free installation is desired and the open/closure cycle frequency is likely to be high. Coil zippers perform the best when limited to cable bundle diameters of 1.0 inch and smaller and on flat ribbon cables of 2.0" wide or less. Coil zippers should only be used in applications that are free of dirt and debris which could cause jamming. For larger and more rugged applications use a "toothed zipper" style. Zippers cannot be cut to length on site at the time of installation so assembly length must be known at the time of order. Zippers items are typically commercial items and meet the manufactures performance specification; however they can be procured in compliance to A-A-55634.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
