Temp-Mat 100 Percent E-Type Fiberglass

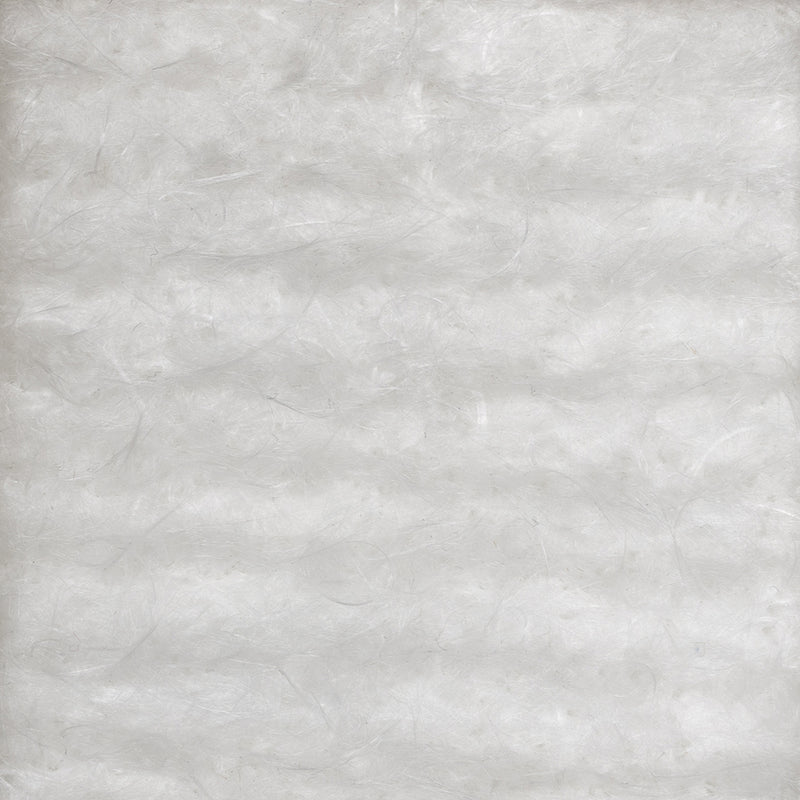

A fiberglass mat made of 100 percent “E” type glass fibers which are put into web form and mechanically needled together without chemical binders.

Material Specification: RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Fiberglass mat composed of 100 percent “E” type fibers
  • Replacement for asbestos mats, millboard and more
  • Conforms with Coast Guard Specification for Incombustible Materials #164.009
  • Conforms with Military Specifications MIL-I-16411 Type II and MIL-I-24244
  • 1,200°F (649°C) operational limit

Temp-Mat, made entirely from “E” type glass fibers, utilizes a web form and is mechanically needled together without chemical binders. Temp-Mat is used where heat resistance, flexibility, low air, liquid chemical and thermal resistance are mandatory—ideal for thermal insulation and gasket material in home and industrial furnaces, package boiler and for special piping applications. The material is an effective replacement for asbestos mats, millboard, ceramic or refractory fiber paper, mat and sheets, and mineral fiber boards. The material conforms with Military Specification MIL-I-16411 Type II and Coast Guard Specification for Incombustible Materials #164.009 and MIL-I-24244.

Temp-Mat has an operational temperature limit of 1200°F (649°C).

Specifications

  • Mil-Spec: MIL-I-16411 Type II , MIL-I-24244
  • Weight: ¼” = 3 oz/ft2 | ½” = 6 oz/ft2 | 1.0” = 15 oz/ft2
  • Construction: “E” type fiberglass
  • REACH: Compliant
  • Flammability: Incombustible
  • Thickness: ¼”, ½”, 1.0”
  • Maximum Operating Temperature: 1200°F
  • RoHS: RoHS-10
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    Temp-Mat 100 Percent E-Type Fiberglass

    A fiberglass mat made of 100 percent “E” type glass fibers which are put into web form and mechanically needled together without chemical binders.

    Material Sprcification: 1211

    • Fiberglass mat composed of 100 percent “E” type fibers
    • Replacement for asbestos mats, millboard and more
    • Conforms with Coast Guard Specification for Incombustible Materials #164.009
    • Conforms with Military Specifications MIL-I-16411 Type II and MIL-I-24244
    • 1,200°F (649°C) operational limit
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: MIL-I-16411 Type II , MIL-I-24244
  • Weight: ¼” = 3 oz/ft2 | ½” = 6 oz/ft2 | 1.0” = 15 oz/ft2
  • Construction: “E” type fiberglass
  • REACH: Compliant
  • Flammability: Incombustible
  • Thickness: ¼”, ½”, 1.0”
  • Maximum Operating Temperature: 1200°F
  • RoHS: RoHS-10
  • DESCRIPTION

    Temp-Mat, made entirely from “E” type glass fibers, utilizes a web form and is mechanically needled together without chemical binders. Temp-Mat is used where heat resistance, flexibility, low air, liquid chemical and thermal resistance are mandatory—ideal for thermal insulation and gasket material in home and industrial furnaces, package boiler and for special piping applications. The material is an effective replacement for asbestos mats, millboard, ceramic or refractory fiber paper, mat and sheets, and mineral fiber boards. The material conforms with Military Specification MIL-I-16411 Type II and Coast Guard Specification for Incombustible Materials #164.009 and MIL-I-24244.

    Temp-Mat has an operational temperature limit of 1200°F (649°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
