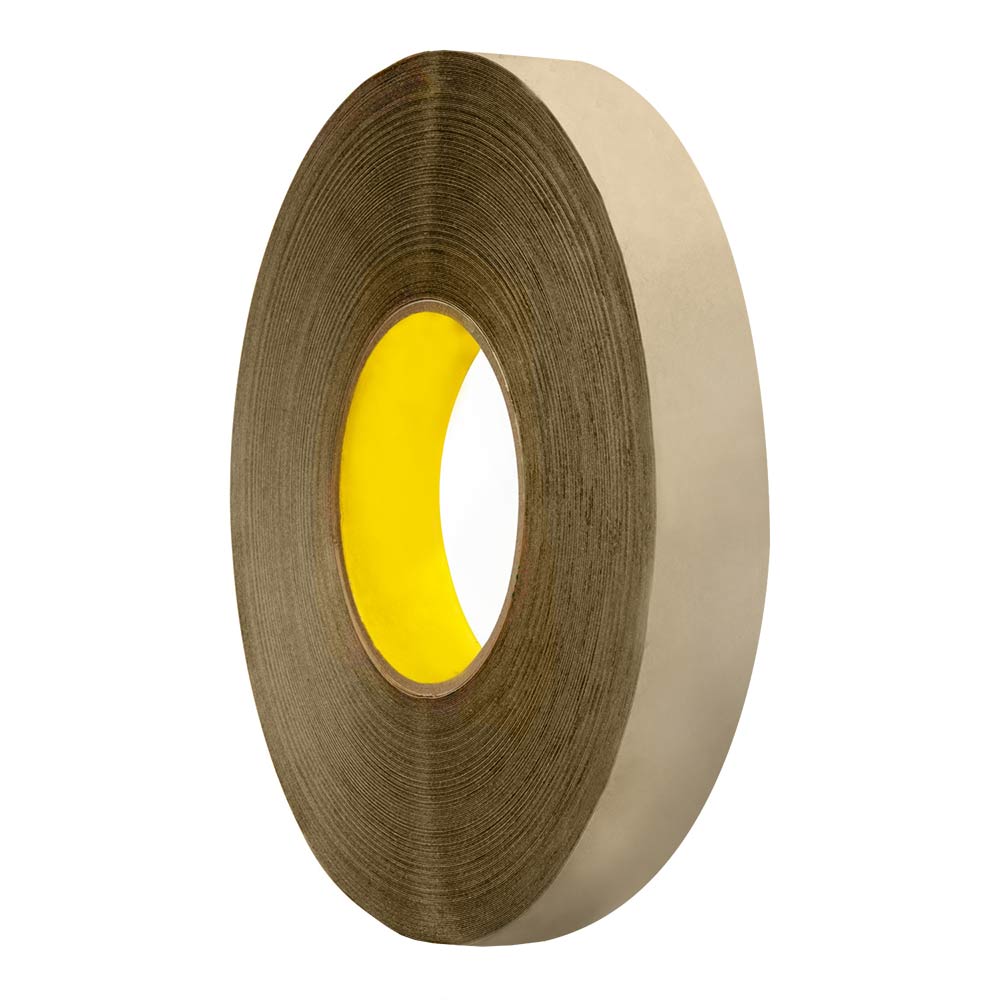

Tape (Specialty Surface)

Thin, Highly Flexible, Acrylic Transfer Adhesive

Material Specification: 5006 RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Hi-Temp Transfer Adhesive
  • Extremely Thin Closure
  • Custom Widths Available
  • Simple Thumb Pressure Closure (Toolless)

A thin high temperature Acrylic transfer adhesive used to create permanent jacket closures on contaminated low surface energy plastic as well as metal materials. This specially formulated transfer adhesive and will withstand both low and high temperature extremes and bonds well to oil contaminated surfaces. When properly sealed and heat set the adhesive creates a strong semi-permanent bond that cannot be reopened easily. Attempting to remove and reset this adhesive after initial placement will destroy the strength of the material.

Specifications

  • Shear Strength: >200 grams @ +400°F (1/2" overlap)
  • REACH: Compliant
  • Release Liner: 0.0065" Polycoated Paper Liner, 86#
  • Material: Acrylic
  • Color: Clear
  • Thickness: 0.005"
  • Maximum Operating Temperature: 200°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded
  • Adhesion: 140 oz-in. (to steel) 136 oz-in. (to Polyproylene)
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    Tape (Specialty Surface)

    Thin, Highly Flexible, Acrylic Transfer Adhesive

    Material Sprcification: 5006

    • Hi-Temp Transfer Adhesive
    • Extremely Thin Closure
    • Custom Widths Available
    • Simple Thumb Pressure Closure (Toolless)
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Shear Strength: >200 grams @ +400°F (1/2" overlap)
  • REACH: Compliant
  • Release Liner: 0.0065" Polycoated Paper Liner, 86#
  • Material: Acrylic
  • Color: Clear
  • Thickness: 0.005"
  • Maximum Operating Temperature: 200°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded
  • Adhesion: 140 oz-in. (to steel) 136 oz-in. (to Polyproylene)
  • DESCRIPTION

    A thin high temperature Acrylic transfer adhesive used to create permanent jacket closures on contaminated low surface energy plastic as well as metal materials. This specially formulated transfer adhesive and will withstand both low and high temperature extremes and bonds well to oil contaminated surfaces. When properly sealed and heat set the adhesive creates a strong semi-permanent bond that cannot be reopened easily. Attempting to remove and reset this adhesive after initial placement will destroy the strength of the material.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
