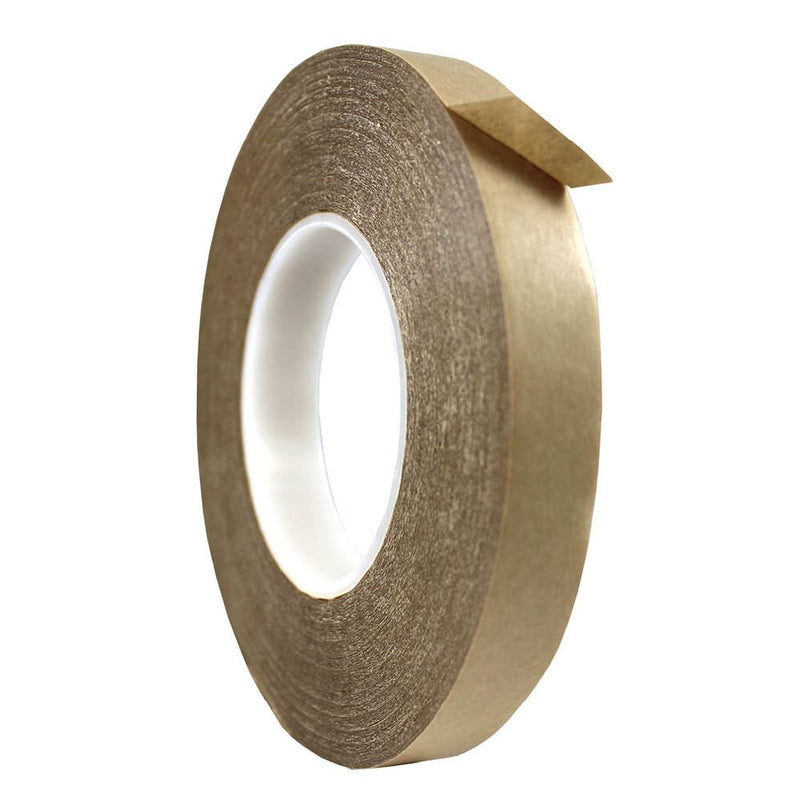

Tape (Plasticizer Resistant)

Thin, Highly Flexible, Acrylic Transfer Adhesive

Material Specification: 5005 RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • High Performance Acrylic Adhesive
  • Thin Closure, Outstanding Flexibility, Avoid Solvents
  • Ideal for Flat Cable Applications
  • Round, Flat & Rectangular Shapes
  • Use with Thin, Lightweight EMI Shields
  • Thumb Pressure Closure (Tooless)

A thin, clear, Acrylic transfer adhesive which is used to create permanent jacket closures on flexible Polyvinylchloride (PVC) materials. This specially formulated transfer adhesive and is unaffected by PVC plasticizer migration and will not dis-bond over time due to plasticizer volatilization. Once sealed together this adhesive creates a strong permanent bond that cannot be reopened (after several weeks) without structurally damaging the base material. Attempting to remove and reset this adhesive after initial placement will destroy the strength of the material.

Specifications

  • REACH: Compliant
  • Release Liner: 0.004" Polycoated Paper Liner, 62lb
  • Flammability: Fire Retardant
  • Material: Acrylic
  • Color: Clear, Amber tint
  • Thickness: 0.005"
  • Maximum Operating Temperature: 160°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded
  • Adhesion: 85 oz/in. (to steel)
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    Tape (Plasticizer Resistant)

    Thin, Highly Flexible, Acrylic Transfer Adhesive

    Material Sprcification: 5005

    • High Performance Acrylic Adhesive
    • Thin Closure, Outstanding Flexibility, Avoid Solvents
    • Ideal for Flat Cable Applications
    • Round, Flat & Rectangular Shapes
    • Use with Thin, Lightweight EMI Shields
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Release Liner: 0.004" Polycoated Paper Liner, 62lb
  • Flammability: Fire Retardant
  • Material: Acrylic
  • Color: Clear, Amber tint
  • Thickness: 0.005"
  • Maximum Operating Temperature: 160°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded
  • Adhesion: 85 oz/in. (to steel)
  • DESCRIPTION

    A thin, clear, Acrylic transfer adhesive which is used to create permanent jacket closures on flexible Polyvinylchloride (PVC) materials. This specially formulated transfer adhesive and is unaffected by PVC plasticizer migration and will not dis-bond over time due to plasticizer volatilization. Once sealed together this adhesive creates a strong permanent bond that cannot be reopened (after several weeks) without structurally damaging the base material. Attempting to remove and reset this adhesive after initial placement will destroy the strength of the material.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
