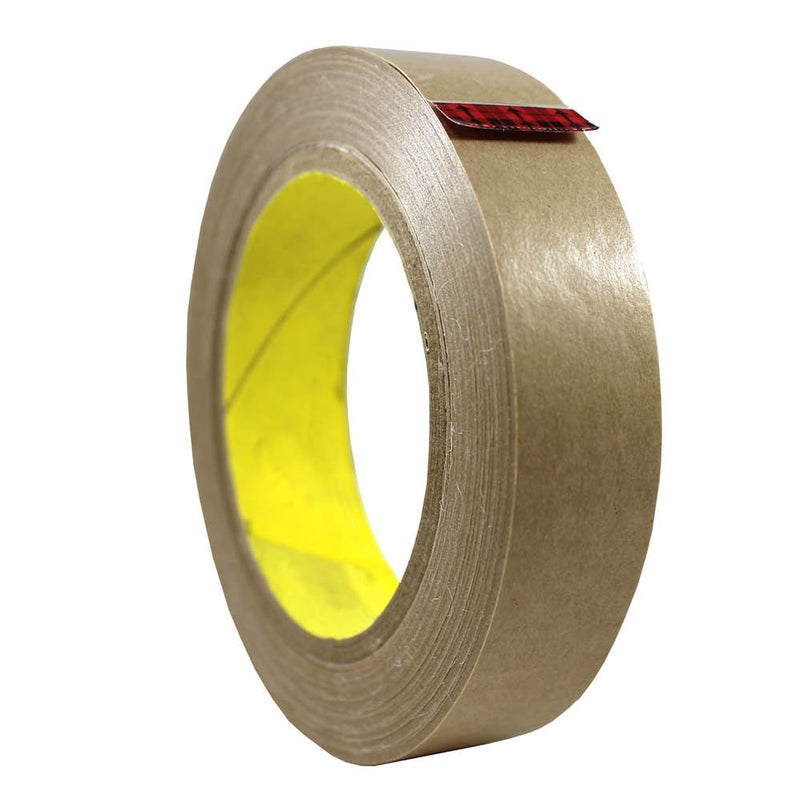

Tape (Electrically Conductive)

Name: Tape (Electrically Conductive)
Brand: zippertubing
Availability: InStock

Thin, Highly Flexible, Acrylic Transfer Adhesive

Material Specification: 5004 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

High Performance Acrylic Adhesive
Extremely Thin/Flexible Closure
Ideal in Flat Cable Applications
Good in small Round Cable Applications
Simple Thumb Pressure Closure (Toolless)

A thin Acrylic transfer adhesive containing Silver plated Nickel particles making the material electrically conductive in the "Z" axis (i.e. through its thickness). This tape is not used as a mechanical closure for jacket materials, but rather as a filler between seams and layers of flexible EMI shielding cloth to insure a low electrical resistance joint. This adhesive will withstand moderate temperatures and has a low bond strength. Any seam joints using this material must be mechanically retained via sewing or other mechanical means.

Specifications

Fill: Silver coated Nickel

Current Capacity: 1 Amp/sq-in

A/C Impedence: .044 ohms (500 Hz - 100 KHz)

Release Liner: 0.004" Polycoated Paper Liner

Material: Acrylic

Color: Translucent

Thickness: 0.002"

Maximum Operating Temperature: 158°F

RoHS: RoHS-10

Shelf Life: 12 months, unbonded

Adhesion: 32 Oz/in (to steel 24 hours)

Outgasssing (%TML): 0.7 (PER NASA SP-R-0022 OR ASTM E595) %

Outgassing (%CVCM): 0.01 (PER NASA SP-R-0022 OR ASTM E595) %

Thermal Conductivity: 0.16-0.20 W/mK

Insulation Resistance: 3.4*10^14 ohms/square

Contact Resistance: <0.3 ohms

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Tape (Electrically Conductive)

Thin, Highly Flexible, Acrylic Transfer Adhesive

Material Sprcification: 5004

High Performance Acrylic Adhesive
Extremely Thin/Flexible Closure
Ideal in Flat Cable Applications
Good in small Round Cable Applications
Simple Thumb Pressure Closure (Toolless)

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Fill: Silver coated Nickel

Current Capacity: 1 Amp/sq-in

A/C Impedence: .044 ohms (500 Hz - 100 KHz)

Release Liner: 0.004" Polycoated Paper Liner

Material: Acrylic

Color: Translucent

Thickness: 0.002"

Maximum Operating Temperature: 158°F

RoHS: RoHS-10

Shelf Life: 12 months, unbonded

Adhesion: 32 Oz/in (to steel 24 hours)

Outgasssing (%TML): 0.7 (PER NASA SP-R-0022 OR ASTM E595) %

Outgassing (%CVCM): 0.01 (PER NASA SP-R-0022 OR ASTM E595) %

DESCRIPTION

A thin Acrylic transfer adhesive containing Silver plated Nickel particles making the material electrically conductive in the "Z" axis (i.e. through its thickness). This tape is not used as a mechanical closure for jacket materials, but rather as a filler between seams and layers of flexible EMI shielding cloth to insure a low electrical resistance joint. This adhesive will withstand moderate temperatures and has a low bond strength. Any seam joints using this material must be mechanically retained via sewing or other mechanical means.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
