Note: Raw materials are part of our proven solutions and custom-engineered products, and are not sold separately.

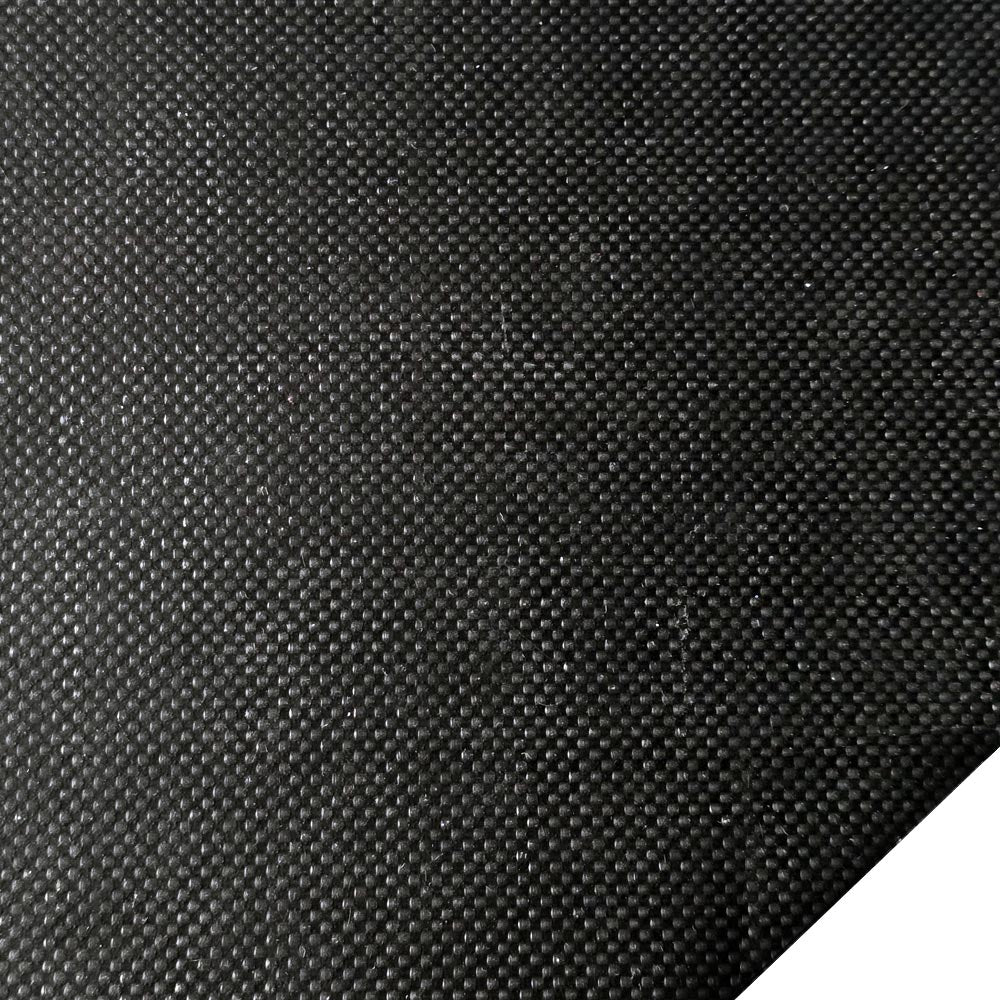

SRH-14 – Silicone Coated Fabric

Name: SRH-14 – Silicone Coated Fabric
Brand: zippertubing
Availability: InStock

Flexible & durable material with wide operating temperature range

Material Specification: 1155 RoHS

Overview

Excellent temperature resistance
Resistant to harsh chemicals
Very flexible with great durability
Flame retardant

SRH-14 is a lightweight (.014") silicone-coated fabric that offers excellent high and low temperature resistance, chemical resistance, flexibility, and durability. Compared to PVC- and polyurethane-coated materials, SRH-14 provides a broader operating temperature range and improved resistance to harsh chemicals, making it ideal for demanding protective jacketing and wrap-around applications. The material is flame retardant to ISO 15025 I1, is REACH compliant and RoHS-10 compliant, and has an operating temperature range of -94°F to 392°F (-70°C to 200°C). Available in black, SRH-14 is an excellent choice for custom cable, hose, and component protection when high-performance environmental resistance and long-term durability are required.

Specifications

REACH: Compliant

Flame Retardant: ISO 15025 I1

Color: Black

Maximum Operating Temperature: 392°F

Minimum Operating Temperature: -94°F

RoHS: RoHS-10

Shelf Life: 60 Months

Thickness: 0.014”

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

SRH-14 – Silicone Coated Fabric

Flexible & durable material with wide operating temperature range

Material Sprcification:

Excellent temperature resistance
Resistant to harsh chemicals
Very flexible with great durability
Flame retardant

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

REACH: Compliant

Flame Retardant: ISO 15025 I1

Color: Black

Maximum Operating Temperature: 392°F

Minimum Operating Temperature: -94°F

RoHS: RoHS-10

Shelf Life: 60 Months

DESCRIPTION

SRH-14 is a lightweight (.014") silicone-coated fabric that offers excellent high and low temperature resistance, chemical resistance, flexibility, and durability. Compared to PVC- and polyurethane-coated materials, SRH-14 provides a broader operating temperature range and improved resistance to harsh chemicals, making it ideal for demanding protective jacketing and wrap-around applications. The material is flame retardant to ISO 15025 I1, is REACH compliant and RoHS-10 compliant, and has an operating temperature range of -94°F to 392°F (-70°C to 200°C). Available in black, SRH-14 is an excellent choice for custom cable, hose, and component protection when high-performance environmental resistance and long-term durability are required.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
