SHX-2 (SnCuFe) 2-Ply Tinned Copper/Steel Wire Mesh

Name: SHX-2 (SnCuFe) 2-Ply Tinned Copper/Steel Wire Mesh
Brand: zippertubing
Availability: InStock

Tinned Copper/Steel Wire EMI Shielding Mesh, 2-Ply

Material Specification: 3102 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

EMI Shielding (500 KHz to 500 MHz)
Extremely flexible & lightweight
Withstands lightning strikes
Non flammable

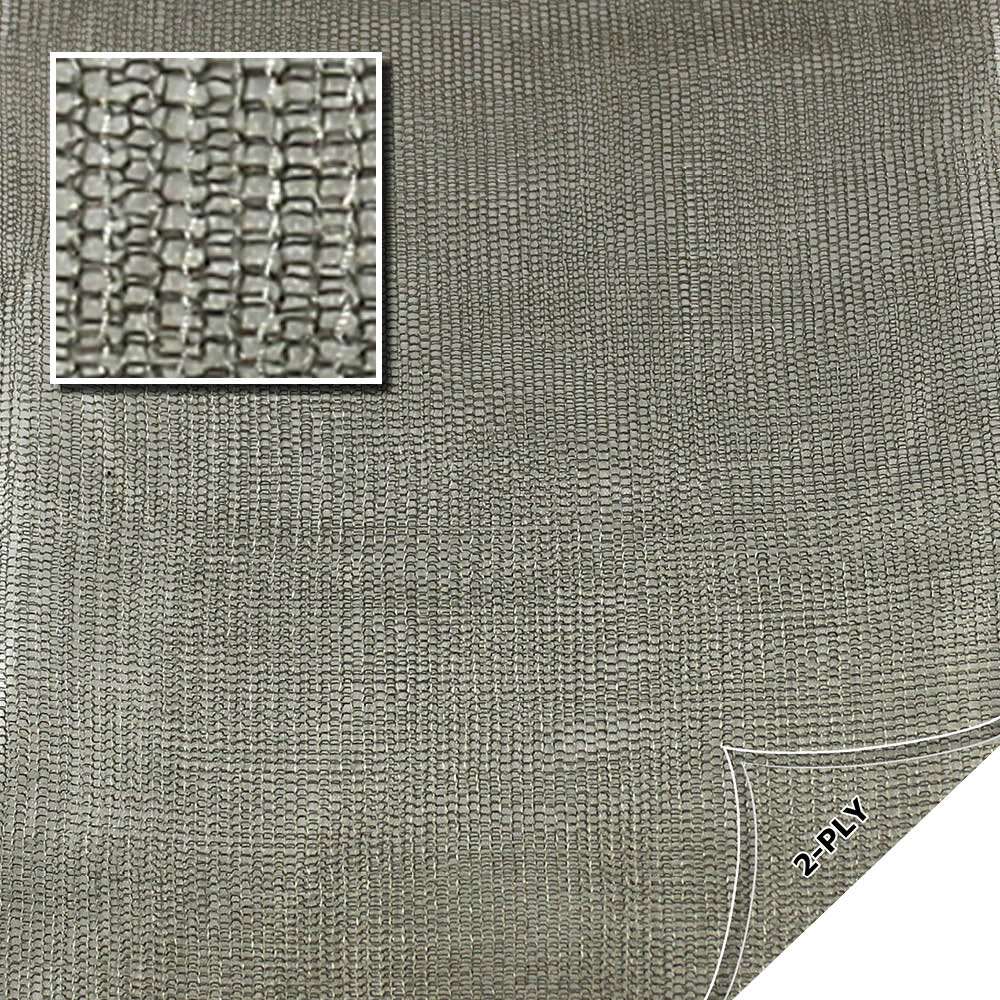

SHX-2 (SnCuFe) is a flexible 2 layer knitted wire mesh EMI shielding material that is made of tin plated, copper clad steel wire. The knitted mesh design creates a highly flexible shield that unlike many tubular braids will not change attenuation performance when articulated. The knitted wire mesh maintains constant window spacing during cable assembly movement and as a result yields excellent EMI shielding performance from 500 KHz through 500 MHz. The material is highly conductive, lightweight and is ideal for airborne applications where lightning strike grounding is required. The mesh can be added to most Zippertubing® jacket materials to create an easy to install Zip-on EMI shielded assembly. SHX-2 shields come with a standard 15 AWG drain wire attached to simplify grounding.

Specifications

Mil-Spec: ASTM B-452, Grade 40HS; ASTM B-520, Class T40HS

Coating: Pure Tin, 35 micro inches

Electrical Resistance: 1.159 MIN, 1.225 MAX @68 deg. F (ohm/ft)

Elongation: 2.05% MIN, 3.20% MAX

Openings Per Inch: 10-13

Wire Size: 37 AWG

Material: Mesh

Color: Bright Tin

Material: Copper clad steel, Grade 40HS

Maximum Operating Temperature: 400°F

Minimum Operating Temperature: -148°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: SHX-2 (SnCuFe)

Tensile Strength: 110,000 psi

Picks Per Inch: 12-16

Configuration: Single knitted tube, flattened

Shielding Effectiveness: Good

Flexibility: Best

Shielding Effectiveness

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
