SHX-2 (SnCu) 2-Ply Tin-plated Copper Wire Mesh

Name: SHX-2 (SnCu) 2-Ply Tin-plated Copper Wire Mesh
Brand: zippertubing
Availability: InStock

Tin Plated Copper Wire EMI Shielding Mesh, 2-Ply

Material Specification: 3103 Military Grade

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Print Datasheet

Overview

Electrical resistance 936.51 ohms
Extremely flexible & lightweight
Non flammable

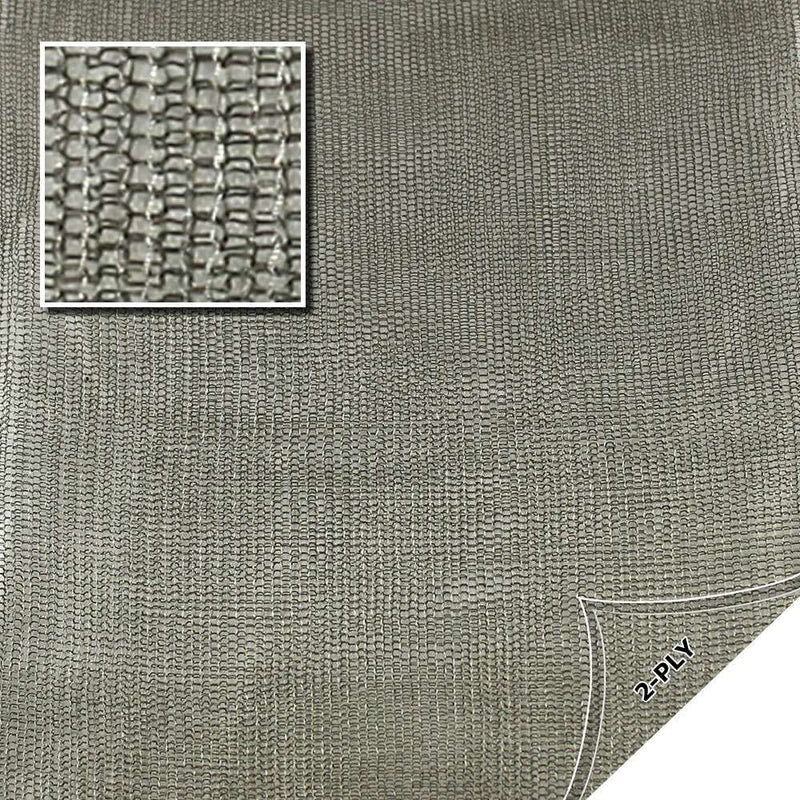

SHX-2 (SnCu) is a flexible 2 layer knitted wire mesh EMI shielding material that is made of tin plated, copper wire. The knitted mesh design creates a highly flexible shield that unlike many tubular braids will not change attenuation performance when articulated. The knitted wire mesh maintains constant window spacing during cable assembly movement. The material is highly conductive, lightweight and is ideal for airborne applications where lightning strike grounding is required. The mesh can be added to most Zippertubing® jacket materials to create an easy to install Zip-On EMI shielded assembly.

Specifications

Mil-Spec: ASTM B33-10, MS3304 Type 1

REACH: Compliant

Electrical Resistance: 939.51 Ω٠lb/mile² @ 20C

Elongation: 10% min per 10" length

Openings Per Inch: 10-13

Wire Size: 36 AWG

Color: Bright Tin

Material: Single knitted mesh tube, flattened

Maximum Operating Temperature: 400°F

Minimum Operating Temperature: -148°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: SHX-2 (SnCu)

Tensile Strength: .785 lbs (wire)

Picks Per Inch: 12-16

Shielding Effectiveness: Good

Flexibility: Best

Shielding Effectiveness

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

SHX-2 (SnCu) 2-Ply Tin-plated Copper Wire Mesh

Tin Plated Copper Wire EMI Shielding Mesh, 2-Ply

Material Sprcification: 3103

Electrical resistance 936.51 ohms
Extremely flexible & lightweight
Non flammable

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Mil-Spec: ASTM B33-10, MS3304 Type 1

REACH: Compliant

Electrical Resistance: 939.51 Ω٠lb/mile² @ 20C

Elongation: 10% min per 10" length

Openings Per Inch: 10-13

Wire Size: 36 AWG

Color: Bright Tin

Material: Single knitted mesh tube, flattened

Maximum Operating Temperature: 400°F

Minimum Operating Temperature: -148°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: SHX-2 (SnCu)

Tensile Strength: .785 lbs (wire)

Picks Per Inch: 12-16

Shielding Effectiveness: Good

Flexibility: Best

DESCRIPTION

SHX-2 (SnCu) is a flexible 2 layer knitted wire mesh EMI shielding material that is made of tin plated, copper wire. The knitted mesh design creates a highly flexible shield that unlike many tubular braids will not change attenuation performance when articulated. The knitted wire mesh maintains constant window spacing during cable assembly movement. The material is highly conductive, lightweight and is ideal for airborne applications where lightning strike grounding is required. The mesh can be added to most Zippertubing® jacket materials to create an easy to install Zip-On EMI shielded assembly.

SHIELDING EFFECTIVENESS

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
