SH1 (Laminate) - Foil EMI Shielding w/Type 63-10

Material Specification: 3601 UL Recognized RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Superior EMI Shielding (1MHz - 20 GHz)
  • Many shape configurations
  • Flame retardant
  • Intended for minimal Flex Applications

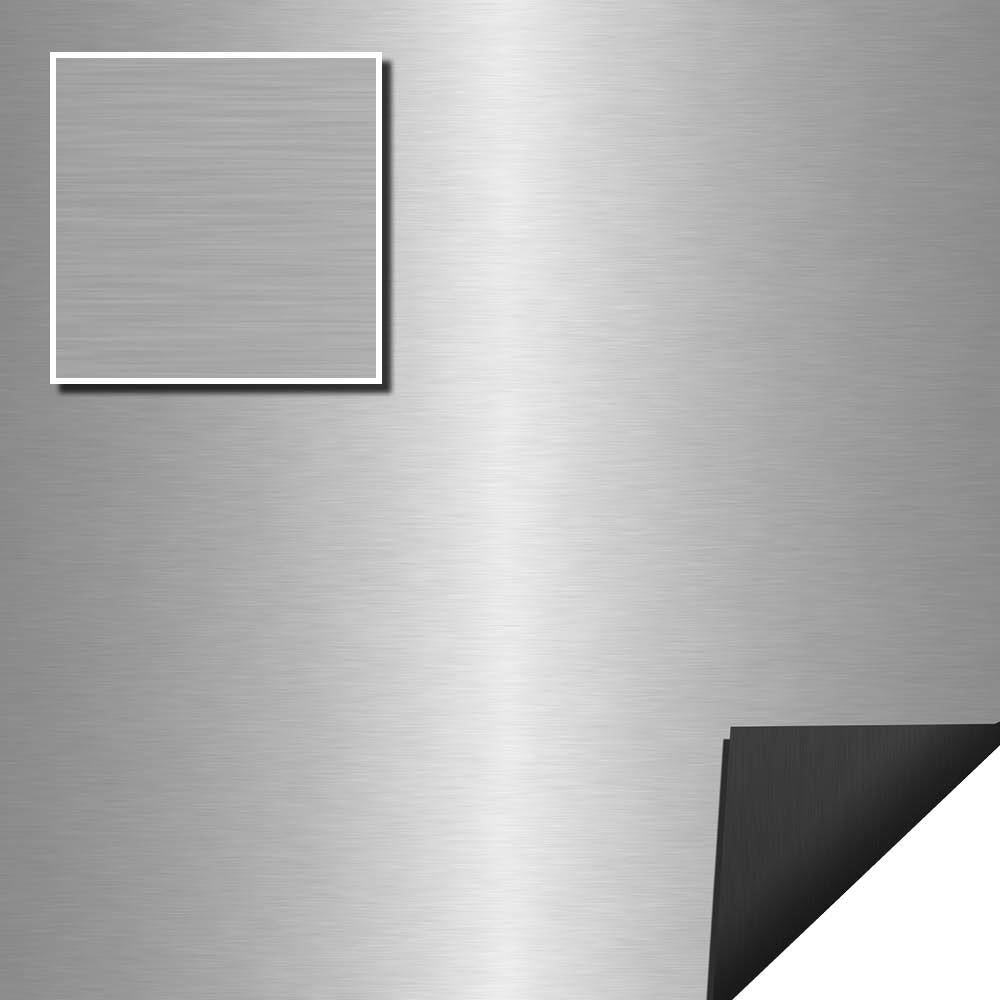

SH1 Laminate is a lightweight shielding material that consists of Zippertubing's SH1 shielding foil adhesively laminated to our Type 63-10 Polyvinylchloride jacket material. It can be combined with most Zippertubing closure types to create a thin, lightweight cable jacket with outstanding EMI shielding performance. The material is a general purpose shielding product that is ideal for use in protected areas like electronics racks, and should not be used in areas where a great deal of flexing is likely to occur. It can be configured for Round, Flat and Rectangular cable shapes and is supplied with a sewn-in 15 AWG braided Tin/Copper ground wire running the full length of the product. The lamination is flame retardant and can be Certified to UL224, VW-1 flammability upon request when ordered with our PVC R-Track or Z-Track closures.

Specifications

  • REACH: Compliant
  • Electrical Resistance: 0.091 ohms/mft @ 1.0" (Foil only)
  • Dielectric Constant: 7.0 (1 kilocycle)
  • Dielectric Strength: 700 volts/mil (0.020" thk.)
  • Elongation: 200% min., 450% max.
  • Volume Resistivity: 1010 ohms/cm. mm.
  • Flammability: Flame Retardant
  • Durometer: 88 +/- 2 Instant | 84 +/- After 10 sec.
  • Fungicide: Does not support growth
  • Thickness: 0.011" (+/- 0.001)
  • Material: Aluminum
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Shielding: SH1 (Laminate)
  • Dissipation Factor: 0.14 min. (1 kilocycle)
  • Tensile Strength: 1800 psi. min
  • Specific Gravity: 1.30
  • Burst Strength: 11.0 psi. min. (Foil only)
  • Shielding Effectiveness: Best
  • Flexibility: Good
  • Shielding Effectiveness

    ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.
    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    SH1 (Laminate) - Foil EMI Shielding w/Type 63-10

    Material Sprcification: 3601

    • Superior EMI Shielding (1MHz - 20 GHz)
    • Many shape configurations
    • Flame retardant
    • Intended for minimal Flex Applications
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Electrical Resistance: 0.091 ohms/mft @ 1.0" (Foil only)
  • Dielectric Constant: 7.0 (1 kilocycle)
  • Dielectric Strength: 700 volts/mil (0.020" thk.)
  • Elongation: 200% min., 450% max.
  • Volume Resistivity: 1010 ohms/cm. mm.
  • Flammability: Flame Retardant
  • Durometer: 88 +/- 2 Instant | 84 +/- After 10 sec.
  • Fungicide: Does not support growth
  • Thickness: 0.011" (+/- 0.001)
  • Material: Aluminum
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Shielding: SH1 (Laminate)
  • Dissipation Factor: 0.14 min. (1 kilocycle)
  • Tensile Strength: 1800 psi. min
  • Specific Gravity: 1.30
  • Burst Strength: 11.0 psi. min. (Foil only)
  • Shielding Effectiveness: Best
  • Flexibility: Good
  • DESCRIPTION

    SH1 Laminate is a lightweight shielding material that consists of Zippertubing's SH1 shielding foil adhesively laminated to our Type 63-10 Polyvinylchloride jacket material. It can be combined with most Zippertubing closure types to create a thin, lightweight cable jacket with outstanding EMI shielding performance. The material is a general purpose shielding product that is ideal for use in protected areas like electronics racks, and should not be used in areas where a great deal of flexing is likely to occur. It can be configured for Round, Flat and Rectangular cable shapes and is supplied with a sewn-in 15 AWG braided Tin/Copper ground wire running the full length of the product. The lamination is flame retardant and can be Certified to UL224, VW-1 flammability upon request when ordered with our PVC R-Track or Z-Track closures.

    SH1 (Laminate) - Foil EMI Shielding w/Type 63-10

    SHIELDING EFFECTIVENESS

    ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.
    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
