PVL-15-NFPA 701-1 Rated 15 MIL PVC Coated Fabric

A Flexible, Light Weight, PVC Coated Polyester Fabric , 15 mil

Material Specification: 1149

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Outstanding Flexibility
  • Flame Retardant
  • Abrasion Resistant
  • Other Colors available per request

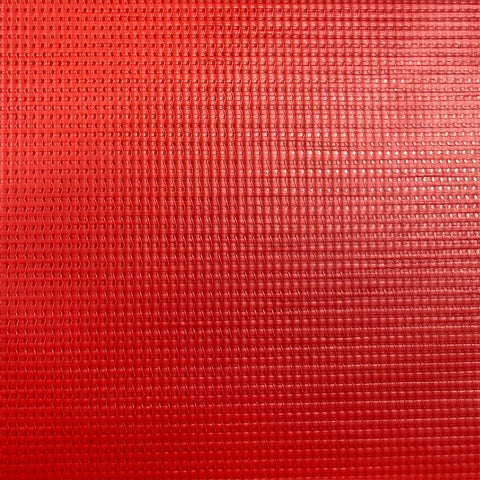

PVL-15 is a flame retardant, PVC coated, woven Polyester fabric that is extremely flexible, lightweight and rugged. The fabric reinforced construction provides good wear resistance combined with high tear strength in an extremely thin and flexible jacket material. It's ideal for discrete wires, wire harnesses, hoses, and other applications where its high flexibility, strength and abrasion protection are needed. This material is Fire retardant per NFPA 701-1 and is available in red, by default but colors such as black or yellow are also available. The materials can be configured for round, flat and rectangular cable configurations and supplied with a large array of closure options. This material also includes an Anti-microbial UV inhibiting finish.

Specifications

  • Flame Retardant: NFPA-701-1
  • Thickness: 0.015”
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 176°F
  • Shelf Life: 36 Months
  • Tensile Strength: 148 lbs/min (warp); 125 lbs/min (fill)
  • Cold Crack: -22°F
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    PVL-15-NFPA 701-1 Rated 15 MIL PVC Coated Fabric

    A Flexible, Light Weight, PVC Coated Polyester Fabric , 15 mil

    Material Sprcification:

    • Outstanding Flexibility
    • Flame Retardant
    • Abrasion Resistant
    • Other Colors available per request
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Flame Retardant: NFPA-701-1
  • Thickness: 0.015”
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 176°F
  • Shelf Life: 36 Months
  • Tensile Strength: 148 lbs/min (warp); 125 lbs/min (fill)
  • Cold Crack: -22°F
  • DESCRIPTION

    PVL-15 is a flame retardant, PVC coated, woven Polyester fabric that is extremely flexible, lightweight and rugged. The fabric reinforced construction provides good wear resistance combined with high tear strength in an extremely thin and flexible jacket material. It's ideal for discrete wires, wire harnesses, hoses, and other applications where its high flexibility, strength and abrasion protection are needed. This material is Fire retardant per NFPA 701-1 and is available in red, by default but colors such as black or yellow are also available. The materials can be configured for round, flat and rectangular cable configurations and supplied with a large array of closure options. This material also includes an Anti-microbial UV inhibiting finish.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
