Note: Raw materials are part of our proven solutions and custom-engineered products, and are not sold separately.

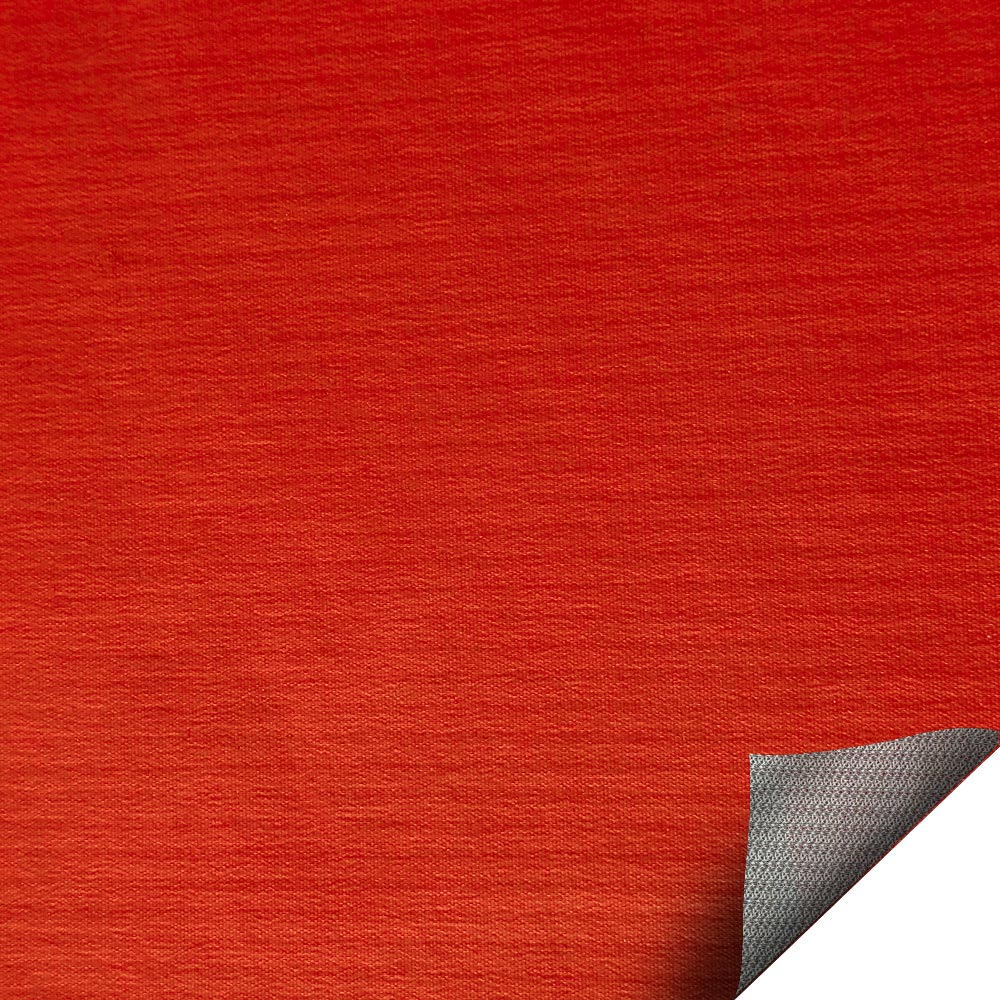

PAK-22 – Aramid knit fabric with polyurethane coating

Name: PAK-22 – Aramid knit fabric with polyurethane coating
Brand: zippertubing
Availability: InStock

Medium weight fabric specially designed for use in aircraft equipment covers

Material Specification: 1156 RoHS

Overview

Durable chemical resistant polyurethane top-side
Soft aramid back-side that won’t damage fragile surfaces
Excellent temperature resistance
Flame retardant to FAR25 requirements for on-board equipment

PAK-22 is a medium weight (.022") protective laminate designed specifically for aircraft and aerospace component covers. It features a durable, chemical-resistant polyurethane top-side and a soft aramid back-side that helps protect fragile painted or coated surfaces from abrasion and damage. The material is flame retardant to FAR 25.853 and ABD0031, is REACH compliant and RoHS-10 compliant, and has an operating temperature range of -58°F to 356°F (-50°C to 180°C). Available in orange, PAK-22 was developed to meet Airbus OEM specifications and is approved for use in Airbus aircraft, making it an excellent choice for high-performance engine covers, helicopter covers, and other custom aerospace protective covers.

Specifications

REACH: Compliant

Flame Retardant: FAR 25.853 & ABD0031

Color: Orange-Red

Maximum Operating Temperature: 356°F

Minimum Operating Temperature: -58°F

RoHS: RoHS-10

Shelf Life: 60 Months

Thickness: 0.022”

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

PAK-22 – Aramid knit fabric with polyurethane coating

Medium weight fabric specially designed for use in aircraft equipment covers

Material Sprcification:

Durable chemical resistant polyurethane top-side
Soft aramid back-side that won’t damage fragile surfaces
Excellent temperature resistance
Flame retardant to FAR25 requirements for on-board equipment

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

REACH: Compliant

Flame Retardant: FAR 25.853 & ABD0031

Color: Orange-Red

Maximum Operating Temperature: 356°F

Minimum Operating Temperature: -58°F

RoHS: RoHS-10

Shelf Life: 60 Months

DESCRIPTION

PAK-22 is a medium weight (.022") protective laminate designed specifically for aircraft and aerospace component covers. It features a durable, chemical-resistant polyurethane top-side and a soft aramid back-side that helps protect fragile painted or coated surfaces from abrasion and damage. The material is flame retardant to FAR 25.853 and ABD0031, is REACH compliant and RoHS-10 compliant, and has an operating temperature range of -58°F to 356°F (-50°C to 180°C). Available in orange, PAK-22 was developed to meet Airbus OEM specifications and is approved for use in Airbus aircraft, making it an excellent choice for high-performance engine covers, helicopter covers, and other custom aerospace protective covers.
