Note: Raw materials are part of our proven solutions and custom-engineered products, and are not sold separately.

Nylon Thread - Bonded

Name: Nylon Thread - Bonded
Brand: zippertubing
Availability: InStock

Nylon Thread

Material Specification: 1402 RoHS

Select product options

Print Datasheet

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Mechanically Sewn Tubing
Multiple Threads and Stitch Patterns
Pull-Thru Leader Optional
Coated Fabric & Heat Barrier Jackets
EMI Shielding Materials Available
Best for Short Length Applications
Cable Pull-Thru Requires No Tooling

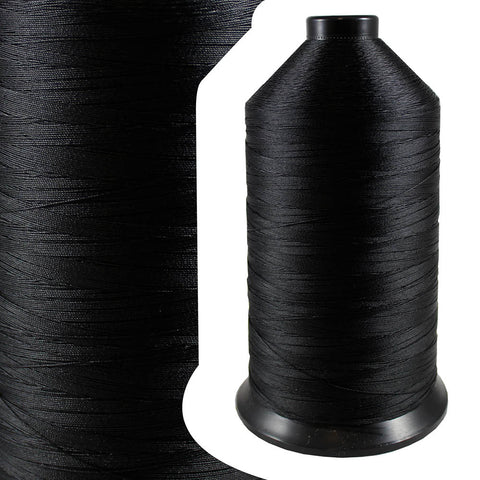

This material is a bonded, twisted Nylon sewing thread for general purpose sewing applications. Material uses a colorless bonding agent to create a strong single filament of thread for machine sewing. Nylon has high strength, excellent resistance to chemicals, bacteria, mildew and abrasion making it ideal for outdoor applications. Nylon should be the first choice for rugged applications. The thread meets the requirements of Federal Specification VT-295, Type II, Class A.

Specifications

Mil-Spec: VT-295, Type II, Class A

REACH: Compliant

Closure: Sewn

Elongation: 26% max

Flame Retardant: Flame retardant, melts

Material: Nylon Thread

Color: White

Material: Bonded, twisted Polyamide filaments

RoHS: RoHS-10

Tensile Strength: 11.8 lbs min.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Nylon Thread - Bonded

Nylon Thread

Material Sprcification:

Mechanically Sewn Tubing
Multiple Threads and Stitch Patterns
Pull-Thru Leader Optional
Coated Fabric & Heat Barrier Jackets
EMI Shielding Materials Available

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Mil-Spec: VT-295, Type II, Class A

REACH: Compliant

Closure: Sewn

Elongation: 26% max

Flame Retardant: Flame retardant, melts

Material: Nylon Thread

Color: White

Material: Bonded, twisted Polyamide filaments

RoHS: RoHS-10

Tensile Strength: 11.8 lbs min.

DESCRIPTION

This material is a bonded, twisted Nylon sewing thread for general purpose sewing applications. Material uses a colorless bonding agent to create a strong single filament of thread for machine sewing. Nylon has high strength, excellent resistance to chemicals, bacteria, mildew and abrasion making it ideal for outdoor applications. Nylon should be the first choice for rugged applications. The thread meets the requirements of Federal Specification VT-295, Type II, Class A.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
