Note: Raw materials are part of our proven solutions and custom-engineered products, and are not sold separately.

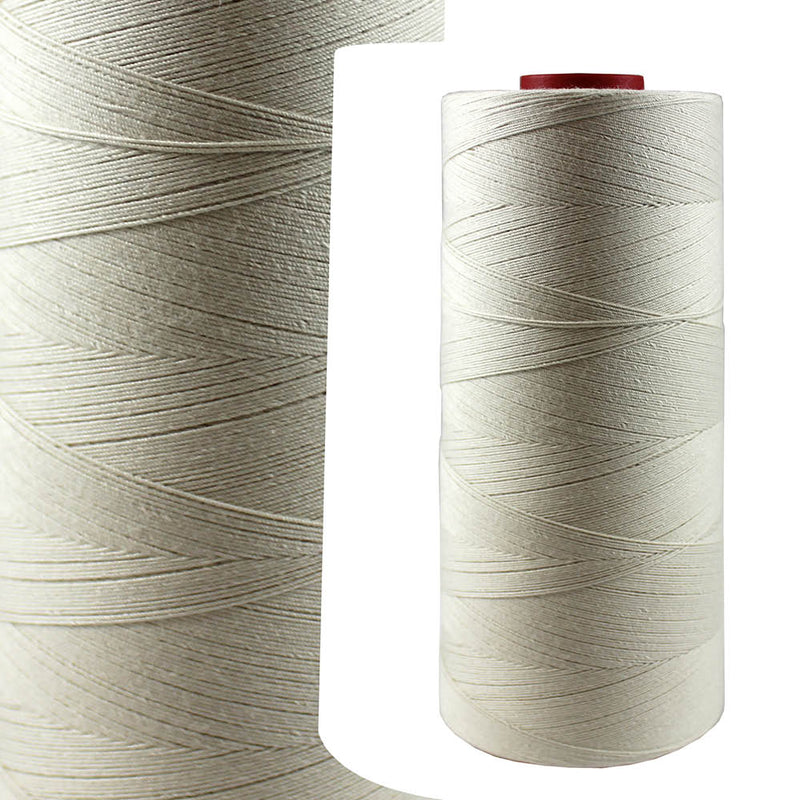

Nomex Thread - High Temperature

Name: Nomex Thread - High Temperature
Brand: zippertubing
Availability: InStock

High Temperature Nomex Thread

Material Specification: 1407 RoHS

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Print Datasheet

Overview

Mechanically sewn closed tubing (Teardrop)
Various thread types and stitch patterns
Most available with optional pull-thru leader
Applicable to most jacket material types
Limited EMI shield material options
Requires cable pull-thru

A spun Meta-Aramid sewing thread manufactured from Nomex® staple fibers. For sewing thermal barrier materials with excellent long term heat exposure, good seam strength and good chemical resistance. The thread shall have performance similar to the requirements specified in the Industry Specification A-A-55217A.

Specifications

Break Strength: 6 lbs-min

REACH: Compliant

Closure: Sewn

Elongation: 25% (min)

Flame Retardant: Decomposes at 699°F

Flammability: Self-extinguishes w/ flame removal

Material: Nomex Thread

Color: White

Material: Spun 4-Ply Meta-Aramid (Nomex)

Minimum Operating Temperature: 410°F

RoHS: RoHS-10

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Nomex Thread - High Temperature

High Temperature Nomex Thread

Material Sprcification:

Mechanically sewn closed tubing (Teardrop)
Various thread types and stitch patterns
Most available with optional pull-thru leader
Applicable to most jacket material types
Limited EMI shield material options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Break Strength: 6 lbs-min

REACH: Compliant

Closure: Sewn

Elongation: 25% (min)

Flame Retardant: Decomposes at 699°F

Flammability: Self-extinguishes w/ flame removal

Material: Nomex Thread

Color: White

Material: Spun 4-Ply Meta-Aramid (Nomex)

Minimum Operating Temperature: 410°F

RoHS: RoHS-10

DESCRIPTION

A spun Meta-Aramid sewing thread manufactured from Nomex® staple fibers. For sewing thermal barrier materials with excellent long term heat exposure, good seam strength and good chemical resistance. The thread shall have performance similar to the requirements specified in the Industry Specification A-A-55217A.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
