Hook-and-Loop (Polyester)

Material Specification: 5104 RoHS Military Grade

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Overview

  • Non-metallic Hook & Loop tapes
  • Flexible, Tooless and Re-Sealable
  • All Jacket and EMI Shield materials available
  • Round, Flat and Rectangular cable shapes
  • Avoid Fluid, Dirt and Clean Room applications

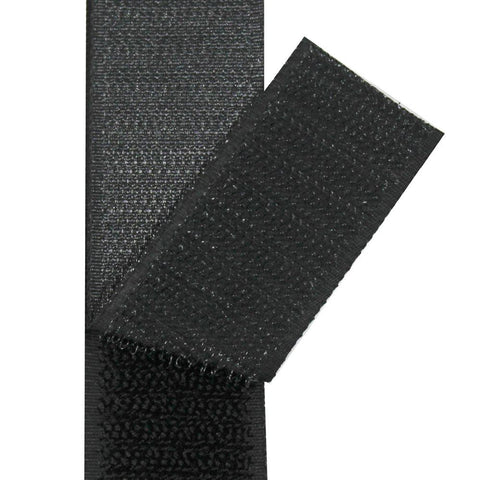

The Hook and Loop closure consists of dissimilar woven tapes comprised of synthetic hook filaments on one side and loop fibers on the other. The closure is sealed when the hooks are forced into the loops causing the hook barbs to engage and catch the loop side. The hook barbs can be pulled out of the loops numerous times with only minor damage creating a closure that can be re-entered and resealed. This closure system can be used with all EMI Shielding material options in Round, Flat and Rectangular configurations with cable sizes of 1/2" and up. No tooling is required to open or close this system.

Specifications

  • Mil-Spec: A-A-55126A, Type II, Class 3 Formerly Mil-F-21840 Type II, Class 3.
  • Thickness: 0.125"
  • Material: Polyester
  • Maximum Operating Temperature: 199°F
  • Minimum Operating Temperature: -70°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
