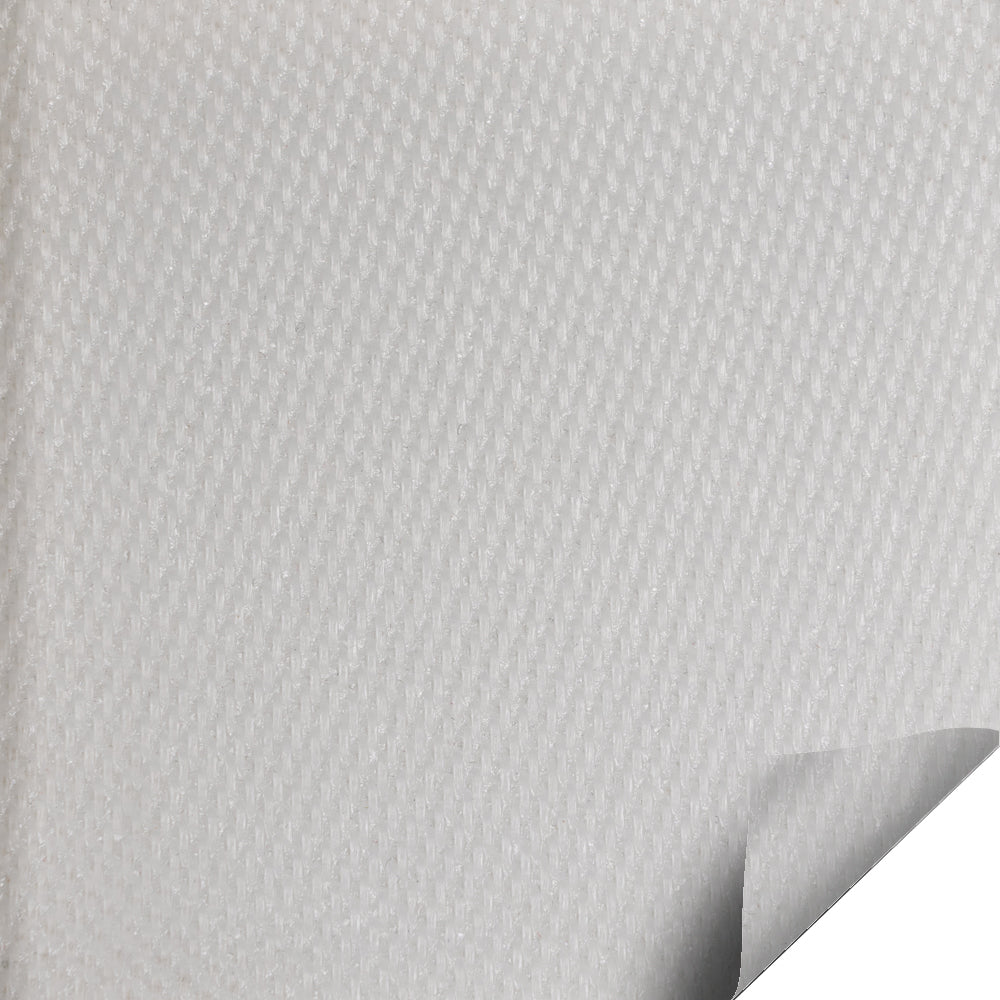

E-Glass-650 Woven Fiberglass Fabric

A coated, woven fiberglass fabric used to protect applications from extreme high heat up to 1202°F.

Material Specification: RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Proprietary-coated woven fiberglass material
  • 1,202°F (650°C) operational limit
  • Ideal for automotive applications
  • Custom shapes available
  • Many closures available

E-Glass-650 provides heat barrier protection by utilizing a .0315” thick plain weave, proprietary-coated woven fiberglass fabric to shield components from extreme high temperatures and provide thermal stability. Heat shielding materials are commonly used throughout the automotive industry in various applications. For instance, to protect critical engine wiring, prevent vapor lock, and improve vehicle efficiency by blocking radiant heat caused by temperatures under the hood. Heat shielding is also ideal for components near extremely hot engine exhaust systems.

E-Glass-650 has an operational temperature range of 1202°F (650°C); can handle intermittent temperature spikes up to 1292°F (700°C).

Specifications

  • Weight: 22.6 oz/m².(640 g/m²)
  • Construction: Plain Weave
  • REACH: Compliant
  • Flammability: Afterflame 0.0 sec. | Afterglow 0.0 sec. | Char length 0.0 in.
  • Color: White
  • Thickness: .0315” +/- 10% (0.8mm)
  • Material: Woven Coated Fiberglass
  • Maximum Operating Temperature: 1202°F
  • RoHS: RoHS-10
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    E-Glass-650 Woven Fiberglass Fabric

    A coated, woven fiberglass fabric used to protect applications from extreme high heat up to 1202°F.

    Material Sprcification: 1212

    • Proprietary-coated woven fiberglass material
    • 1,202°F (650°C) operational limit
    • Ideal for automotive applications
    • Custom shapes available
    • Many closures available
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Weight: 22.6 oz/m².(640 g/m²)
  • Construction: Plain Weave
  • REACH: Compliant
  • Flammability: Afterflame 0.0 sec. | Afterglow 0.0 sec. | Char length 0.0 in.
  • Color: White
  • Thickness: .0315” +/- 10% (0.8mm)
  • Material: Woven Coated Fiberglass
  • Maximum Operating Temperature: 1202°F
  • RoHS: RoHS-10
  • DESCRIPTION

    E-Glass-650 provides heat barrier protection by utilizing a .0315” thick plain weave, proprietary-coated woven fiberglass fabric to shield components from extreme high temperatures and provide thermal stability. Heat shielding materials are commonly used throughout the automotive industry in various applications. For instance, to protect critical engine wiring, prevent vapor lock, and improve vehicle efficiency by blocking radiant heat caused by temperatures under the hood. Heat shielding is also ideal for components near extremely hot engine exhaust systems.

    E-Glass-650 has an operational temperature range of 1202°F (650°C); can handle intermittent temperature spikes up to 1292°F (700°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
