D-Track (PVC) Extruded Pressure Track

Externally Closed, PVC, Extruded Interlock

Material Specification: 2017 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Ideal For Truck & Bus Applications
  • Variable Expansion Range
  • Automotive Fluid Resistance
  • Flame Retardant
  • -30°C to 105°C Operational Limit

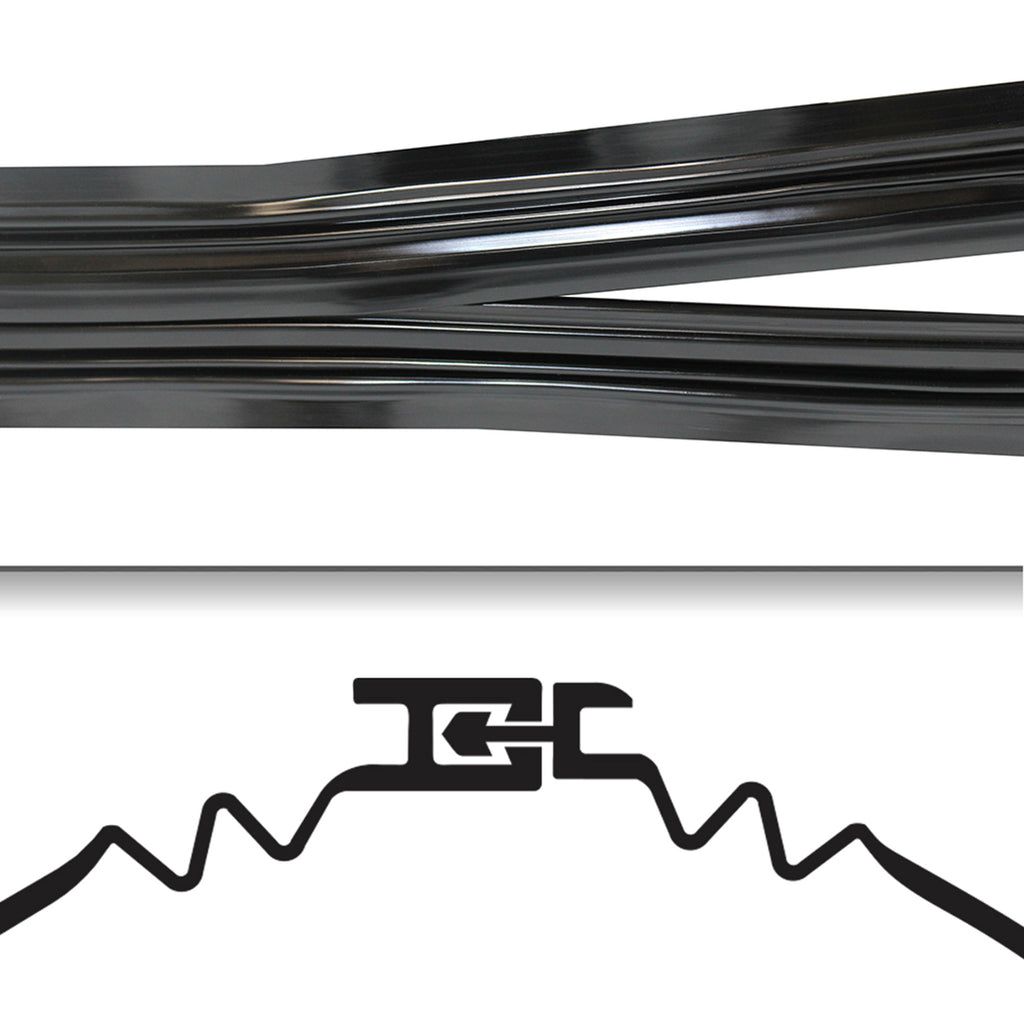

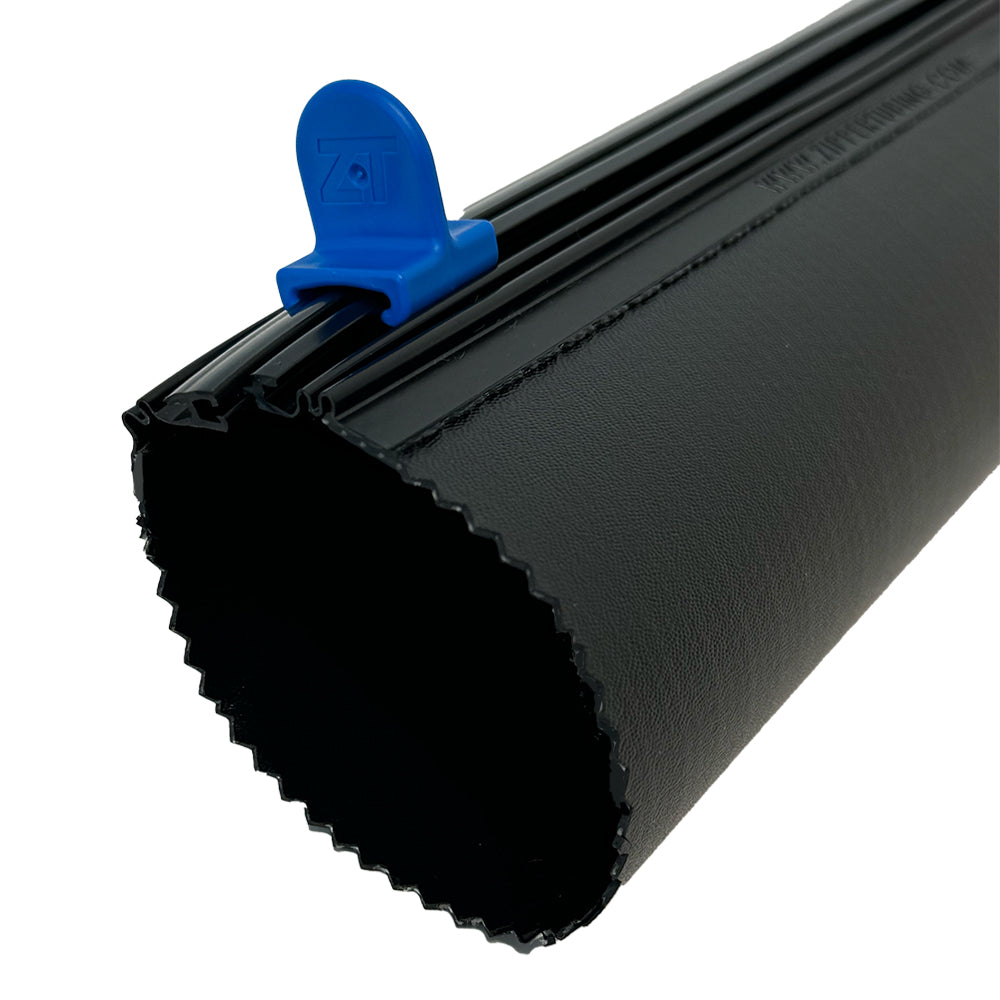

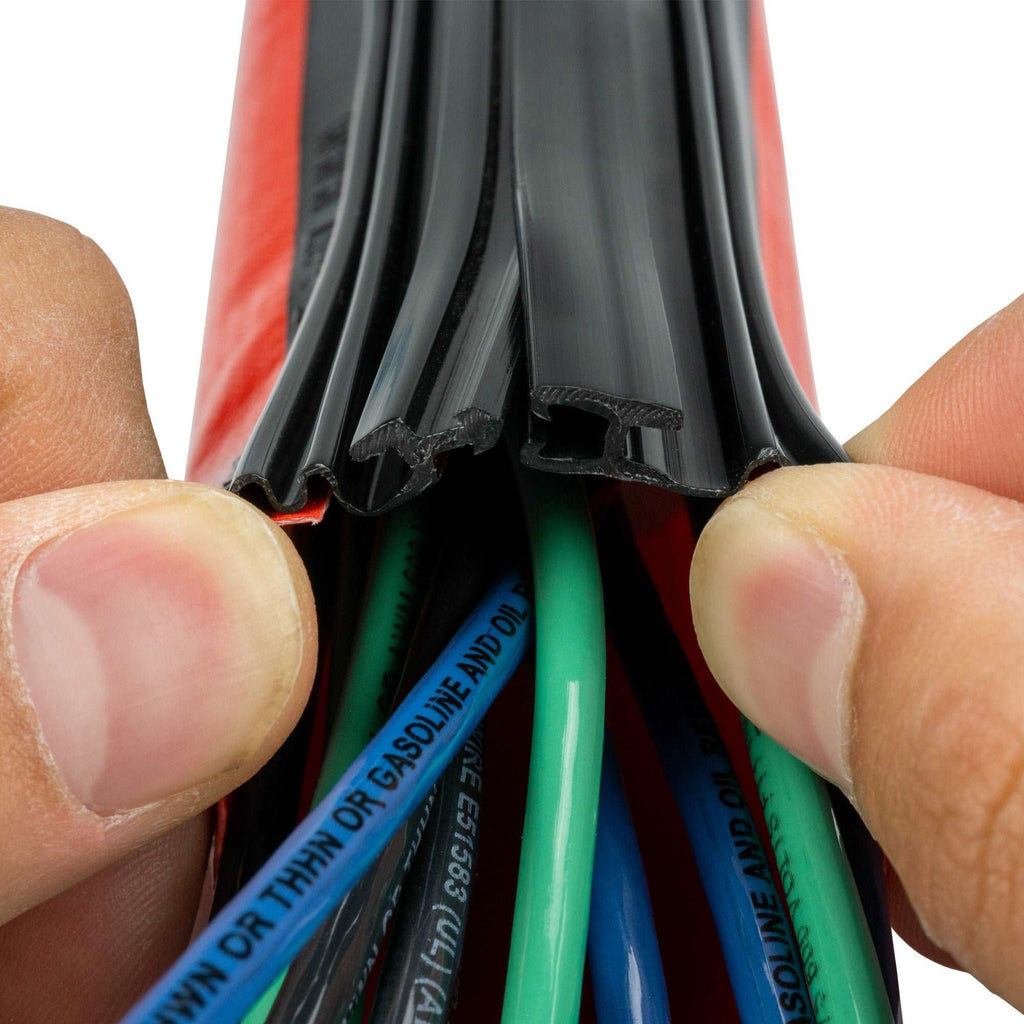

D-Track is a heavy duty PVC extruded pressure track that was specifically developed to provide a strong closure for all PVC based jacketing applications. D-Track when combined with a jacketing material is the ideal product to replace conventional, split tubing where cable bundles must be protected from the rugged environment faced by constant road use. This closure option keeps fluid and abrasive debris out of critical electrical circuitry and the patented expansion feature allows for cable growth as design changes occur. D-Track's design makes this closure practical, economical, and extremely easy to close. D-Track has an operating temperature range of -30°C to 105°C.

Specifications

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 350% (min)
  • Flame Retardant: UL94 V-0
  • Bundle Size: 1.0" or Larger
  • Height: High
  • Color: Black
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -22°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 14 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    D-Track (PVC) Extruded Pressure Track

    Externally Closed, PVC, Extruded Interlock

    Material Sprcification: 2017

    • Ideal For Truck & Bus Applications
    • Variable Expansion Range
    • Automotive Fluid Resistance
    • Flame Retardant
    • -30°C to 105°C Operational Limit
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 350% (min)
  • Flame Retardant: UL94 V-0
  • Bundle Size: 1.0" or Larger
  • Height: High
  • Color: Black
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -22°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 14 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • DESCRIPTION

    D-Track is a heavy duty PVC extruded pressure track that was specifically developed to provide a strong closure for all PVC based jacketing applications. D-Track when combined with a jacketing material is the ideal product to replace conventional, split tubing where cable bundles must be protected from the rugged environment faced by constant road use. This closure option keeps fluid and abrasive debris out of critical electrical circuitry and the patented expansion feature allows for cable growth as design changes occur. D-Track's design makes this closure practical, economical, and extremely easy to close. D-Track has an operating temperature range of -30°C to 105°C.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
