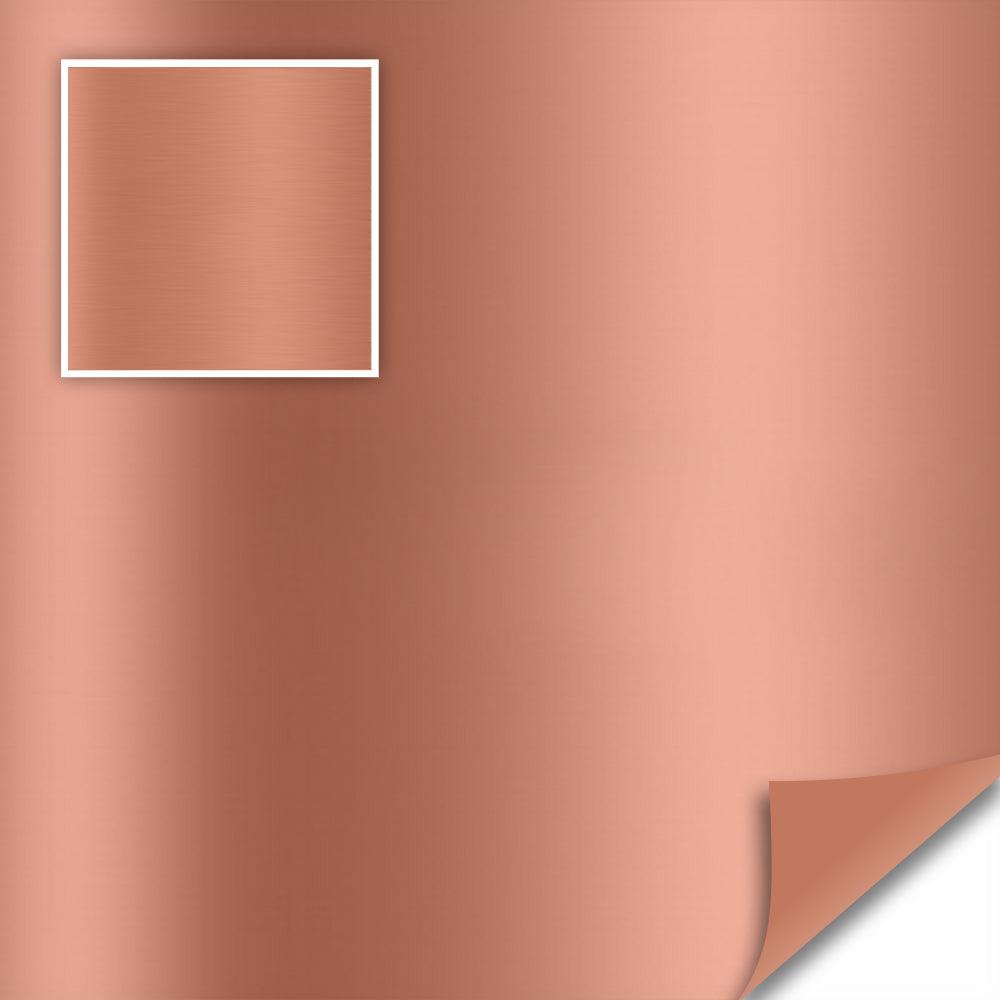

Cu (Copper Foil) - Polyester (PET) Film Backed Foil

Material Specification: 3006 UL Recognized RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Excellent corrosion resistance
  • EMI shielding properties for electrical components
  • Non flammable

Polyester PET film backed Copper foil (Cu) is a highly conductive, EMI shielding material, comprised of a bright finished copper foil laminate with a clear polyester PET film. This material offers a 28lb. breakage strength per inch-width.

The copper laminate foil is typically used as a salt corrosion resistant shield in military applications, however this material has also been used in aerospace and many other industries. The foil could be used as a wrap-around tape, or be used in conjunction with other materials to engineer a solution that will meet your particular EMI shielding needs.

Features

  • Operating temperature range of -22°F to 248°F
  • Perfect for a wide variety of military and aerospace applications.

Benefits

  • Salt corrosion resistant EMI shield for hardening electrical cables.

Specifications

  • Weight: 2.8 - 3.0 lbs/mft @ 1.0 inch-width
  • Break Strength: 28 lbs. /inch-width
  • REACH: Compliant
  • Electrical Resistance: 15 ohms/mft maximum
  • Dielectric Constant: 3.0 (PET film side)
  • Dielectric Strength: 2.0kV minimum (PET film side)
  • Elongation: 10% at break
  • Flammability: Not Flammable
  • Thickness: 0.0013"-0.0016"
  • Material: Copper Foil w/Polyester (PET) Film Backing
  • Maximum Operating Temperature: 248°F
  • Minimum Operating Temperature: -22°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shielding Effectiveness: Best
  • Thickness Width: 1.0" +/- 0.060"
  • Flexibility: Good
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    Cu (Copper Foil) - Polyester (PET) Film Backed Foil

    Material Sprcification: 3006

    • Excellent corrosion resistance
    • EMI shielding properties for electrical components
    • Non flammable
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Weight: 2.8 - 3.0 lbs/mft @ 1.0 inch-width
  • Break Strength: 28 lbs. /inch-width
  • REACH: Compliant
  • Electrical Resistance: 15 ohms/mft maximum
  • Dielectric Constant: 3.0 (PET film side)
  • Dielectric Strength: 2.0kV minimum (PET film side)
  • Elongation: 10% at break
  • Flammability: Not Flammable
  • Thickness: 0.0013"-0.0016"
  • Material: Copper Foil w/Polyester (PET) Film Backing
  • Maximum Operating Temperature: 248°F
  • Minimum Operating Temperature: -22°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shielding Effectiveness: Best
  • Thickness Width: 1.0" +/- 0.060"
  • Flexibility: Good
  • DESCRIPTION

    Polyester PET film backed Copper foil (Cu) is a highly conductive, EMI shielding material, comprised of a bright finished copper foil laminate with a clear polyester PET film. This material offers a 28lb. breakage strength per inch-width.

    The copper laminate foil is typically used as a salt corrosion resistant shield in military applications, however this material has also been used in aerospace and many other industries. The foil could be used as a wrap-around tape, or be used in conjunction with other materials to engineer a solution that will meet your particular EMI shielding needs.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
