Ceramic Fiber Blanket

Name: Ceramic Fiber Blanket
Brand: zippertubing
SKU: 1130
Availability: InStock

Insulating Mat made from High Temperature Aluminum Oxide and Silicon Dioxide

Material Specification: 1230 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Can withstand continuous temperatures of 2,192°F (1,200°C)
Short term thermal protection up to 3,200°F (1,760°C)
Extremely flexible and Incombustible
Excellent insulating performance
Can be combined with other insulating materials

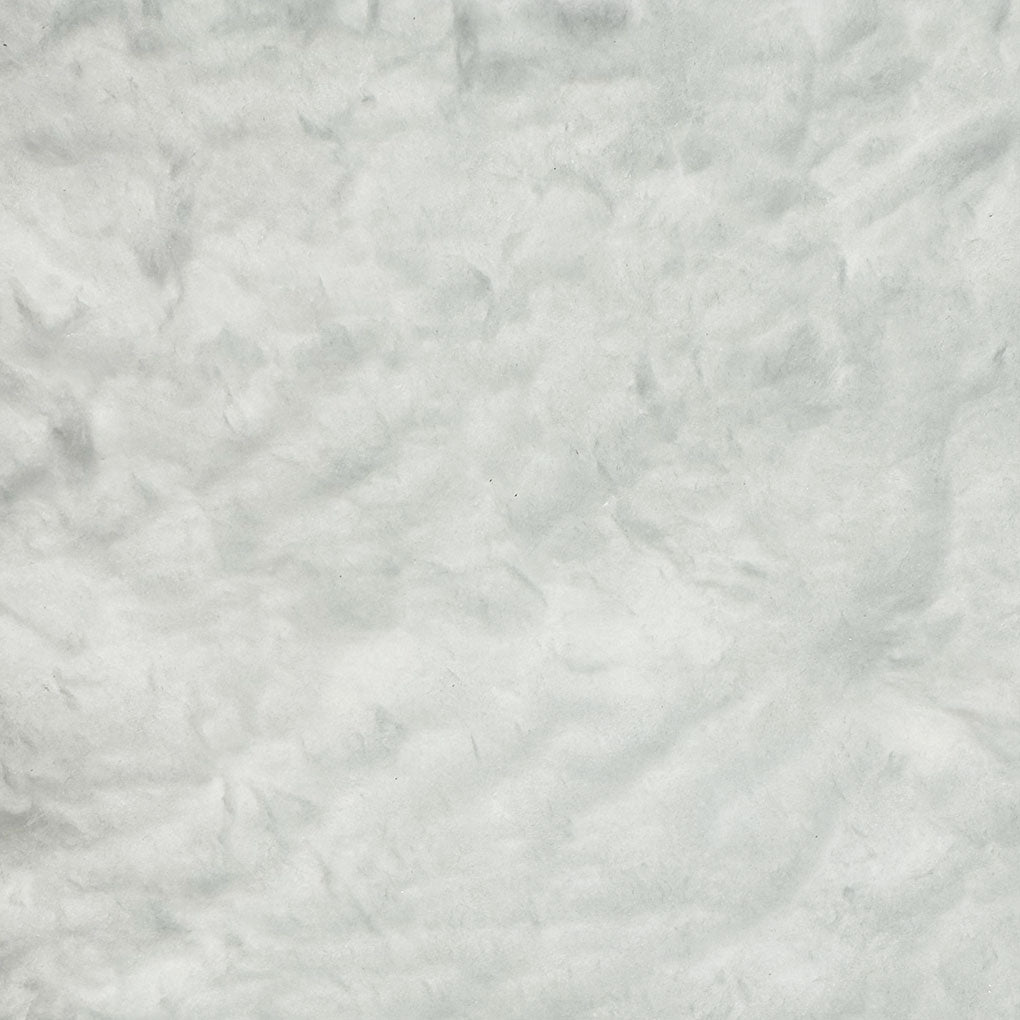

Ceramic Fiber Blanket is a thick insulating mat made of long, flexible interwoven ceramic fibers. These blankets are durable yet lightweight and can withstand extreme high temperatures. The low thermal conductivity and thickness makes this blanket ideal for high temperature applications where protection and insulation is necessary. Ceramic Fiber Blanket is well suited to be combined with other high temperature insulating materials to create protective insulating covers and protective solutions.

Specifications

Flammability: Self-extinguishing

Material: Aluminum Oxide and Silicon Dioxide

Color: White

Thickness: 1/8”, 1/4", 1/2", 1.0”

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Shelf Life: 60 Months

Temperature (Continuous): 2,192°F (1,200°C)

Temperature (Short Term): 3,200°F (1,760°C)

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Ceramic Fiber Blanket

Insulating Mat made from High Temperature Aluminum Oxide and Silicon Dioxide

Material Sprcification: 1130

Can withstand continuous temperatures of 2,192°F (1,200°C)
Short term thermal protection up to 3,200°F (1,760°C)
Extremely flexible and Incombustible
Excellent insulating performance
Can be combined with other insulating materials

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Flammability: Self-extinguishing

Material: Aluminum Oxide and Silicon Dioxide

Color: White

Thickness: 1/8”, 1/4", 1/2", 1.0”

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Shelf Life: 60 Months

DESCRIPTION

Ceramic Fiber Blanket is a thick insulating mat made of long, flexible interwoven ceramic fibers. These blankets are durable yet lightweight and can withstand extreme high temperatures. The low thermal conductivity and thickness makes this blanket ideal for high temperature applications where protection and insulation is necessary. Ceramic Fiber Blanket is well suited to be combined with other high temperature insulating materials to create protective insulating covers and protective solutions.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
