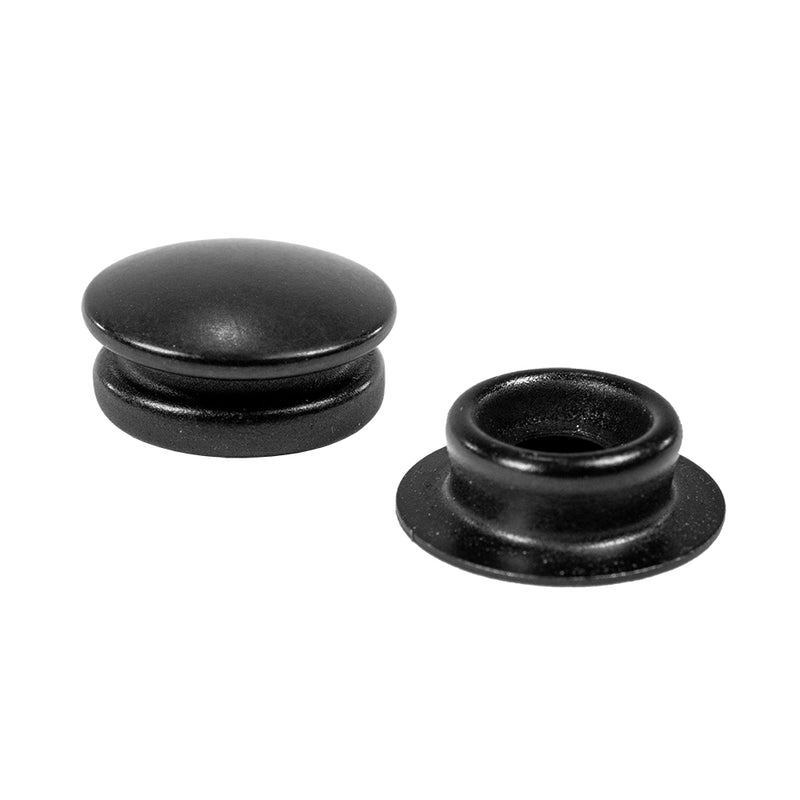

Blackened Brass Snaps - Heavy Gauge

Heavy-gauge, MIL-SPEC snap buttons made of a blackened brass.

Material Specification: 5401

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Military grade with meeting MIL-DTL-10884 and NASM27980, Style 2
  • Snap button closure allows for quick installation and easy re-entry
  • Can handle extremely low and high temperatures

The blackened brass snap buttons are made of MIL-SPEC brass sheet that meets MIL-DTL-10884 and NASM27980, Style 2. Installation of snap buttons only requires thumb pressure; no additional tools are needed. Utilizing the blackened brass snap buttons could allow for the Zippertubing® product to be cut to length between the spaces of the snaps. The brass snaps are an ideal closure system or attachment point for custom covers and wraps. The operational temperature range is -310°F to 800°F (-190°C to 427°C).

Specifications

  • Mil-Spec: MIL-DTL-10884 & NASM27980, Style 2
  • Closure: Snap
  • Color: Black
  • Material: Brass
  • Maximum Operating Temperature: 800°F
  • Minimum Operating Temperature: -310°F
  • Socket Outside Diameter: 0.56 in. (14.22 mm.)
  • Post Outside Diameter: 0.555 in. (14.1 mm.)
  • Stud Outside Diameter: 0.56 in. (14.22 mm.)
  • Button Outside Diameter: 0.6 in. (15.24 mm.)
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    Blackened Brass Snaps - Heavy Gauge

    Heavy-gauge, MIL-SPEC snap buttons made of a blackened brass.

    Material Sprcification: 5401

    • Military grade with meeting MIL-DTL-10884 and NASM27980, Style 2
    • Snap button closure allows for quick installation and easy re-entry
    • Can handle extremely low and high temperatures
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: MIL-DTL-10884 & NASM27980, Style 2
  • Closure: Snap
  • Color: Black
  • Material: Brass
  • Maximum Operating Temperature: 800°F
  • Minimum Operating Temperature: -310°F
  • Socket Outside Diameter: 0.56 in. (14.22 mm.)
  • Post Outside Diameter: 0.555 in. (14.1 mm.)
  • Stud Outside Diameter: 0.56 in. (14.22 mm.)
  • Button Outside Diameter: 0.6 in. (15.24 mm.)
  • DESCRIPTION

    The blackened brass snap buttons are made of MIL-SPEC brass sheet that meets MIL-DTL-10884 and NASM27980, Style 2. Installation of snap buttons only requires thumb pressure; no additional tools are needed. Utilizing the blackened brass snap buttons could allow for the Zippertubing® product to be cut to length between the spaces of the snaps. The brass snaps are an ideal closure system or attachment point for custom covers and wraps. The operational temperature range is -310°F to 800°F (-190°C to 427°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
