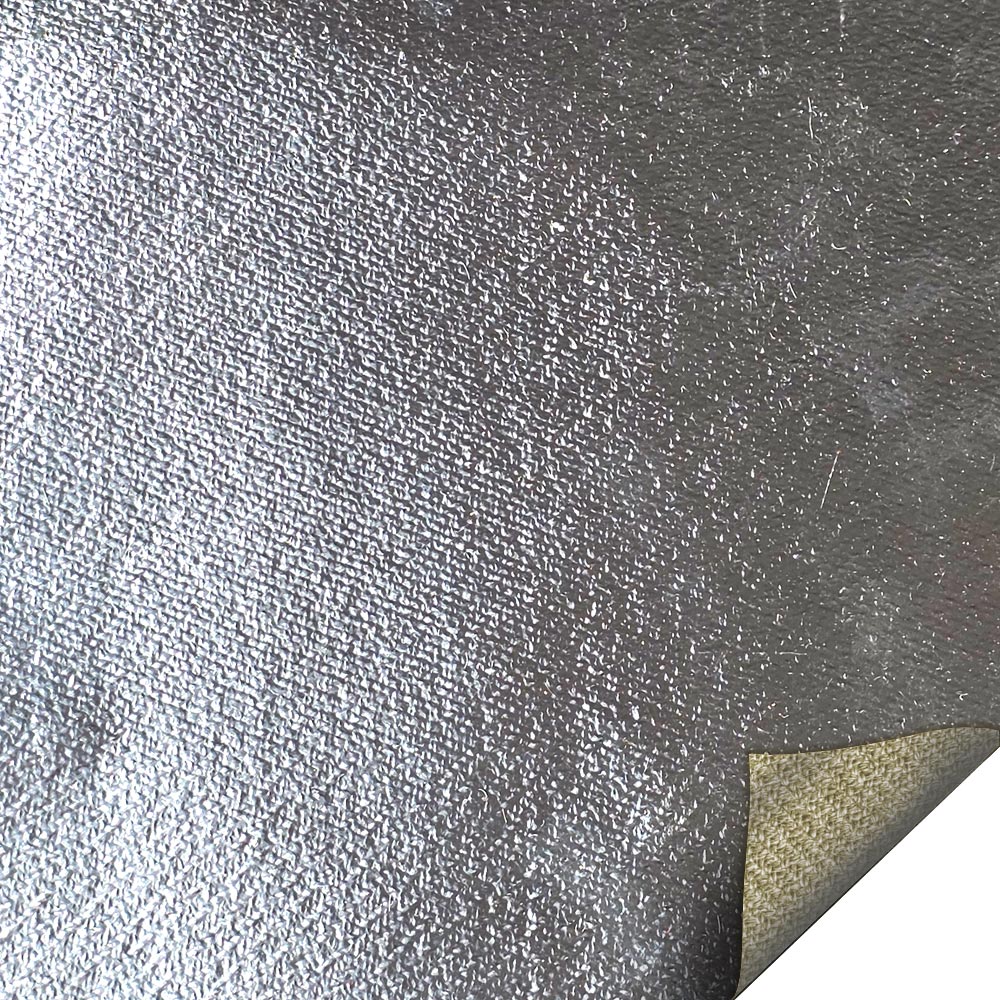

ACW-25 – Heat reflective carbon and aramid fabric

Name: ACW-25 – Heat reflective carbon and aramid fabric
Brand: zippertubing
Availability: InStock

Material Specification: 1238 RoHS

Overview

EN ISO 11612 Certified: A1 B1 C3 D3 E3 F1 for protective equipment
Flexible and soft carbon & aramid woven back-side
Excellent radiant heat protection and resistance to molten metal splash
Very flexible and durable aluminized front-side

ACW-25 is a medium weight aluminized protective fabric engineered for PPE and protective equipment used in environments with radiant heat and molten metal splash exposure. The material combines a flexible, durable aluminized front-side with a soft carbon and aramid woven back-side, providing excellent heat protection, flexibility, and durability without the stiffness often associated with fiberglass-based constructions. Certified to EN ISO 11612 with ratings of A1, B1, C4, D3, E3, and F1, ACW-25 is also REACH compliant and RoHS-10 compliant, with an operating temperature range of -40°F to 356°F (-40°C to 180°C). ACW-25 is a strong material choice for high-performance protective covers, shields, and PPE used in demanding thermal protection application.

Specifications

REACH: Compliant

Maximum Operating Temperature: 356°F

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Shelf Life: 60 Months

Flame Propagation: A1 (EN ISO 11612)

Convective Heat Resistance: B1 (EN ISO 11612)

Radiant Heat Resistance: C4 (EN ISO 11612)

Molten Aluminum Splash Resistance: D3 (EN ISO 11612)

Molten Steel Splash Resistance: E3 (EN ISO 11612)

Contact Heat Resistance: F1 (EN ISO 11612)

Thickness: 0.025”

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

ACW-25 – Heat reflective carbon and aramid fabric

Material Sprcification:

EN ISO 11612 Certified: A1 B1 C3 D3 E3 F1 for protective equipment
Flexible and soft carbon & aramid woven back-side
Excellent radiant heat protection and resistance to molten metal splash
Very flexible and durable aluminized front-side

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

REACH: Compliant

Maximum Operating Temperature: 356°F

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Shelf Life: 60 Months

DESCRIPTION

ACW-25 is a medium weight aluminized protective fabric engineered for PPE and protective equipment used in environments with radiant heat and molten metal splash exposure. The material combines a flexible, durable aluminized front-side with a soft carbon and aramid woven back-side, providing excellent heat protection, flexibility, and durability without the stiffness often associated with fiberglass-based constructions. Certified to EN ISO 11612 with ratings of A1, B1, C4, D3, E3, and F1, ACW-25 is also REACH compliant and RoHS-10 compliant, with an operating temperature range of -40°F to 356°F (-40°C to 180°C). ACW-25 is a strong material choice for high-performance protective covers, shields, and PPE used in demanding thermal protection application.
