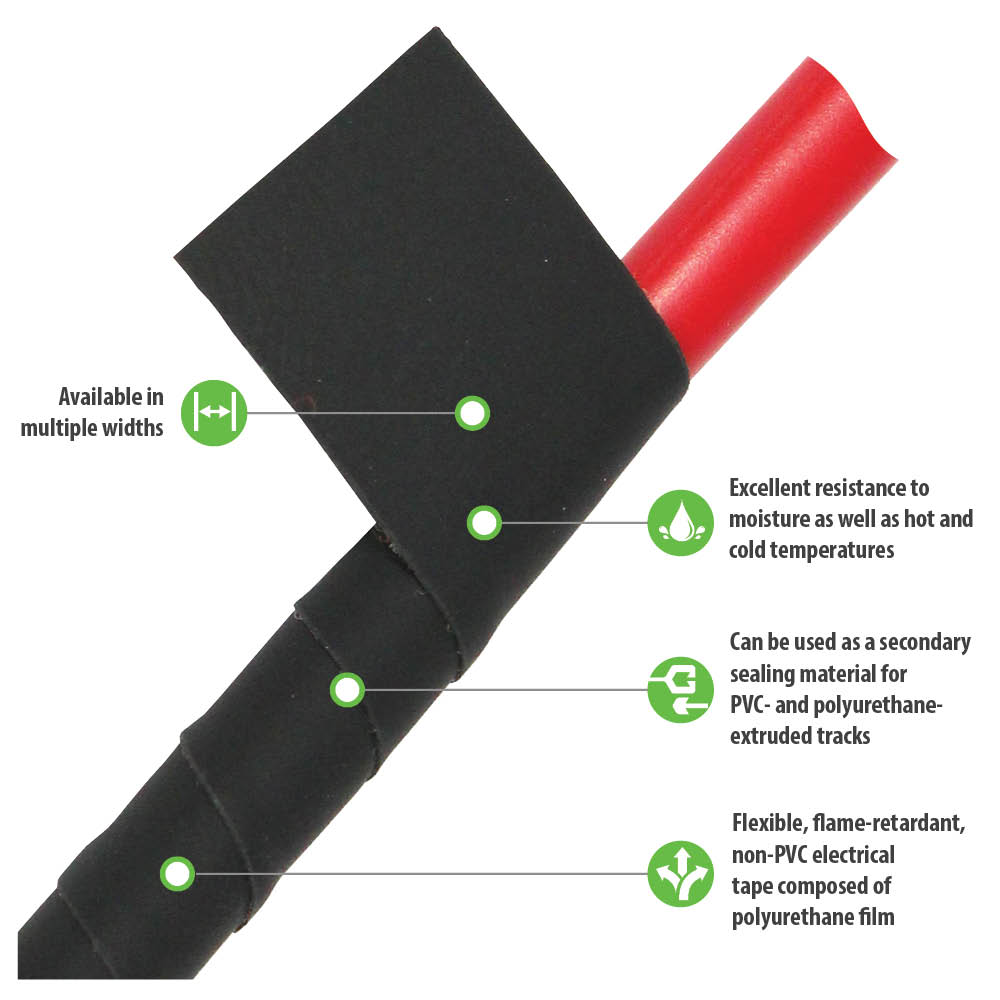

ZT-Tape® is a fire-retardant Polyurethane film electrical tape with a special pressure sensitive acrylic adhesive backing, an easy-to-remove paper release liner and is UL 510 recognized. The Polyurethane tape has excellent resistance to cold temperatures and is weather resistant. Use this tape for bundling and securing of wires and cables or any application requiring a flame retardant material with good dielectric strength, high- and low-temperature flexibility and resistance to moisture and outdoor conditions. ZT-Tape®is the perfect mate to Zippertubing's Z-Shield® family and PFR-18 Polyurethane jacketed materials. It also works well on all PVC-based materials. It can be used as a secondary sealing material for all PVC and Polyurethane extruded interlocking closure tracks.
Because of its dielectric and overall strength, ZT-Tape® can be used to cover, bundle, wrap and secure your wires or cables with ease.
ZT-Tape® is the perfect mate to Zippertubing's Z-Shield™ family and PFR-18 Polyurethane-jacketed materials. It can also be used as a secondary sealing material for all of Zippertubing’s PVC and Polyurethane extruded, interlocking-closure tracks.
|Material Thickness Variance||+/- 0.005"|
|Shelf Life||12 months|
|Maximum Operating Temperature||176 ° F (80 ° C )|
|Tensile Strength||32.5 lbs/in-width at break|
|Fluid Resistance||3g/100 sq/in. (24 hrs)|
|Minimum Operating Temperature||-58 ° F (-50 ° C )|
|Elongation||725% at break|
|Dielectric Strength||800 volts/mil|
Please contact us for custom needs. We have a solution for you!
|Shape of Installation||ALL|
|Tape Width||1.0" Wide 2.0" Wide Custom Size|
|Unit Length||108 ft. Roll 60 ft. Roll|
|Units Per Box||Single Roll 2 Roll Pack 3 Roll Pack|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitabilituriy for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.
