Zip-Mesh® is a flexible, easy-to-use EMI Shielding tape of two-ply, woven Tinned-Copper mesh, separated by either Aluminum or Copper polyester tape, with a self-adhesive material on one side. The material offers very low electrical resistance and is intended to compliment Zippertubing's "SH1" Foil and "SHX" Series of knitted wire mesh EMI Shields.
The tape allows joining of EMI-Shielded jacket sections at cable splices, branchouts and the transition to connector hardware. The standard tape width is 1.0 inch with other sizes available on a custom basis. This product has an operational temperature range of -40° to 175°C (-40° to 347°F).
|Minimum Operating Temperature||-40° F ( -40° C )|
|Maximum Operating Temperature||300° F ( 149° C )|
|Shape of Installation||ALL|
|Tape Width||1.0" Wide 2.0" Wide|
|Unit Length||16.4 ft. Roll|
|Shielding||36 AWG Wire Mesh|
|Units Per Box||2 Roll Pack|
|Ratings||ASTM B33-94, MS3304 Type 1|
|Electrical Resistance||936.51 ohms/lb @ 20C|
|Temperature Range||-55° to 204°C (-67° to 399.2°F)|
|Tensile Strength||.785 lbs|
|Wire Size||36 AWG|
|Openings Per Inch||10-13|
|Configuration||Single knitted tube, flattened|
|Adhesion||150 oz/in. (to steel)|
|Release Liner||Polycoated Paper Liner|
|Shear Strength||300 grams @ +149°C for > 10,000 minutes (Alum. to Steel)|
|Temperature||-40°C to 149°C Days/Weeks (-40°F to 300°F Days/Weeks) -40°C to 232°C Minutes/Hours (-40°F to 449°F Minutes/Hours)|
|Solvent Resistance||Very Good|
|Shelf-Life||12 months, unbonded (Zippertubing)|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.

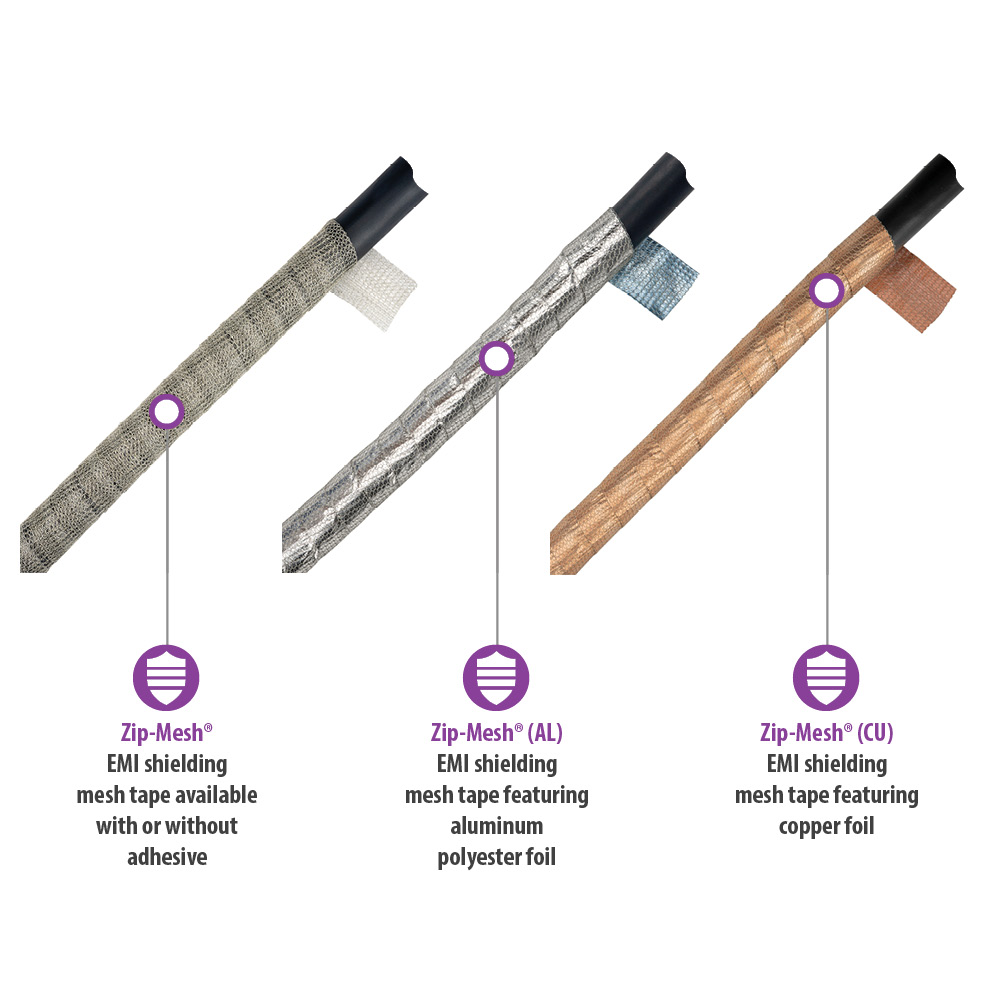

Zip-Mesh™ is a highly flexible, easy-to-use EMI shielding knitted-mesh tape comprised of two-ply, 36 AWG woven tinned-plated copper mesh with a high-temperature, solvent-resistant adhesive backing. The knitted mesh design creates a highly flexible shield that unlike many tubular braids will not change its attenuation performance when articulated.
Zip-Mesh™ knitted-mesh tape is ideal for applications where high flexibility in repair locations, splices, branch-outs, or transitions is needed. Although this product comes standard in 1.0” and 2.0” tape widths from our website, custom sizes, shapes and lengths are also available by contacting us directly.
Zippertubing’s Zip-Mesh™ is intended to complement Zipper-Mesh™ and other SHX knitted-mesh series products.
This product has an operational temperature range of -40° to 149°C (-40° to 300°F).
