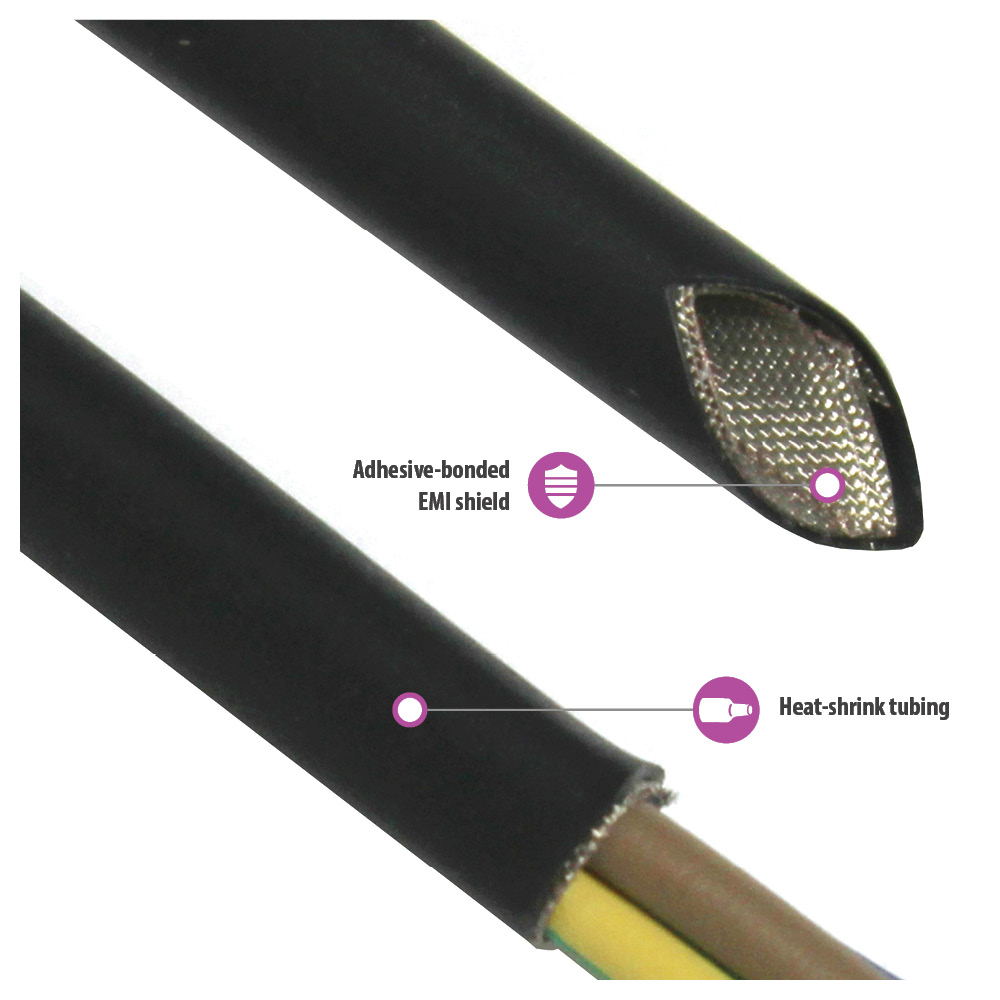

Shrink-N-Shield® combines two proven technologies into a single, easy-to-install product for adding EMI protection to smaller wire and cable bundles. Shrink-N-Shield® makes adding an EMI shield and secondary insulation jacket to wire or cable bundles a snap.
This product is supplied in four-foot-long sticks and has a length tolerance of +/- 1/2 inch. These products feature an adhesive-bonded Z-3250-CN EMI shield that provides excellent shielding (10 MHz to 20 GHz)
|Shape of Installation||Round|
|Diameter Before Shrinkage||0.1875" 0.25" 0.375" 0.5" 0.75" 1.0" 1.5"|
|Unit Length||4 ft. Sticks|
|Exterior Material||Polyolefin Heat Shrink|
|Base Fabric||Polyester Taffeta Fabric|
|Coating||Nickel Over Copper|
|Temperature Range||-40° to 121°C (-40° to 249.8°F)|
|Surface Resistivity||<0.1 ohms/sq|
|Tensile Strength||74-79 lbs/in|
|Dielectric Strength||500v/mil (after shrink)|
|Elongation||200% (after shrink)|
|Longitudinal Shrinkage||+/-5% (after heat recovery)|
|Material Thickness||0.035" - 0.055"|
|Temperature Range||-55° to 135°C (-67° to 275°F)|
|Shrink Temperature||90° to 121°C (194° to 250°F)|
|Tensile Strength||1500 psi. (after shrink)|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.
