Insuflect®

Insuflect® composite heat shielding extends the survivability of sensitive components in a world of ever increasing temperatures. Zippertubing® is a leading manufacturer of thermal protection sleeves and Jackets that provide a heat barrier designed to protect wiring, hoses, pipes or a variety of other components from radiant heat sources. We have the ability to produce custom shapes using a variety of heat reflective materials.

Insuflect® (650)

Drawing No. ZT07-08-009

Part No. ZT07-08-009-2.0

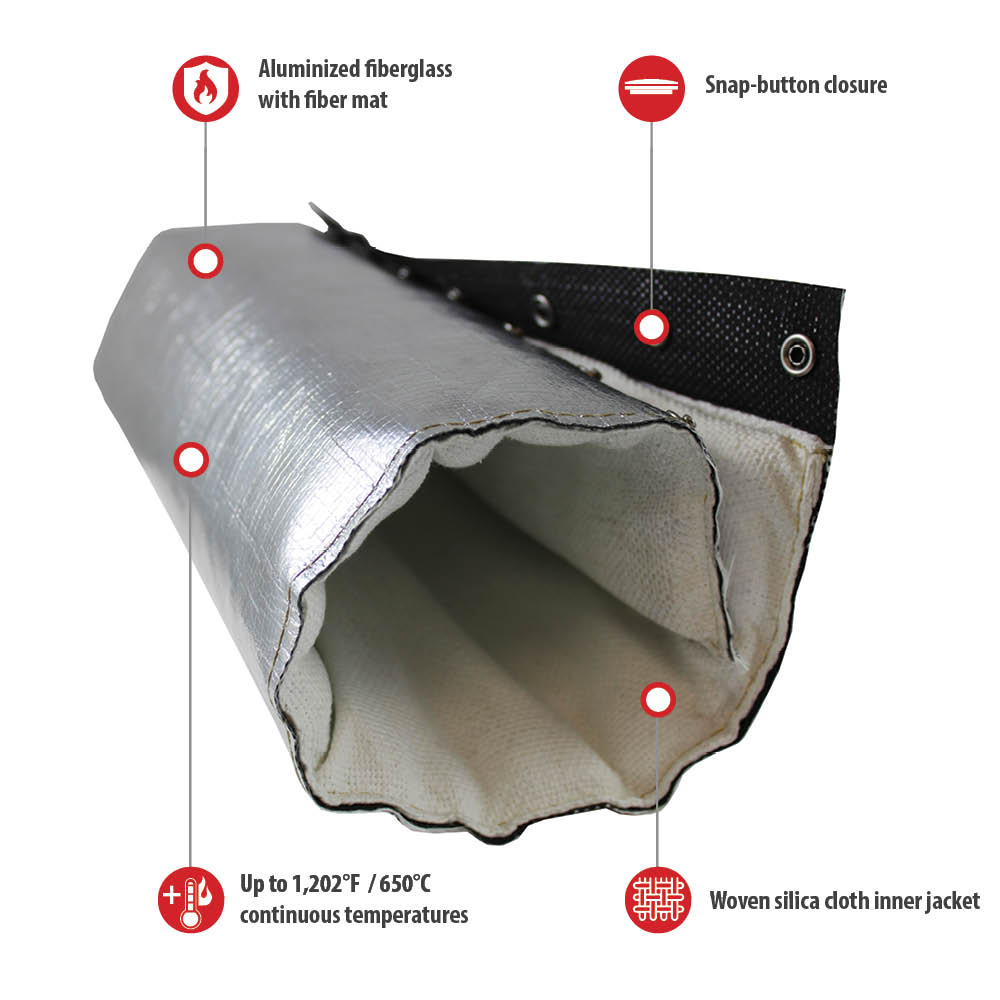

Aluminized Fiberglass with Fiber Mat and Woven Silica Cloth Inner Jackets, Up to 650°C

  • Ideal for Trucks and Buses on ATD's
  • Proven Effective for EPA-07
  • Durable and Effective
  • Custom Sizes and Shapes Available
  • 1,202° F (650° C) Operational Limit

Shape of Installation

Round

Choose Your Cable Diameter

Exterior Material

Closure

Inner Jacket

Quantity:

-+

Insuflect® is a composite heat-shielding product developed to be installed directly onto Diesel exhaust systems as part of the new “Clean Diesel Technology.” Insuflect® holds the heat within the system while Urea is injected to an exhaust reaction chamber resulting in an environmentally clean-burning Diesel engine.

Insuflect® can also be used to protect sensitive components that may be located in close proximity to high-temperature exhaust systems. This product is specifically designed for operational continuous temperatures up to 1,202°F (650°C) temperature range.

The material layers of Insuflect® are joined using Kevlar/Stainless Steel thread. This product is to be wrapped around a heat source and closes using Stainless Steel snap buttons.

Zippertubing is a leading manufacturer of thermal protection sleeves and jackets that provide a heat barrier designed to protect wiring, hoses, pipes or a variety of other components from radiant heat sources. We have the ability to produce custom shapes using a variety of heat-reflective materials.

  • Ideal for Commercial and Military Vehicles
  • Made in the USA
  • Custom Sizes and Shapes

Related Products

Product Specifications

Material Thickness 0.625"
Maximum Operating Temperature 1202 ° F (650 ° C )
Minimum Operating Temperature -40 ° F (-40 ° C )
Shelf Life 60 months
Composition Aluminized Fiberglass / Silica Glass (3 Layer Composite)
Flame Retardant Non-Flammable

Available Attributes

Please contact us for custom needs. We have a solution for you!

Shape of Installation Round
Choose Your Cable Diameter 2" 2.5" 3.0" 3.5" 4.0" 4.5" 5.0"
Exterior Material SAM-1000
Closure Stainless Steel Reinforced Kevlar Thread Stainless Steel Snaps
Inner Jacket Woven Silica Cloth

Material Specifications

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitabilituriy for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.
